1/2-5 Series

Manufacturer: 3M (TC)

Catalog

RF EMI SHIELDING TAPE 15' X 0.5"

Part	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Shelf Life	Shelf Life Start	Type	Width	Width	Adhesive	Thickness - Overall	Thickness - Overall	Material	Length	Length	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Color	Tape Type	Backing, Carrier	Length	Usage	Temperature Range [Min]	Temperature Range [Max]	Width	Thickness	Thickness	Thickness	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Outline [y]	Outline [x]	Thermal Conductivity	Shape	Thickness - Overall

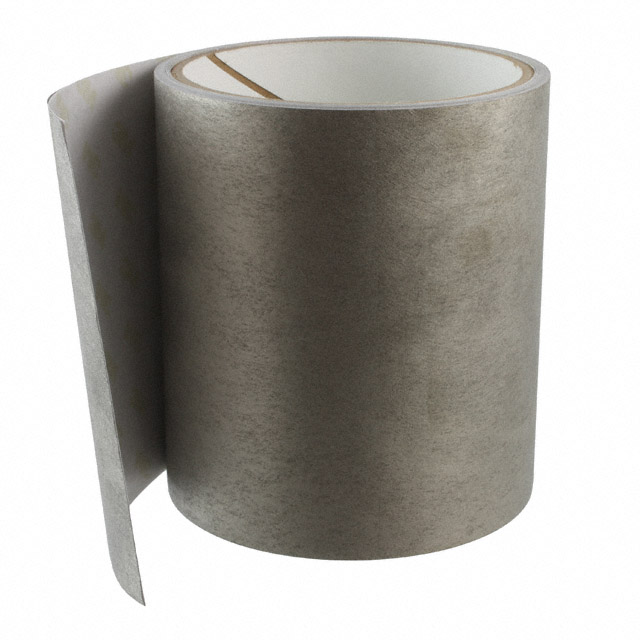

3M (TC) 1/2-5-CN3490	10 C	27 °C	10 C	80 °F	60 Months	Date of Manufacture	Shielding Tape	12.7 mm	0.5 in	Conductive Single Sided	0.002 in	0.06 mm	Nickel-Copper (NI/CU) Fabric	4.6 m	15 '

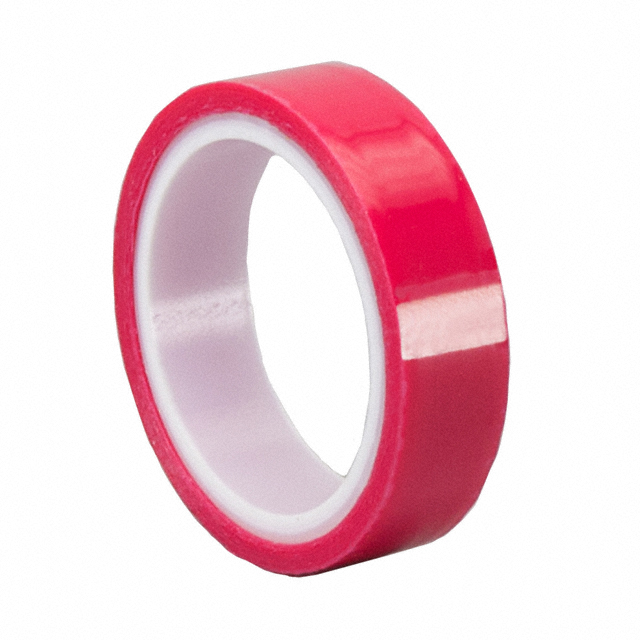

3M (TC) 1280-0.5-5	16 °C	27 °C	60 °F	80 °F	18 Months	Date of Manufacture		12.7 mm	0.5 in	Rubber				4.6 m	15 '	0.069 mm	2.7 mils	0.0027 in	Red	Electroplating	Polyester Film	5 yds	Masking Protection Sealing	-40 °C	155 °C	0.5 "	0.0036 in	0.091 mm	3.6 mils	0.023 mm	0.9 mils	0.0009 "

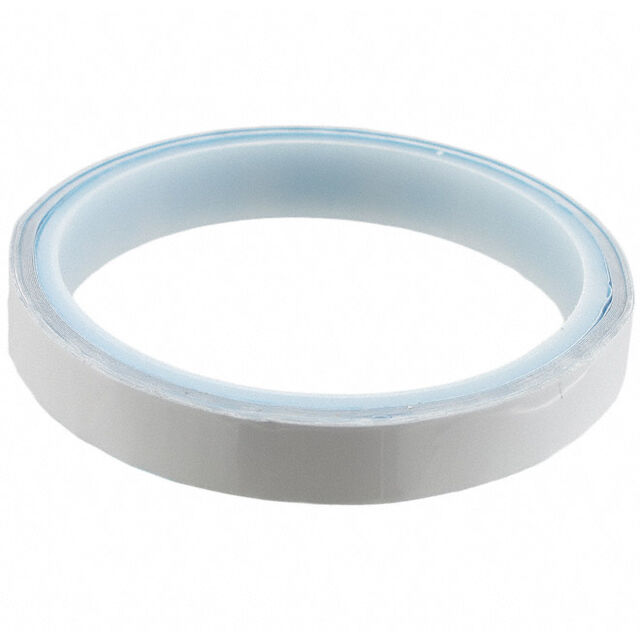

3M (TC) 8805-0.5-5					24 Months	Date of Manufacture	Transfer Tape Roll			Adhesive - Both Sides			Acrylic						White		Polyester						0.0049 "		0.125 mm				22 °C	72 °F	12.7 mm	4.57 m	0.6 W/m-K	Rectangular

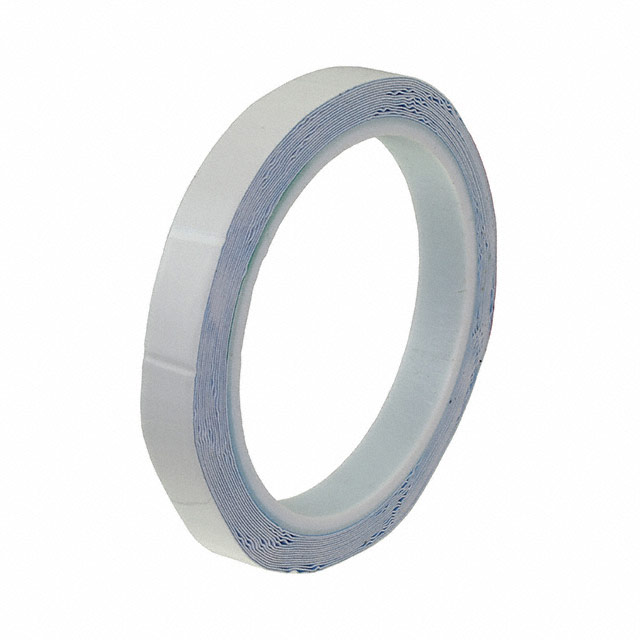

3M (TC) 8815-0.5-5					24 Months	Date of Manufacture	Transfer Tape Roll			Adhesive - Both Sides			Acrylic						White		Polyester						0.0148 "		0.375 mm				22 °C	72 °F	12.7 mm	4.57 m	0.6 W/m-K	Rectangular

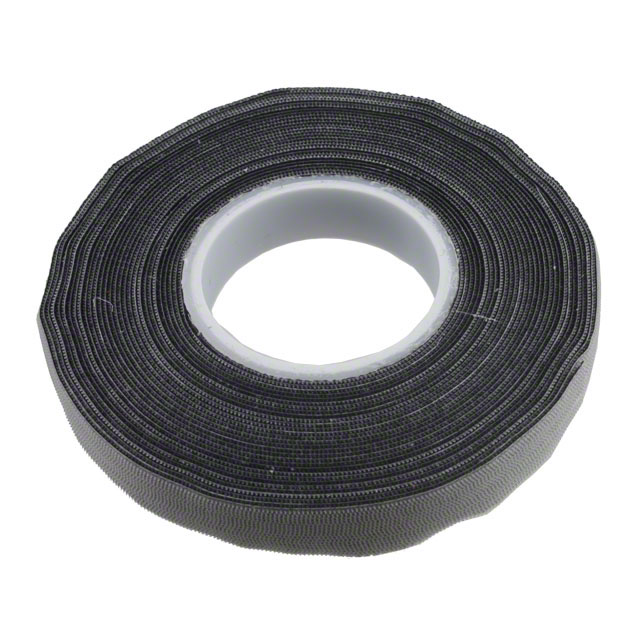

3M (TC) SJ3000-0.5-5					24 Months		Hook and Loop	12.7 mm	0.5 in				Polyester Loop Polypropylene (PP) Hook	1.52 m	60 in				Black																			Rectangular

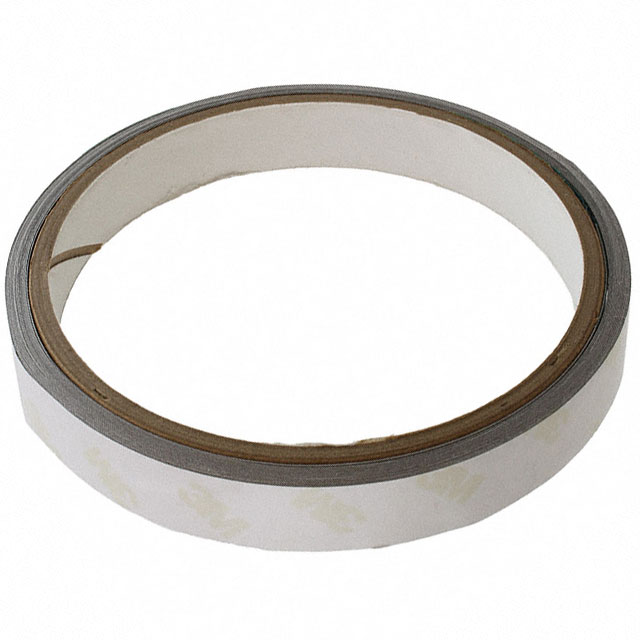

3M (TC) 1/2-5-CN4490	10 C	27 °C	10 C	80 °F	60 Months	Date of Manufacture	Shielding Tape	12.7 mm	0.5 in	Conductive Single Sided		0.05 mm	Nickel-Copper (NI/CU) Fabric	4.6 m	15 '																								0.002 in

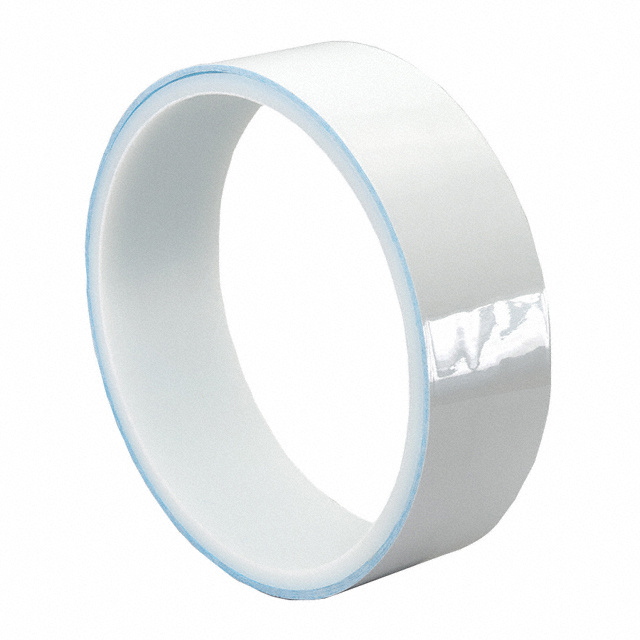

3M (TC) 8810-0.5-5					24 Months	Date of Manufacture	Transfer Tape Roll			Adhesive - Both Sides			Acrylic						White		Polyester												22 °C	72 °F	12.7 mm	4.57 m	0.6 W/m-K	Rectangular
