MAX20336 Series

Catalog

EVAL DPST SWITCH MAX20336

Part	Function	Supplied Contents	Primary Attributes	Utilized IC / Part	Secondary Attributes	Type	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	On-State Resistance (Max) [Max]	Multiplexer/Demultiplexer Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Switch Circuit	Number of Circuits	Crosstalk	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Current - Leakage (IS(off)) (Max) [Max]	Voltage - Supply, Single (V+) [Max]	Voltage - Supply, Single (V+) [Min]	-3db Bandwidth	Mounting Type	Channel-to-Channel Matching (ΔRon)	Switch Time (Ton, Toff) (Max)	Package / Case

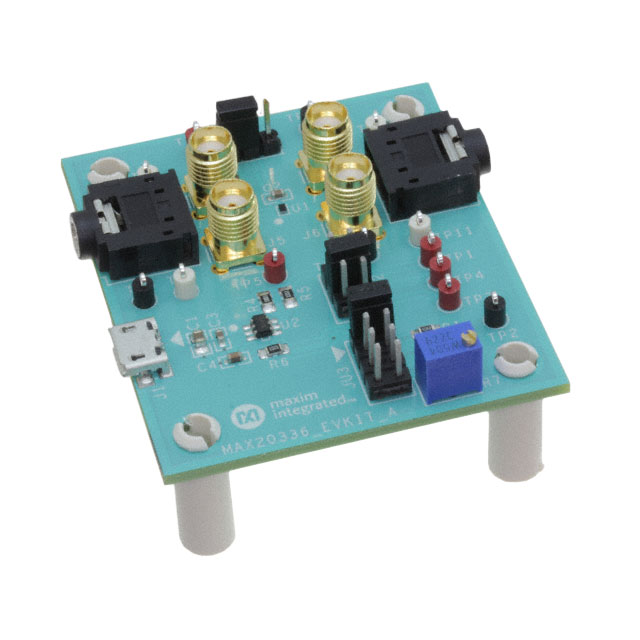

Analog Devices Inc./Maxim Integrated MAX20336EVKIT#	Analog Switch	Board(s)	1 x DPDT Switch	MAX20336	On-Board Test Points	Interface

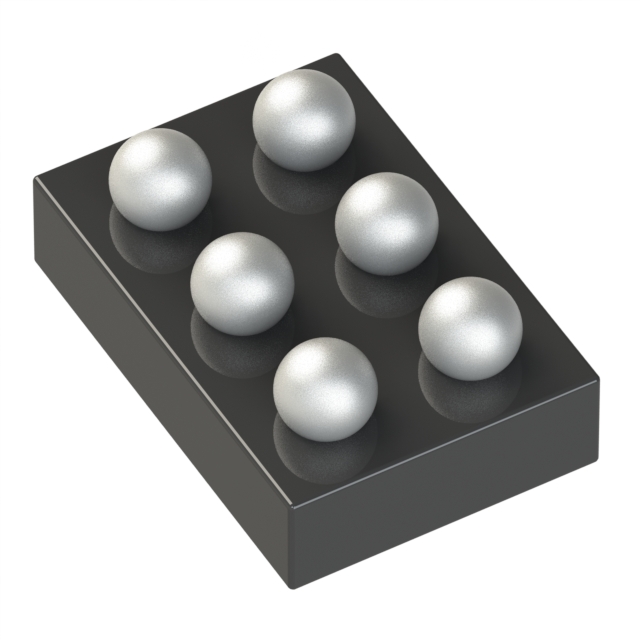

Analog Devices Inc./Maxim Integrated MAX20336ENT+T							14 pF	14 pF	330 mOhm	2:1	85 °C	-40 °C	DPST	1	-85 dB	6-WLP	1.31	0.83	100 nA	5.5 V	1.6 V	270 MHz	Surface Mount	3 mOhm	1.7 ms 13.5 ms	6-XFBGA WLBGA
Analog Devices Inc./Maxim Integrated MAX20336ENT+							14 pF	14 pF	330 mOhm	1:1	85 °C	-40 °C	DPST	1	-85 dB	6-WLP	1.31	0.83	100 nA	5.5 V	1.65 V	270 MHz	Surface Mount	3 mOhm	1.7 ms 13.5 ms	6-XFBGA WLBGA
