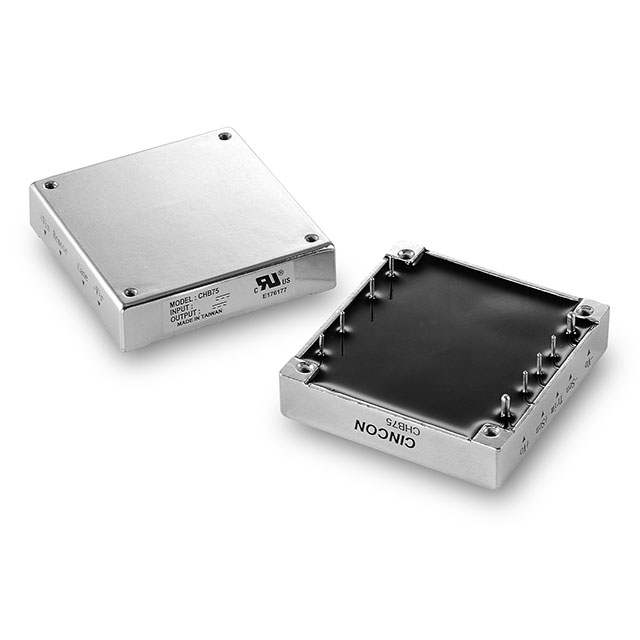

CHB75 Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

DC DC CONVERTER 24V 75W

Part	Voltage - Input (Min) [Min]	Type	Voltage - Output 1	Features	Voltage - Isolation	Mounting Type	Approval Agency	Standard Number	Voltage - Input (Max) [Max]	Efficiency	Power (Watts)	Supplier Device Package	Applications	Control Features	Package / Case	Number of Outputs	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max)	DC Voltage - Input (Min) [Min]	Input Type	DC Voltage - Input (Max) [Max]
Cincon Electronics Co. LTD CHB75W-48S24	18 V	Isolated Module	24 V	OCP OTP OVP Remote On/Off SCP UVLO	1.5 kV	Through Hole	CE cURus	60950-1	75 V	85 %	75 W	Half Brick	ITE (Commercial)	Active High Enable	Half Brick	1	3.12 A	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	-40 °C	100 °C
Cincon Electronics Co. LTD CHB75-24S15N	18 V	Isolated Module	15 V	OCP OTP OVP Remote On/Off SCP UVLO	1.5 kV	Through Hole	CE cURus	60950-1	36 V	88 %	75 W	Half Brick	ITE (Commercial)	Active Low Enable	Half Brick	1		57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	-40 °C	100 °C	5 A
Cincon Electronics Co. LTD CHB75W-24S28-DIN			28 V	Adjustable Output Remote On/Off Remote Sense	1.5 kV		CE cURus			84 %	75 W		ITE (Commercial)			1	2.67 A	2.54 in 64.6 mm				3.98 in 101.2 mm	1.03 " 26.2 mm	-40 °C	100 °C		9 V	DC	36 V
Cincon Electronics Co. LTD CHB75W-24S24N	9 V	Isolated Module	24 V	OCP OTP OVP Remote On/Off SCP UVLO	1.5 kV	Through Hole	CE cURus	60950-1	36 V	84 %	75 W	Half Brick	ITE (Commercial)	Active Low Enable	Half Brick	1	3.12 A	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	-40 °C	100 °C
Cincon Electronics Co. LTD CHB75W-24S15	9 V	Isolated Module	15 V	OCP OTP OVP Remote On/Off SCP UVLO	1.5 kV	Through Hole	CE cURus	60950-1	36 V	84 %	75 W	Half Brick	ITE (Commercial)	Active High Enable	Half Brick	1		57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	-40 °C	100 °C	5 A
Cincon Electronics Co. LTD CHB75-48S12	36 V	Isolated Module	12 V	OCP OTP OVP Remote On/Off SCP UVLO	1.5 kV	Through Hole	CE cURus	60950-1	75 V	89 %	75 W	Half Brick	ITE (Commercial)	Active High Enable	Half Brick	1	6.25 A	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	-40 °C	100 °C
Cincon Electronics Co. LTD CHB75-48S15	36 V	Isolated Module	15 V	OCP OTP OVP Remote On/Off SCP UVLO	1.5 kV	Through Hole	CE cURus	60950-1	75 V	88 %	75 W	Half Brick	ITE (Commercial)	Active High Enable	Half Brick	1		57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	-40 °C	100 °C	5 A
Cincon Electronics Co. LTD CHB75-12S33	9 V	Isolated Module	3.3 V	OCP OTP OVP Remote On/Off SCP UVLO	1.5 kV	Through Hole	CE cURus	60950-1	18 V	78 %	50 W	Half Brick	ITE (Commercial)	Active High Enable	Half Brick	1	15 A	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	-40 °C	100 °C
Cincon Electronics Co. LTD CHB75W-24S12-DIN			12 V	Adjustable Output Remote On/Off Remote Sense	1.5 kV		CE cURus			83 %	75 W		ITE (Commercial)			1	6.25 A	2.54 in 64.6 mm				3.98 in 101.2 mm	1.03 " 26.2 mm	-40 °C	100 °C		9 V	DC	36 V

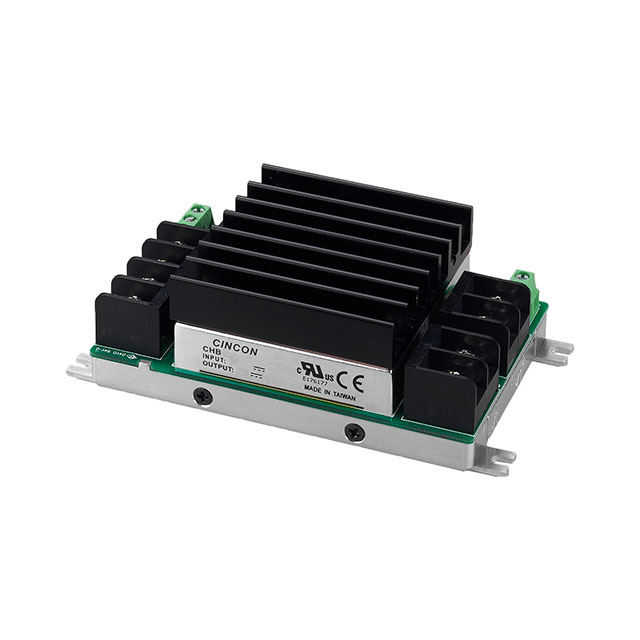

Cincon Electronics Co. LTD CHB75W-48S33-CM	18 V	Enclosed	3.3 V		1.5 kV	Chassis Mount	CE cURus		75 V	80 %	50 W		ITE (Commercial)			1	15 A	2.54 in 64.6 mm				3.98 in 101.2 mm	1.03 " 26.2 mm	-40 °C	100 °C
