NN03 Series

Manufacturer: Ignion

Catalog

TRIO MXTEND MULTIBAND ANTENNA

Part	Height (Max)	Mounting Type	Frequency Range (Min)	Frequency Range (Max)	RF Family/Standard	Antenna Type	Gain	VSWR	Applications	Frequency (Center/Band)	Frequency (Center/Band) - 15	Frequency (Center/Band) - 6	Frequency (Center/Band) - 19	Frequency (Center/Band) - 5	Frequency (Center/Band) - 2	Frequency (Center/Band) - 10	Frequency (Center/Band) - 13	Frequency (Center/Band) - 12	Frequency (Center/Band) - 3	Frequency (Center/Band) - 17	Frequency (Center/Band) - 7	Frequency (Center/Band) - 1	Frequency (Center/Band) - 14	Frequency (Center/Band) - 4	Frequency (Center/Band) - 8	Frequency (Center/Band) - 18	Frequency (Center/Band) - 11	Frequency (Center/Band) - 16	Frequency (Center/Band) - 9	Termination	Frequency Group	Number of Bands

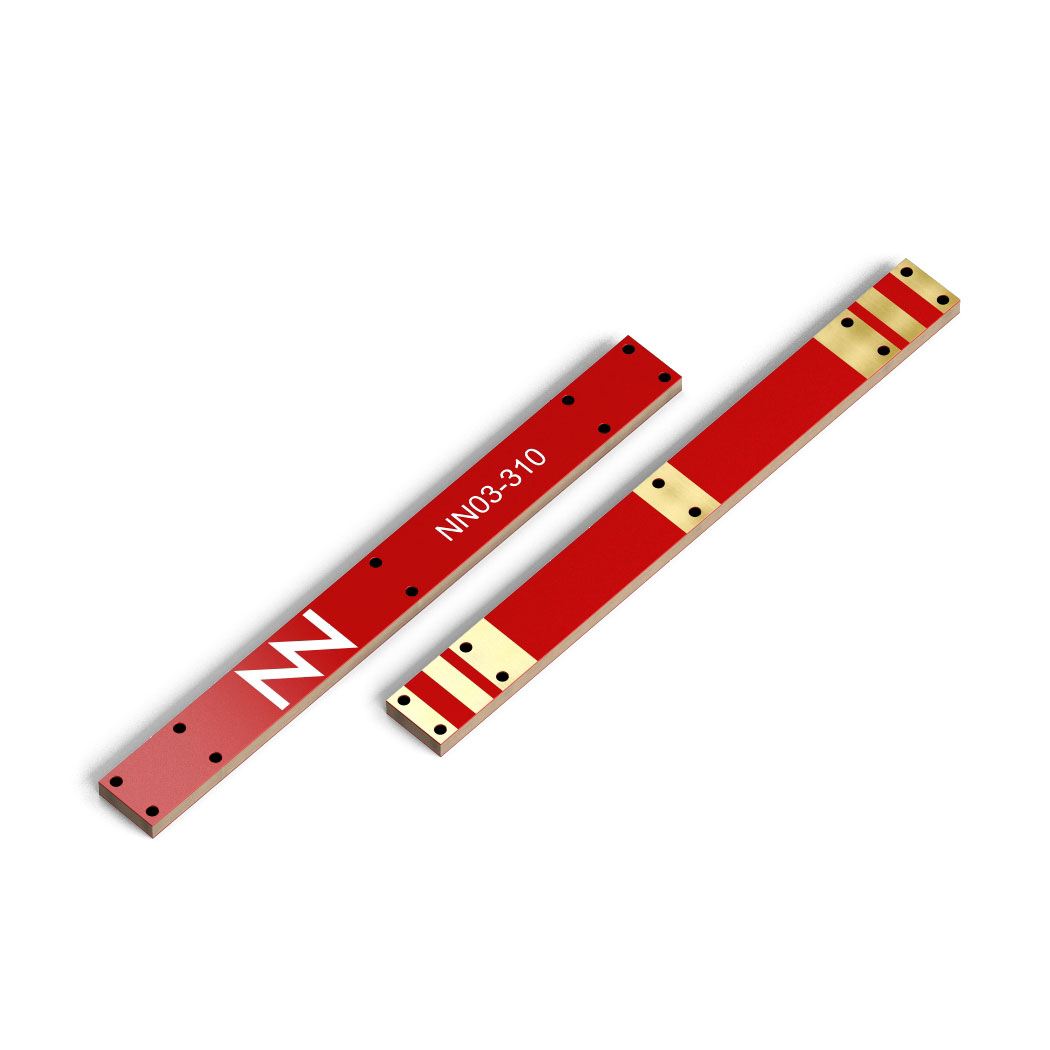

Ignion NN03-310	0.039 in	Surface Mount	400 MHz 698 MHz	8 GHz 3800 MHz	Bluetooth Cellular Navigation WiFi	Chip	0.4 dBi 0.9 dBi 1.9 dBi 2.4 dBi 3.8 dBi	3	2G 2G/3G/4G/5G 3G 4G 5G 802.11b/g/n/a/ac/ax BEIDOU Bluetooth DCS Galileo GLONASS GNSS GPS GSM ISM LoRa LTE NB-IoT PCS Thread UMTS UWB Wi-Fi Wi-SUN WLAN Z-Wave ZigBee	1.561GHz 1.575GHz 1.602GHz 1.606GHz 1.7GHz 1.85GHz 1.8GHz 1.94GHz 1.9GHz 2.1GHz 2.2GHz 2.3GHz 2.45GHz 2.5GHz 2.6GHz 2GHz 3.5GHz 3.6GHz 3.7GHz 3.8GHz 4.15GHz 450MHz 5.502GHz 6.525GHz 634.5MHz 700MHz 707MHz 8.3GHz 800MHz 829MHz 850MHz 892MHz 900MHz	3.6 GHz	892 MHz	8.3 GHz	829 MHz	634.5 MHz	1.602 GHz	2.2 GHz	1.94 GHz	707 MHz	5.502 GHz	900 MHz	450 MHz	2.45 GHz	800 MHz	1.561 GHz	6.525 GHz	1.85 GHz	4.15 GHz	1.575 GHz	Solder	Ultra Wide Band	12
Ignion NN03-320	0.079 in	Surface Mount	1.56 GHz	10.6 GHz	Bluetooth Cellular Navigation WiFi	Chip	-1.1 dBi 1.1 dBi 1.6 dBi 1.8 dBi 2.3 dBi 2.6 dBi 3.6 dBi 4.1 dBi	2.5	5G 802.11b/g/n/a/ac/ax BEIDOU Bluetooth BT Galileo GLONASS GNSS GPS UWB Wi-Fi	1.561GHz 1.575GHz 1.602GHz 1.606GHz 10.3GHz 2.45GHz 3.4GHz 3.5GHz 3.7GHz 4.0GHz 4.5GHz 4GHz 5.0GHz 5.5GHz 5GHz 6.1GHz 6.6GHz 7.1GHz 7.7GHz 8.2GHz 8.7GHz 9.2GHz 9.8GHz																				Solder	Ultra Wide Band	3
