392-027 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
| Part | Material - Insulation | Termination Rows | Contact Material | Number of Positions/Bay/Row | Color | Contact Finish | Pitch | Pitch | Card Type | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Read Out | Number of Positions | Mounting Type | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Card Thickness [Max] | Card Thickness [Min] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

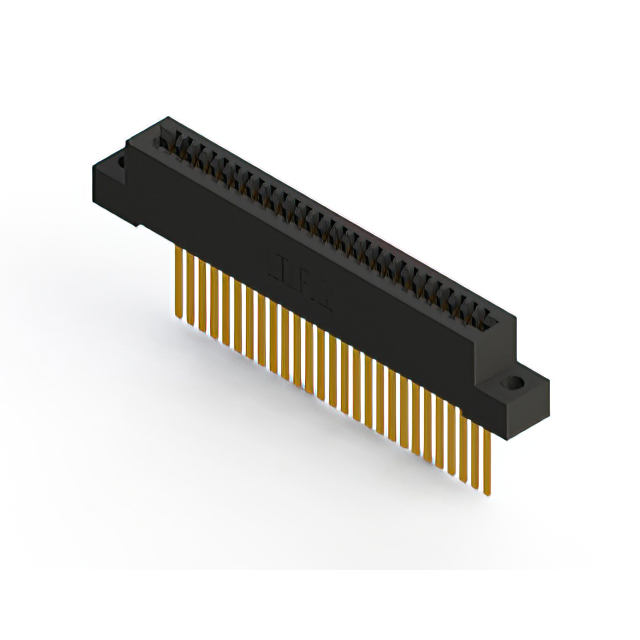

 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | 27 | Black | Gold | 0.1 " | 2.54 mm | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 1 | Single | 27 | Through Hole | Female | -40 C | 105 ░C | Cantilever | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap |

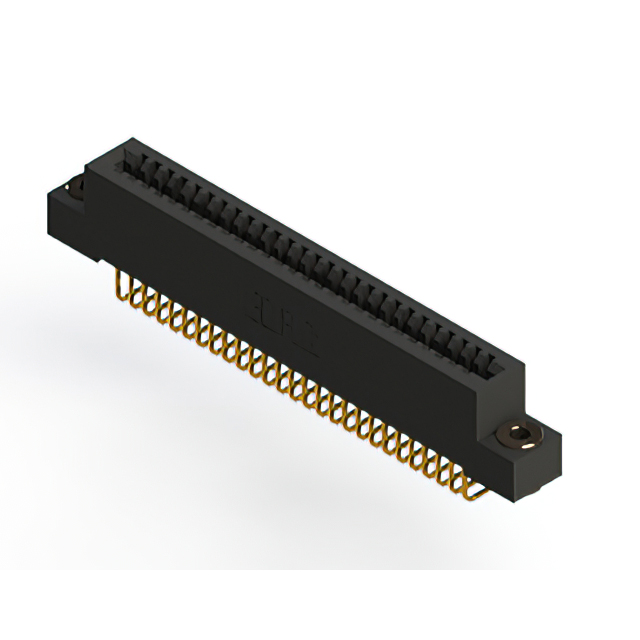

 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | 27 | Black | Gold | 0.1 " | 2.54 mm | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 1 | Single | 27 | Right Angle Through Hole | Female | -40 C | 105 ░C | Cantilever | Floating Bobbin Flush Mount | 2.95 mm | 0.116 " | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder Wire Wrap |

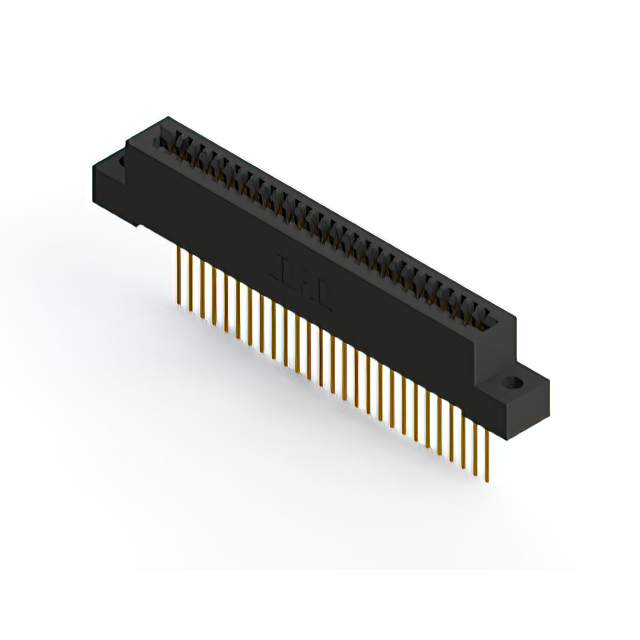

 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | 27 | Black | Gold | 0.1 " | 2.54 mm | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 1 | Single | 27 | Through Hole | Female | -40 C | 105 ░C | Cantilever | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 " | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap |

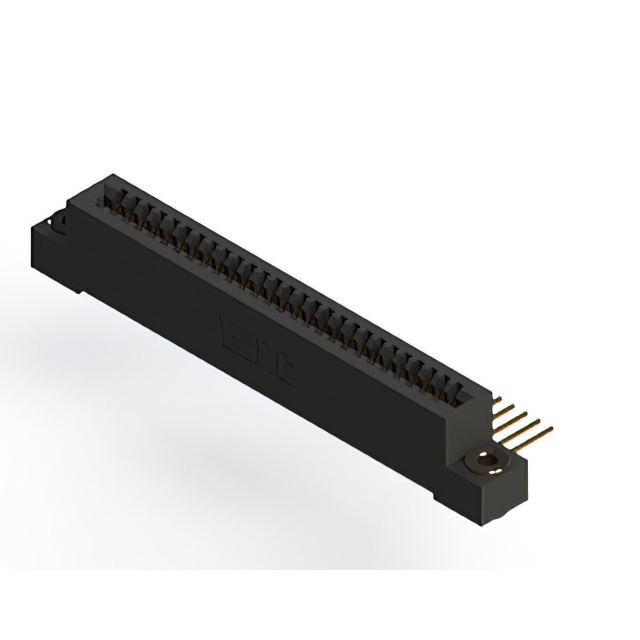

 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | 27 | Black | Gold | 0.1 " | 2.54 mm | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 1 | Single | 27 | Right Angle Through Hole | Female | -40 C | 105 ░C | Cantilever | Flush Mount M3 Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder Wire Wrap | ||

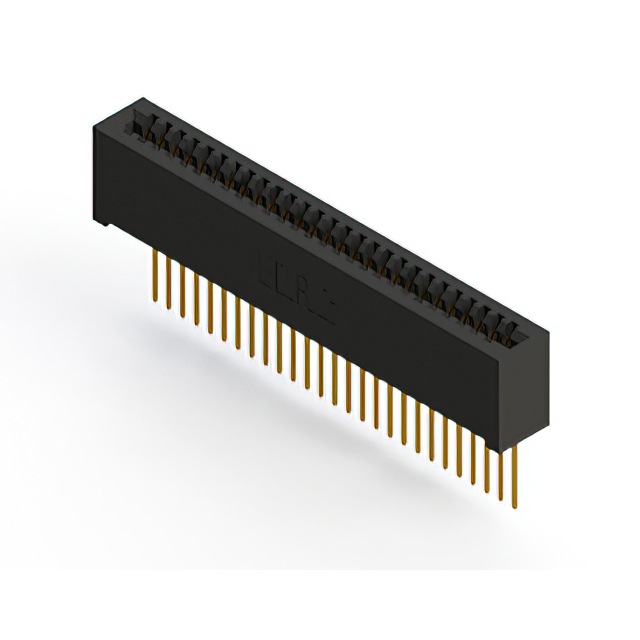

 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | 27 | Black | Gold | 0.1 " | 2.54 mm | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 1 | Single | 27 | Through Hole | Female | -40 C | 105 ░C | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | |||

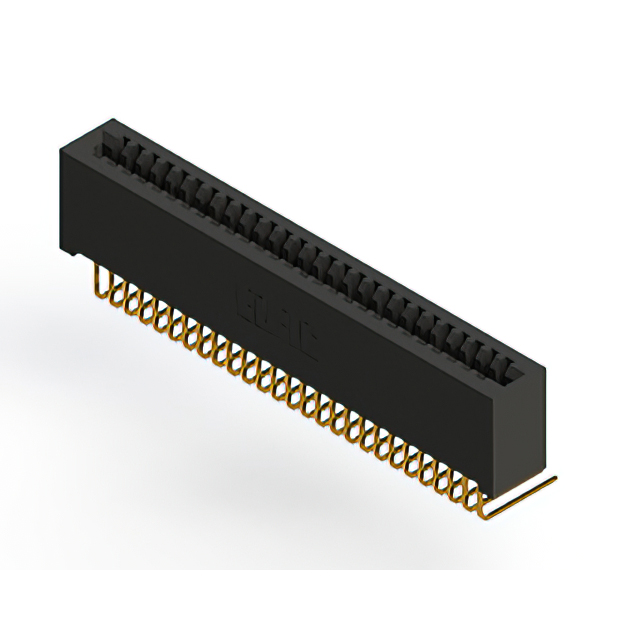

 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | 27 | Black | Gold | 0.1 " | 2.54 mm | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 1 | Single | 27 | Right Angle Through Hole | Female | -40 C | 105 ░C | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder Wire Wrap | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | 27 | Black | Gold | 0.1 " | 2.54 mm | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 1 | Single | 27 | Through Hole | Female | -40 C | 105 ░C | Cantilever | Flush Mount M3 Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | 27 | Black | Gold | 0.1 " | 2.54 mm | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 1 | Single | 27 | Through Hole | Female | -40 C | 105 ░C | Cantilever | Floating Bobbin Flush Mount | 2.95 mm | 0.116 " | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap |

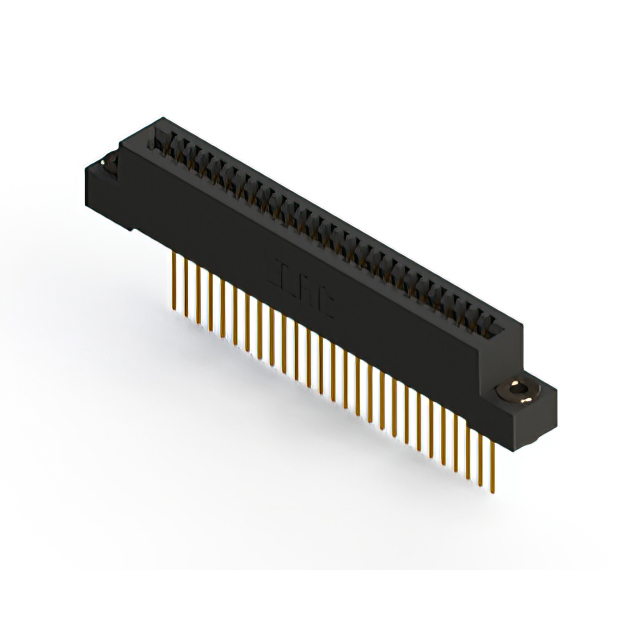

 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | 27 | Black | Gold | 0.1 " | 2.54 mm | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 1 | Single | 27 | Through Hole | Female | -40 C | 105 ░C | Cantilever | Flush Mount M3 Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | 27 | Black | Gold | 0.1 " | 2.54 mm | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 1 | Single | 27 | Through Hole | Female | -40 C | 105 ░C | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder |
