9842 Series
Manufacturer: Belden Inc.
Beta
⌘K

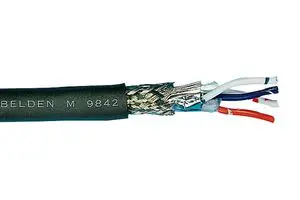

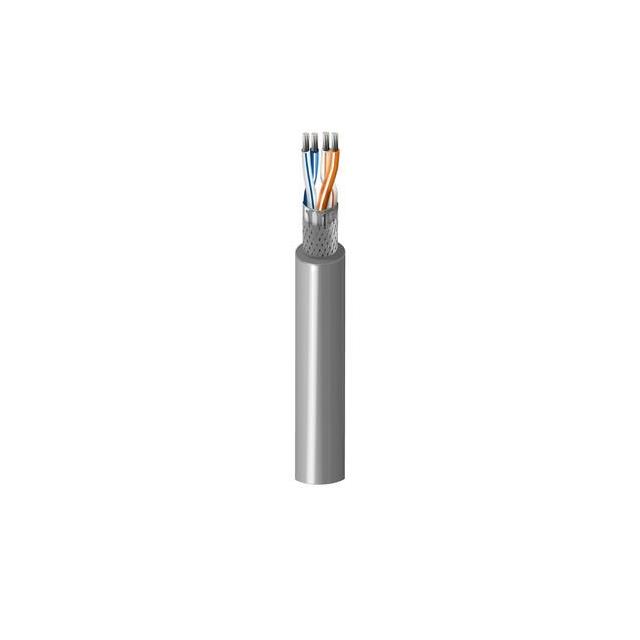

MULTIPAIR CABLE, COMPUTER, SHIELDED, 2 PAIR, 24 AWG, 100 FT, 30.48 M
| Part | Shield Coverage | Shield Material | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Cable Type | Usage | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Conductor Material | Conductor Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Material | Length [x] | Length [x] | Number of Conductors | Length | Length | Ratings | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 90 % 100 % | Aluminum Copper Tinned | 7 | 32 AWG | Braid Foil | Multi-Pair | Computer | Drain Wire | 8.64 mm | 0.34 " | 24 AWG | 0.035 in | 0.889 mm | Chrome | Copper Tinned | Polyethylene (PE) | 80 °C | -30 ░C | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m | 4 | ||||
 Belden Inc. | 90 % 100 % | Aluminum Copper Tinned | 7 | 32 AWG | Braid Foil | Multi-Pair | Computer | Drain Wire | 8.64 mm | 0.34 " | 24 AWG | 0.035 in | 0.889 mm | Chrome | Copper Tinned | Polyethylene (PE) | 80 °C | -30 ░C | Poly-Vinyl Chloride (PVC) | 4 | 152.4 m | 500 ft | ||||
 Belden Inc. | 90 % 100 % | Aluminum Copper Tinned | 7 | 32 AWG | Braid Foil | Multi-Pair | Computer | Drain Wire | 8.64 mm | 0.34 " | 24 AWG | 0.035 in | 0.889 mm | Chrome | Copper Tinned | Polyethylene (PE) | 80 °C | -30 ░C | Poly-Vinyl Chloride (PVC) | 4 | UL Style 2919 | 300 VDC |
