284065 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

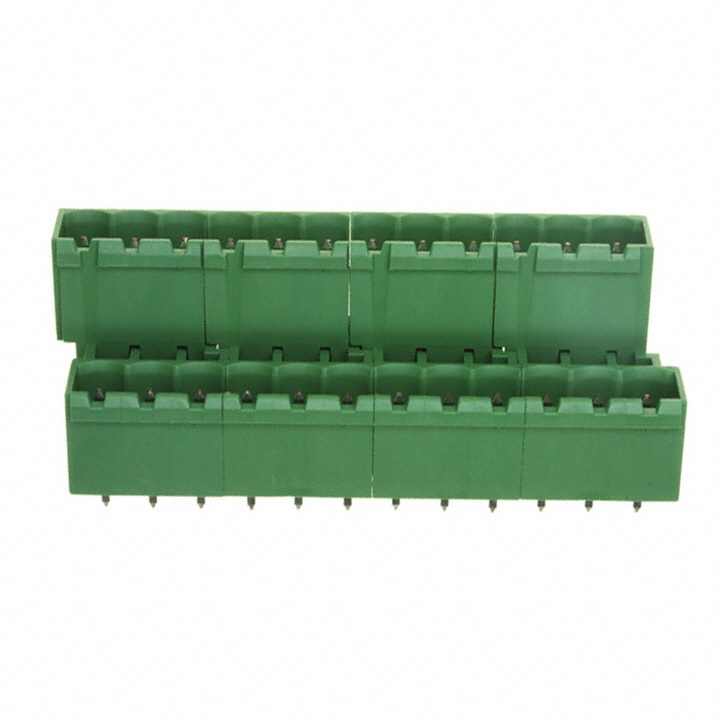

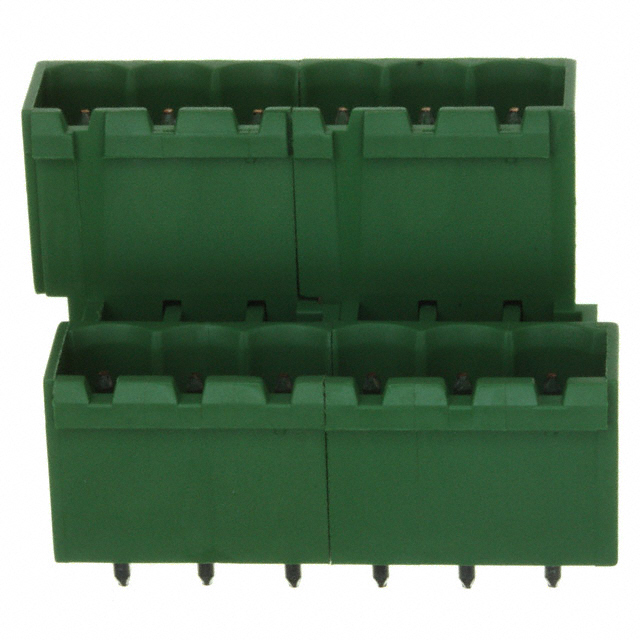

MODULAR TERMINAL BLOCK, 15A, 3MM2, 2 ROW(S)
| Part | Mounting Type | Material Flammability Rating | Insulation Height | Insulation Height | Type | Contact Mating Finish | Voltage - UL | Pitch [x] | Pitch [x] | Color | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Contact Tail Length | Contact Tail Length | Contact Material | Positions Per Level | Features | Current - UL | Number of Levels | Header Orientation | Number of Positions | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Through Hole | UL94 V-0 | 0.869 in | 22.08 mm | Header Male Pins Shrouded (4 Side) | Tin | 300 V | 0.2 in | 5.08 mm | Green | -40 °C | 110 °C | Solder | 3.5 mm | 0.138 in | Copper Alloy | 16 | Interlocking (Side) | 12 A | 2 | Vertical | ||
TE Connectivity Raychem Cable Protection | Through Hole | UL94 V-0 | 0.869 in | 22.08 mm | Header Male Pins Shrouded (4 Side) | Tin | 300 V | 0.2 in | 5.08 mm | Green | -40 °C | 110 °C | Solder | 3.5 mm | 0.138 in | Copper Alloy | 11 | Interlocking (Side) | 12 A | 2 | Vertical | 22 positions | |
 TE Connectivity Raychem Cable Protection | Through Hole | UL94 V-0 | 0.869 in | 22.08 mm | Header Male Pins Shrouded (4 Side) | Tin | 300 V | 0.2 in | 5.08 mm | Green | -40 °C | 110 °C | Solder | 3.5 mm | 0.138 in | Copper Alloy | 10 | Interlocking (Side) | 12 A | 2 | Vertical | 20 | |
TE Connectivity Raychem Cable Protection | Through Hole | UL94 V-0 | 0.869 in | 22.08 mm | Header Male Pins Shrouded (4 Side) | Tin | 300 V | 0.2 in | 5.08 mm | Green | -40 °C | 110 °C | Solder | 3.5 mm | 0.138 in | Copper Alloy | 8 | Interlocking (Side) | 12 A | 2 | Vertical | 16 | |
TE Connectivity Raychem Cable Protection | Through Hole | UL94 V-0 | 0.869 in | 22.08 mm | Header Male Pins Shrouded (4 Side) | Tin | 300 V | 0.2 in | 5.08 mm | Green | -40 °C | 110 °C | Solder | 3.5 mm | 0.138 in | Copper Alloy | 23 | Interlocking (Side) | 12 A | 2 | Vertical | 46 | |
 TE Connectivity Raychem Cable Protection | Through Hole | UL94 V-0 | 0.869 in | 22.08 mm | Header Male Pins Shrouded (4 Side) | Tin | 300 V | 0.2 in | 5.08 mm | Green | -40 °C | 110 °C | Solder | 3.5 mm | 0.138 in | Copper Alloy | 12 | Interlocking (Side) | 12 A | 2 | Vertical | 24 | |
TE Connectivity Raychem Cable Protection | Through Hole | UL94 V-0 | 0.869 in | 22.08 mm | Header Male Pins Shrouded (4 Side) | Tin | 300 V | 0.2 in | 5.08 mm | Green | -40 °C | 110 °C | Solder | 3.5 mm | 0.138 in | Copper Alloy | Interlocking (Side) | 12 A | 2 | Vertical | 48 | ||
TE Connectivity Raychem Cable Protection | Through Hole | UL94 V-0 | 0.869 in | 22.08 mm | Header Male Pins Shrouded (4 Side) | Tin | 300 V | 0.2 in | 5.08 mm | Green | -40 °C | 110 °C | Solder | 3.5 mm | 0.138 in | Copper Alloy | 21 | Interlocking (Side) | 12 A | 2 | Vertical | 42 | |
TE Connectivity Raychem Cable Protection | Through Hole | UL94 V-0 | 0.869 in | 22.08 mm | Header Male Pins Shrouded (4 Side) | Tin | 300 V | 0.2 in | 5.08 mm | Green | -40 °C | 110 °C | Solder | 3.5 mm | 0.138 in | Copper Alloy | 21 | Interlocking (Side) | 12 A | 2 | Vertical | 42 | |
 TE Connectivity Raychem Cable Protection | Through Hole | UL94 V-0 | 0.869 in | 22.08 mm | Header Male Pins Shrouded (4 Side) | Tin | 300 V | 0.2 in | 5.08 mm | Green | -40 °C | 110 °C | Solder | 3.5 mm | 0.138 in | Copper Alloy | 6 | Interlocking (Side) | 12 A | 2 | Vertical | 12 |
