tb-tb2 Series
Manufacturer: Switch Components
Beta
⌘K

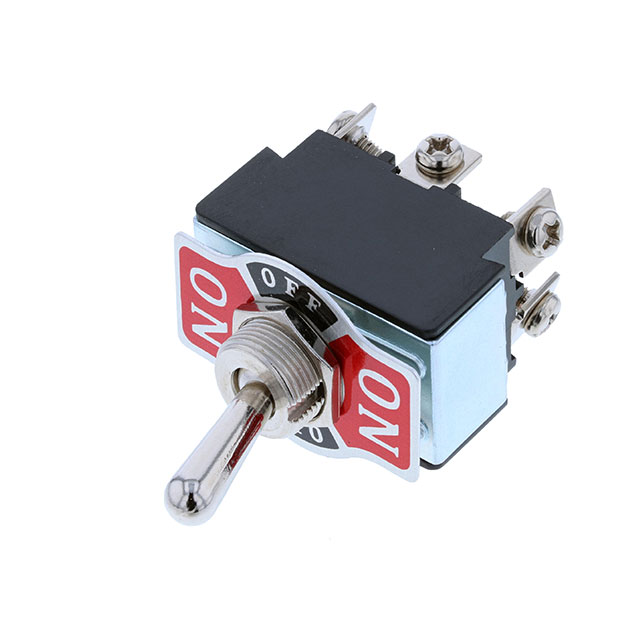

SWITCH: TOGGLE; POS: 3; DPDT; ON-OFF-ON; 20A/12VDC; LEADS: SCREW
| Part | Electrical Life (Cycles) | Voltage Rating - DC | Circuit | Switch Function | Panel Cutout Diameter | Panel Cutout Shape | Actuator Type | Mounting Type | Current Rating | Bushing Thread Pitch | Bushing Thread | Bushing Thread Diameter | Termination Style | Actuator Length | Illumination | Operating Temperature (Min) | Operating Temperature (Max) | Quick Connect Size (0.250") |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switch Components | 6000 Cycles | 12 V | DPDT | On-Off-On | 12.2 mm | Circular | Standard Round | Panel Mount | 20 A | 0.75 mm | M12 x 0.75 | 12 mm | Screw Terminal | 18.4 mm | Non-Illuminated | 0 °C | 55 °C | |

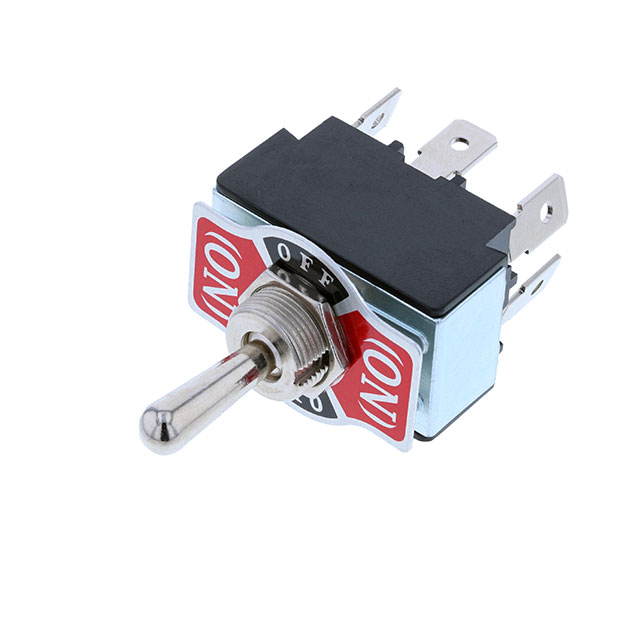

 Switch Components | 6000 Cycles | 12 V | DPDT | On-Off-Mom | 12.2 mm | Circular | Standard Round | Panel Mount | 20 A | 0.75 mm | M12 x 0.75 | 12 mm | Quick Connect | 18.4 mm | Non-Illuminated | 0 °C | 55 °C | 0.25 in |
