FMBD Series

Catalog

LINE FILTER 300/520VAC 16A CHAS

Part	Frequency - Operating [Max]	Frequency - Operating [Min]	Applications	Termination Style	Inductance [custom]	Inductance [custom]	Filter Type	Configuration	Approval Agency	Current	Voltage - Rated AC	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Inductance

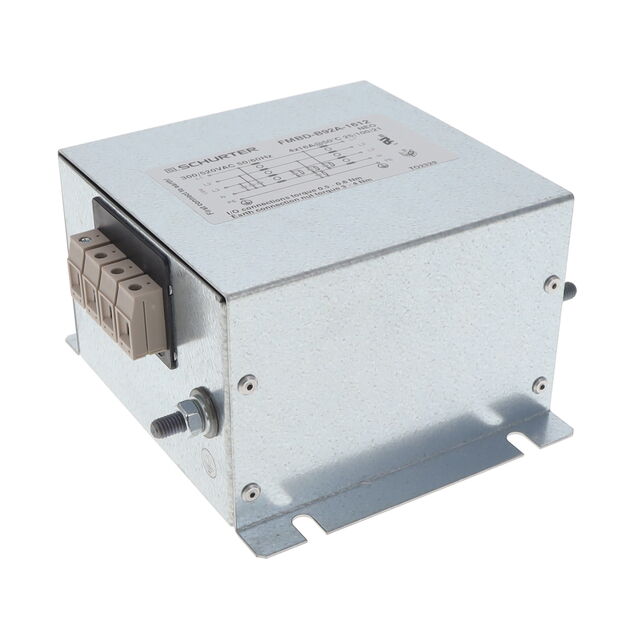

SCHURTER Inc. FMBD-B92A-1612	60 Hz	50 Hz	General Purpose	Terminal Block	1.3 mH	12 µH	Three Phase (Wye)	Two Stage	cURus ENEC VDE	16 A	300 V 520 V	Chassis Mount	100 °C	-25 °C

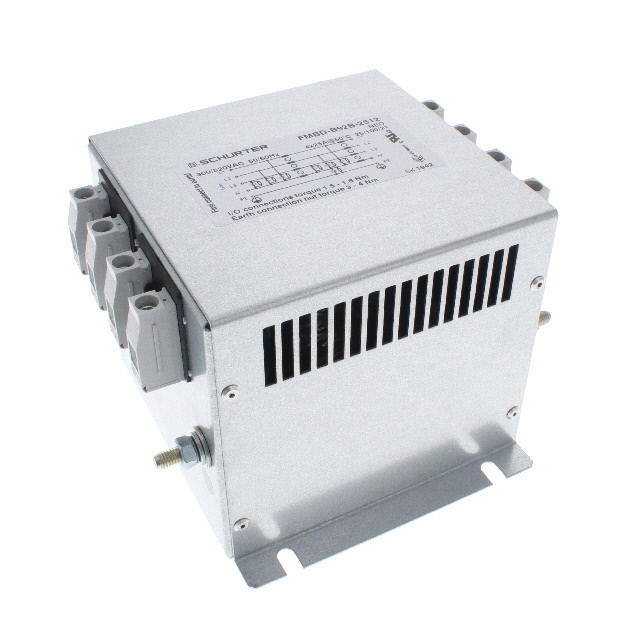

SCHURTER Inc. FMBD-B92B-2512	60 Hz	50 Hz	General Purpose	Terminal Block			Three Phase (Wye)	Two Stage	cURus ENEC VDE	25 A	300 V 520 V	Chassis Mount	100 °C	-25 °C

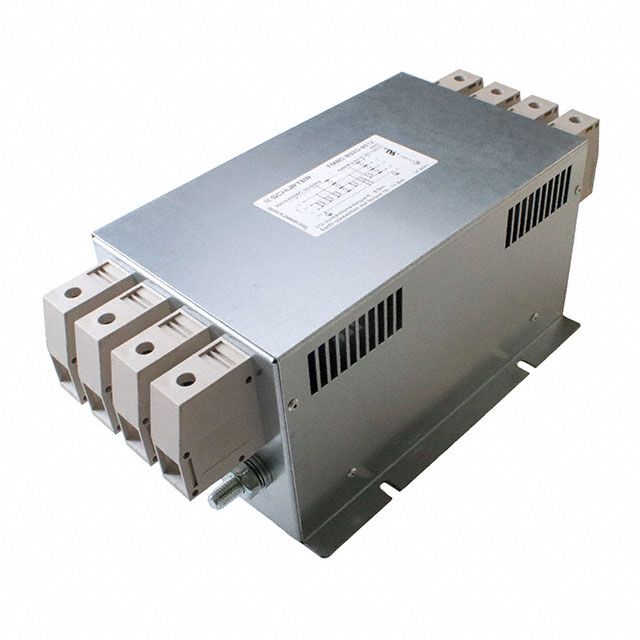

SCHURTER Inc. FMBD-B92D-8012	60 Hz	50 Hz	General Purpose	Terminal Block			Three Phase (Wye)	Two Stage	cURus ENEC VDE	80 A	300 V 520 V	Chassis Mount	100 °C	-25 °C
SCHURTER Inc. FMBD-B92A-0812	60 Hz	50 Hz	General Purpose	Terminal Block	2 mH	4 µH	Three Phase (Wye)	Two Stage	cURus ENEC VDE	8 A	300 V 520 V	Chassis Mount	100 °C	-25 °C

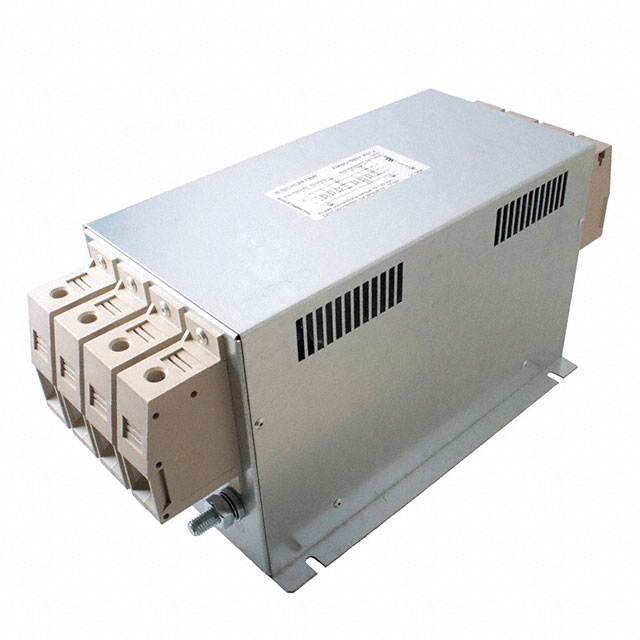

SCHURTER Inc. FMBD-B92F-K012	60 Hz	50 Hz	General Purpose	Terminal Block	300 µH	9 µH	Three Phase (Wye)	Two Stage	cURus ENEC VDE	200 A	300 V 520 V	Chassis Mount	100 °C	-25 °C

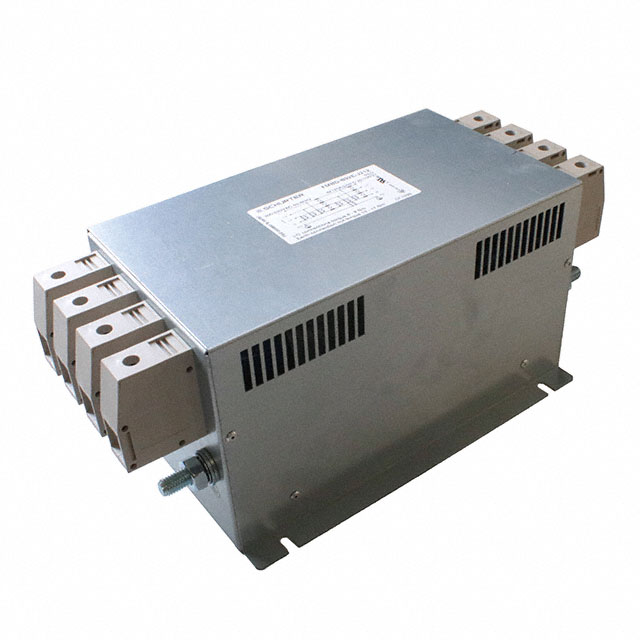

SCHURTER Inc. FMBD-B92E-J212	60 Hz	50 Hz	General Purpose	Terminal Block			Three Phase (Wye)	Two Stage	cURus ENEC VDE	120 A	300 V 520 V	Chassis Mount	100 °C	-25 °C

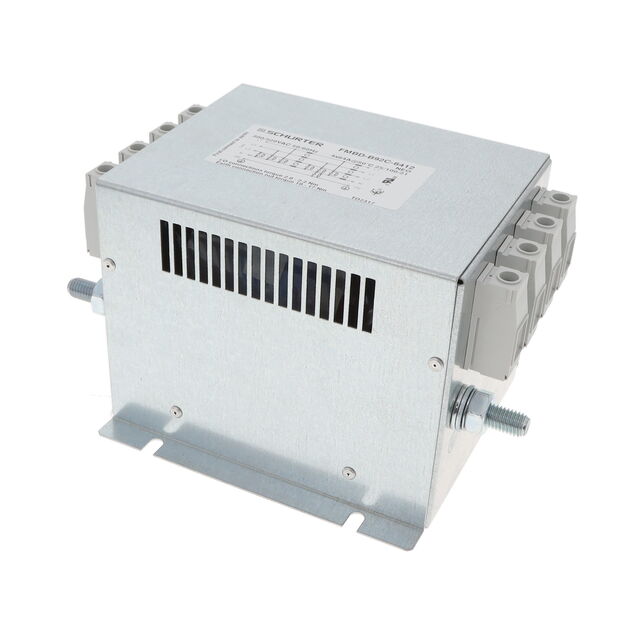

SCHURTER Inc. FMBD-B92C-6412	60 Hz	50 Hz	General Purpose	Terminal Block			Three Phase (Wye)	Two Stage	cURus ENEC VDE	64 A	300 V 520 V	Chassis Mount	100 °C	-25 °C	7.5 mH 700 µH
