2823396 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

6P,2MM,SHRD HDR,SRVT,SMD,SN,TRW/

Part	Current Rating (Amps)	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Number of Positions	Insulation Color	Contact Shape	Contact Material	Shrouding	Number of Rows	Number of Positions Loaded	Connector Type	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating	Contact Length - Mating	Contact Type	Mounting Type	Contact Finish - Post	Insulation Material	Insulation Height [custom]	Insulation Height [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Pitch - Mating [x]	Pitch - Mating [x]	Fastening Type

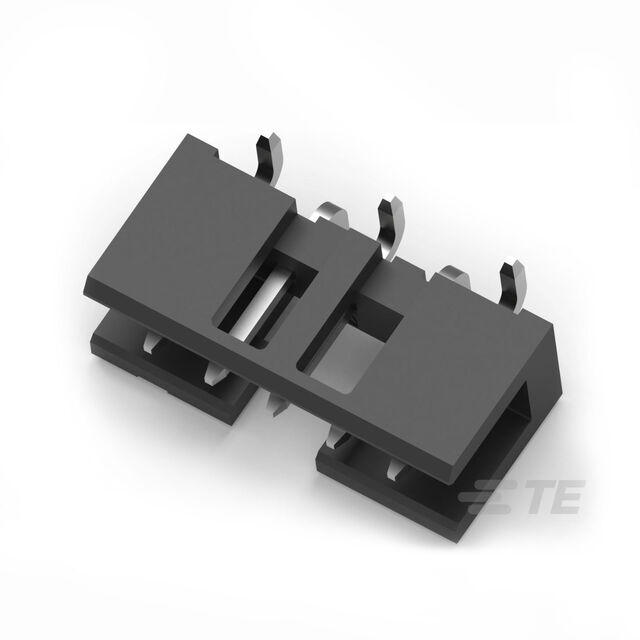

TE Connectivity Raychem Cable Protection 2823396-6	2 A	Solder	118.1 µin	3 µm	125 VAC	6	Black	Square	Phosphor Bronze	Shrouded - 2 Wall	1	All	Header	UL94 V-0	0.3 µm	12 µin	4 mm	0.157 in	Male Pin	Surface Mount	Tin	Thermoplastic	5.51 mm	0.217 in	-40 °C	105 ░C	Pick and Place	0.079 in	2 mm	Detent Lock

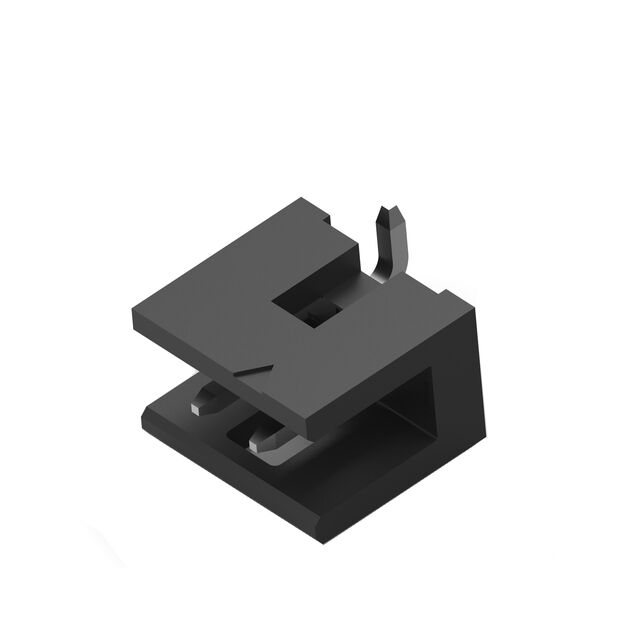

TE Connectivity Raychem Cable Protection 2823396-2	2 A	Solder	118.1 µin	3 µm	125 VAC	2	Black	Square	Phosphor Bronze	Shrouded - 2 Wall	1	All	Header	UL94 V-0	0.3 µm	12 µin	4 mm	0.157 in	Male Pin	Surface Mount	Tin	Thermoplastic	5.51 mm	0.217 in	-40 °C	105 ░C	Pick and Place	0.079 in	2 mm	Detent Lock

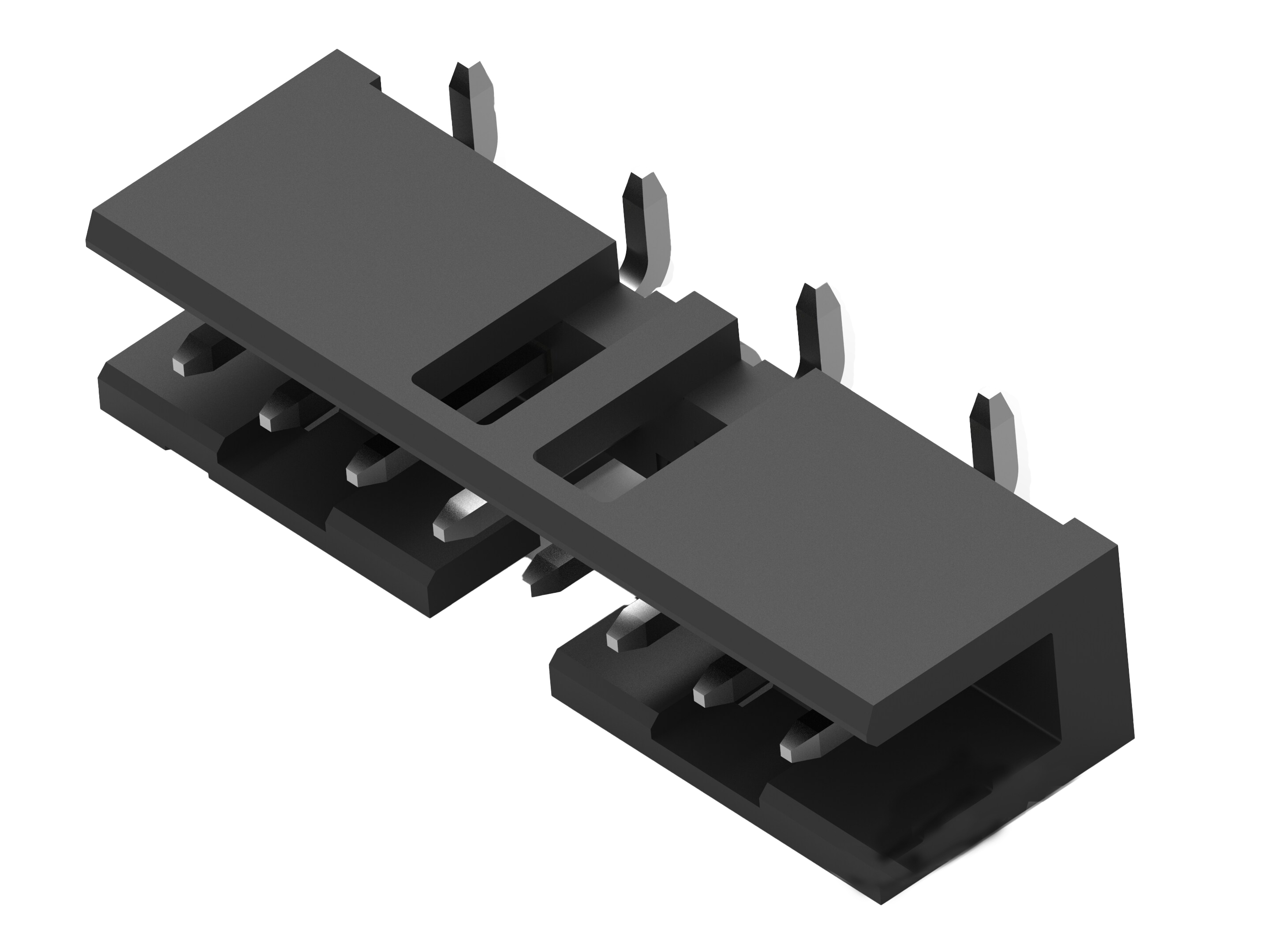

TE Connectivity Raychem Cable Protection 2823396-8	2 A	Solder	118.1 µin	3 µm	125 VAC	8	Black	Square	Phosphor Bronze	Shrouded - 2 Wall	1	All	Header	UL94 V-0	0.3 µm	12 µin	4 mm	0.157 in	Male Pin	Surface Mount	Tin	Thermoplastic	5.51 mm	0.217 in	-40 °C	105 ░C	Pick and Place	0.079 in	2 mm	Detent Lock

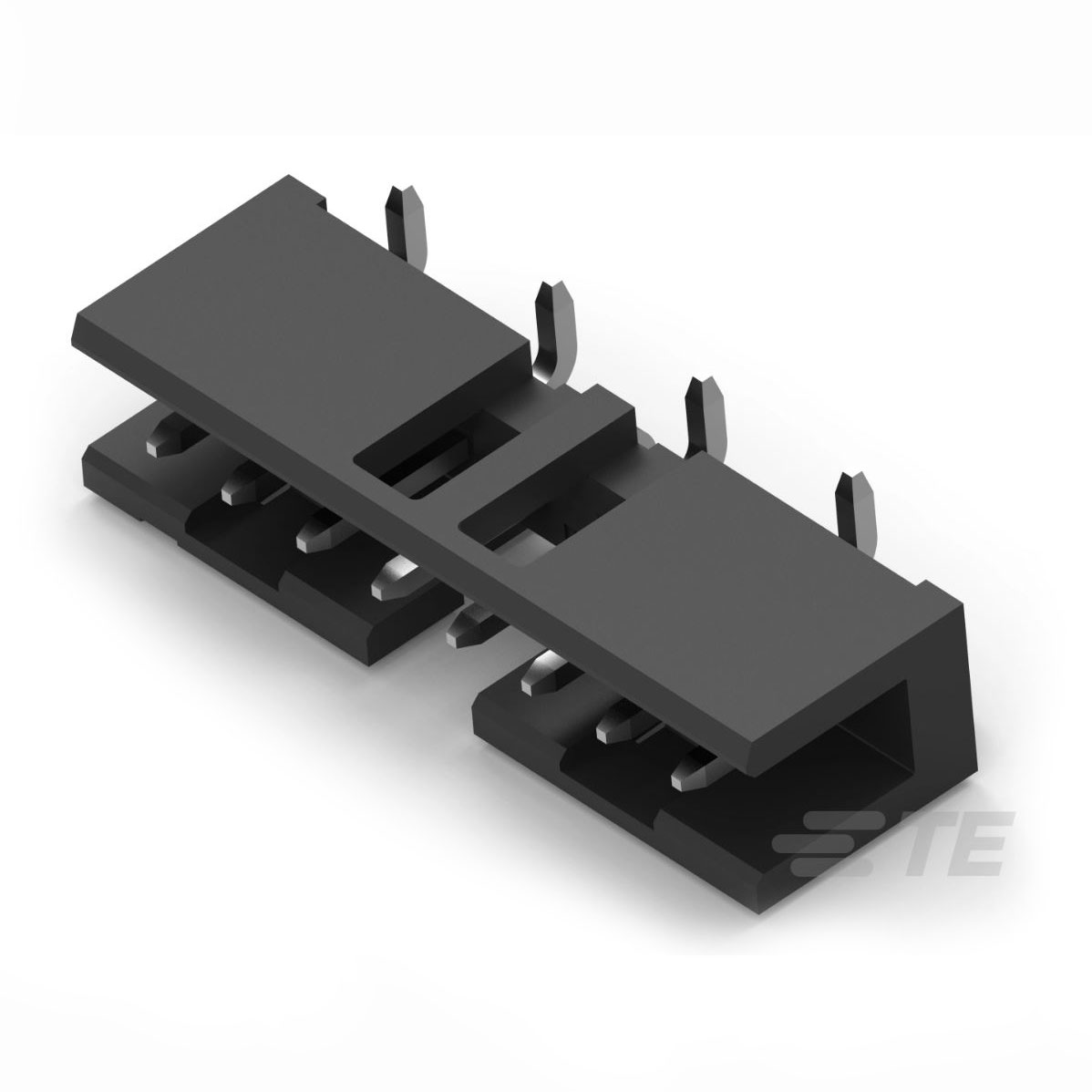

TE Connectivity Raychem Cable Protection 1-2823396-0	2 A	Solder	118.1 µin	3 µm	125 VAC	10	Black	Square	Phosphor Bronze	Shrouded - 2 Wall	1	All	Header	UL94 V-0	0.3 µm	12 µin	4 mm	0.157 in	Male Pin	Surface Mount	Tin	Thermoplastic	5.51 mm	0.217 in	-40 °C	105 ░C	Pick and Place	0.079 in	2 mm	Detent Lock

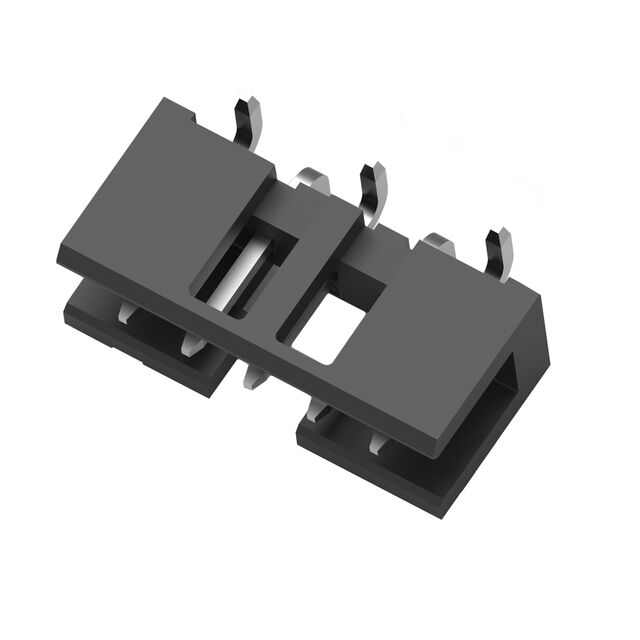

TE Connectivity Raychem Cable Protection 2823396-5	2 A	Solder	118.1 µin	3 µm	125 VAC		Black	Square	Phosphor Bronze	Shrouded - 2 Wall	1	All	Header	UL94 V-0	0.3 µm	12 µin	4 mm	0.157 in	Male Pin	Surface Mount	Tin	Thermoplastic	5.51 mm	0.217 in	-40 °C	105 ░C	Pick and Place	0.079 in	2 mm	Detent Lock

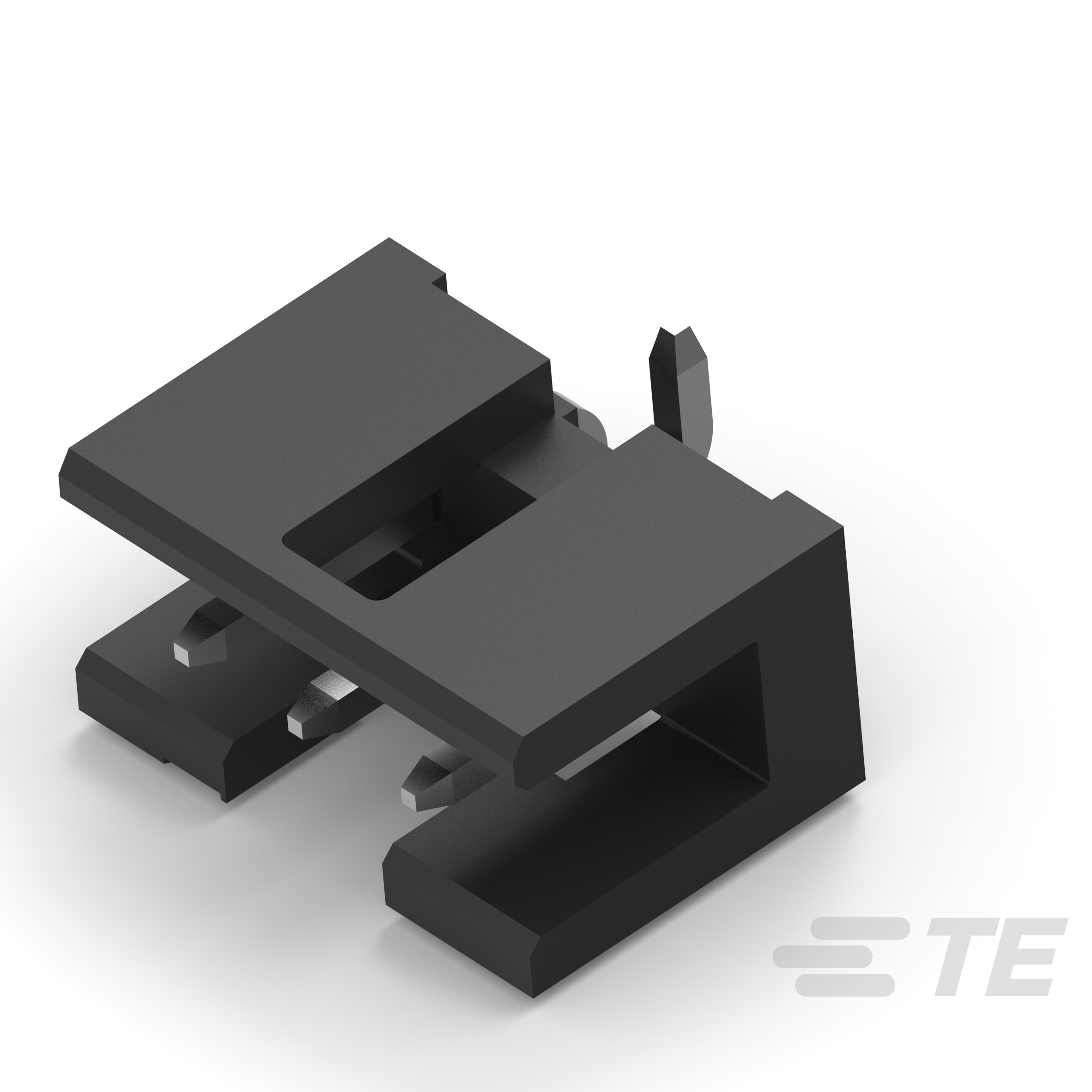

TE Connectivity Raychem Cable Protection 2823396-3	2 A	Solder	118.1 µin	3 µm	125 VAC		Black	Square	Phosphor Bronze	Shrouded - 2 Wall	1	All	Header	UL94 V-0	0.3 µm	12 µin	4 mm	0.157 in	Male Pin	Surface Mount	Tin	Thermoplastic	5.51 mm	0.217 in	-40 °C	105 ░C	Pick and Place	0.079 in	2 mm	Detent Lock

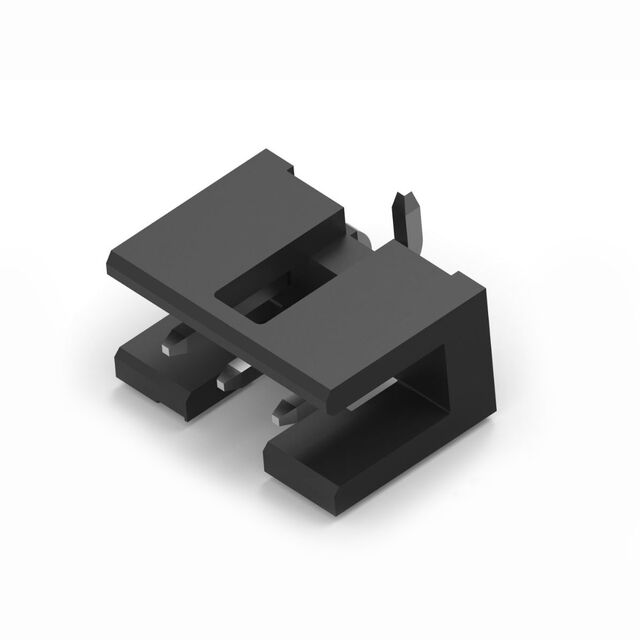

TE Connectivity Raychem Cable Protection 2823396-4	2 A	Solder	118.1 µin	3 µm	125 VAC	4	Black	Square	Phosphor Bronze	Shrouded - 2 Wall	1	All	Header	UL94 V-0	0.3 µm	12 µin	4 mm	0.157 in	Male Pin	Surface Mount	Tin	Thermoplastic	5.51 mm	0.217 in	-40 °C	105 ░C	Pick and Place	0.079 in	2 mm	Detent Lock
