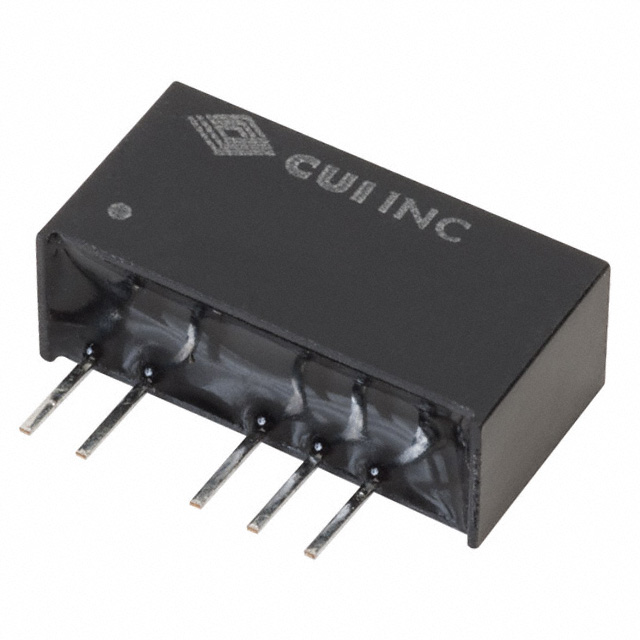

PDM1-S9 Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER +/-9V 1W

Part	Number of Outputs	Mounting Type	Applications	Features	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Voltage - Output 1	Voltage - Isolation	Efficiency	Package / Case	Voltage - Output 2	Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]
CUI Inc. PDM1-S9-D9-S	2	Through Hole	ITE (Commercial)	SCP	8.1 V	0.37 in	6 mm	0.24 "	9.3 mm	19.5 mm	0.77 in	9.9 V	56 mA	9 V	1.5 kV	80 %	6-SIP Module 5 Leads	-9 V	Isolated Module	-40 C	105 ░C
CUI Inc. PDM1-S9-D15-S	2	Through Hole	ITE (Commercial)	SCP	8.1 V	0.37 in	6 mm	0.24 "	9.3 mm	19.5 mm	0.77 in	9.9 V	34 mA	15 V	1.5 kV	80 %	6-SIP Module 5 Leads	-15 V	Isolated Module	-40 C	105 ░C	34 mA
