JWLW21 Series
Manufacturer: NKK Switches
Beta
⌘K
ROCKER SWITCH, ON-NONE-OFF, DPST, NON ILLUMINATED, PANEL MOUNT, BLACK, JW SERIES
| Part | Mechanical Life | Electrical Life | Actuator Marking | Ingress Protection | Mounting Type | Approval Agency | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Color - Actuator/Cap | Termination Style | Termination Style | Termination Style | Voltage Rating - AC | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Features | Circuit | Actuator Type | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

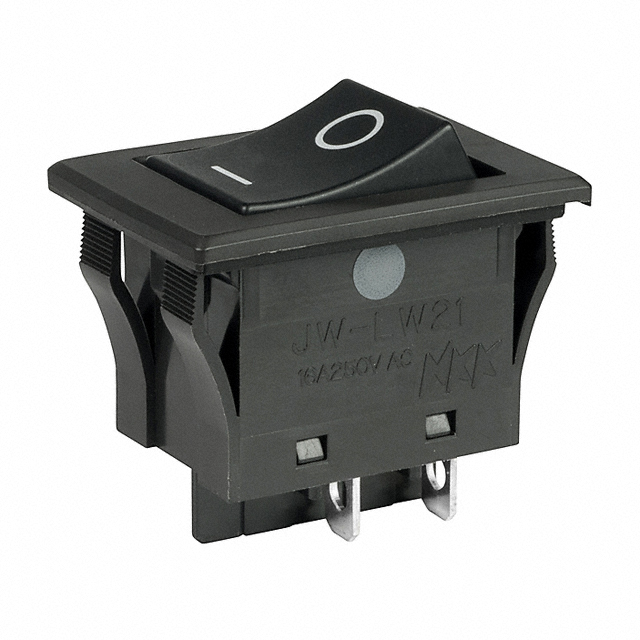

 NKK Switches | 25000 Steps | 25000 Steps | O I | IP67 - Dust Tight Waterproof | Panel Mount Snap-In | CSA UL VDE | On-Off | 85 °C | -25 °C | Black | 4.7 mm | 0.187 in | Solder Quick Connect | 125 V | 30.7 mm | 20.5 mm | Epoxy Sealed Terminals | DPST | Concave (Curved) | 16 A |

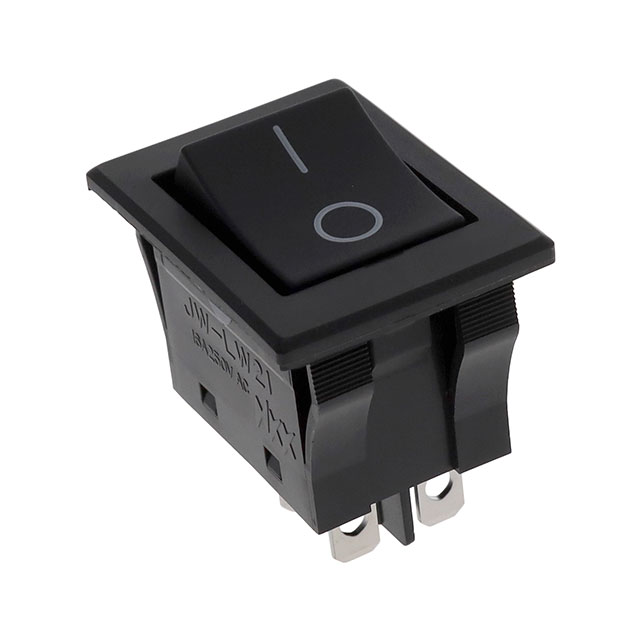

 NKK Switches | 25000 Steps | 25000 Steps | O - | IP67 - Dust Tight Waterproof | Panel Mount Snap-In | CSA UL VDE | On-Off | 85 °C | -25 °C | Black | 4.7 mm | 0.187 in | Solder Quick Connect | 125 V | 30.7 mm | 20.5 mm | Epoxy Sealed Terminals | DPST | Concave (Curved) | 16 A |

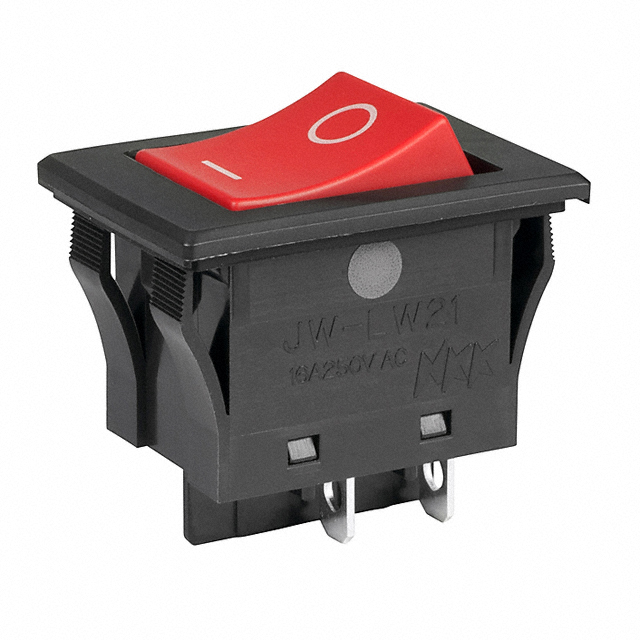

 NKK Switches | 25000 Steps | 25000 Steps | O I | IP67 - Dust Tight Waterproof | Panel Mount Snap-In | CSA UL VDE | On-Off | 85 °C | -25 °C | Red | 4.7 mm | 0.187 in | Solder Quick Connect | 125 V | 30.7 mm | 20.5 mm | Epoxy Sealed Terminals | DPST | Concave (Curved) | 16 A |
