G2E133 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

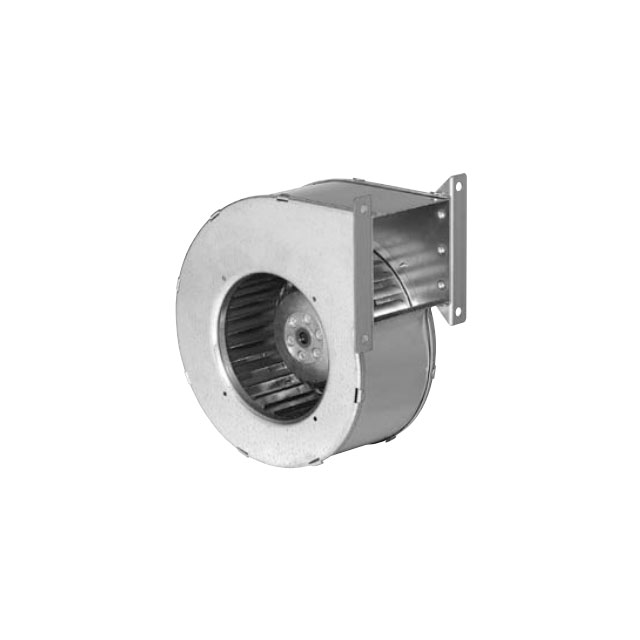

AC CENTRIFUGAL BLOWER
| Part | Current Rating (Amps) | Material - Frame | Material - Blade | RPM | Bearing Type | Size / Dimension | Size / Dimension [x] | Size / Dimension [y] | Features | Width [x] | Voltage - Rated | Ingress Protection | Fan Type | Approval Agency | Power (Watts) | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | 490 mA | Steel | Steel | 2100 RPM | Ball | Rectangular/Rounded | 171 mm | 180 mm | Capacitor Thermal Overload Protector (TOP) | 81 mm | 230 VAC | IP44 | Blower Centrifugal | CE CSA UL | 110 W | 4 Wire Leads | 50 °C | -25 °C | -25 °C | 50 °C |
ebm-papst Inc. | 490 mA | Steel | Steel | 2100 RPM | Ball | Rectangular/Rounded | 171 mm | 180 mm | Capacitor Thermal Overload Protector (TOP) | 81 mm | 230 VAC | IP44 | Blower Centrifugal | CCC CE EAC | 110 W | 4 Wire Leads | 50 °C | -25 °C | -25 °C | 50 °C |
