GBC17S Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER SMD 17POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Insulation Material	Material Flammability Rating	Number of Rows	Contact Finish - Mating	Contact Material	Number of Positions Loaded	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Contact Type	Insulation Height	Insulation Height	Connector Type	Contact Finish - Post	Style	Shrouding	Contact Shape	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Insulation Color	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Sullins Connector Solutions GBC17SABN-M30	2.54 µm	100 µin	0.1 "	2.54 mm	Nylon 9T Polyamide (PA9T)	UL94 V-0	1	Gold	Phosphor Bronze	All	Push-Pull	150 °C	-65 ░C	Solder	Male Pin	0.1 in	2.54 mm	Header Breakaway	Tin	Board to Board Cable	Unshrouded	Square	0.23 in	5.84 mm	3 A	Black	Surface Mount	0.25 µm	10 µin
Sullins Connector Solutions GBC17SFBN-M30	2.54 µm	100 µin	0.1 "	2.54 mm	Nylon 9T Polyamide (PA9T)	UL94 V-0	1	Gold	Phosphor Bronze	All	Push-Pull	150 °C	-65 ░C	Solder	Male Pin	0.1 in	2.54 mm	Header Breakaway	Tin	Board to Board Cable	Unshrouded	Square	0.318 in	8.08 mm	3 A	Black	Surface Mount	0.25 µm	10 µin

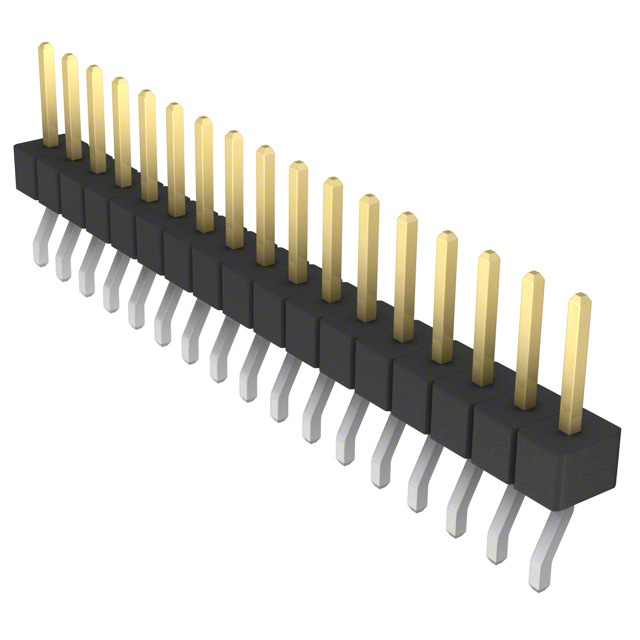

Sullins Connector Solutions GBC17SBSN-M89	2.54 µm	100 µin	0.1 "	2.54 mm	Nylon 9T Polyamide (PA9T)	UL94 V-0	1	Gold	Phosphor Bronze	All	Push-Pull	150 °C	-65 ░C	Solder	Male Pin	0.14 in	3.56 mm	Header Breakaway	Tin	Board to Board Cable	Unshrouded	Square	0.23 in	5.84 mm	3 A	Black	Right Angle Surface Mount	0.25 µm	10 µin

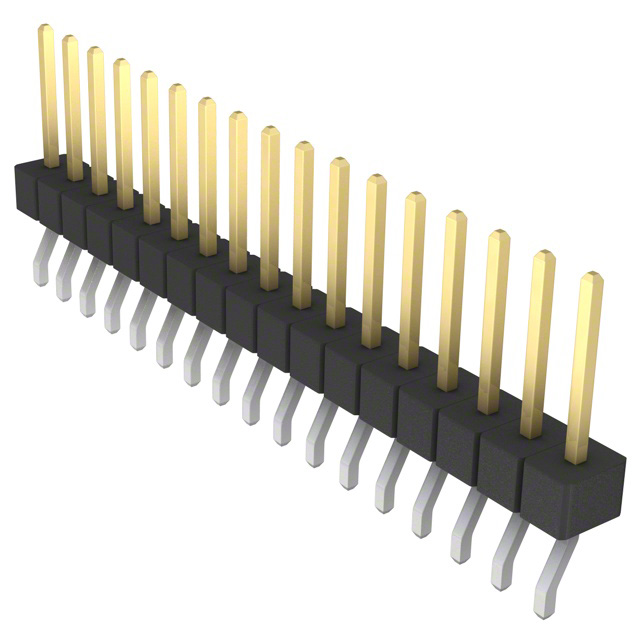

Sullins Connector Solutions GBC17SGSN-M89	2.54 µm	100 µin	0.1 "	2.54 mm	Nylon 9T Polyamide (PA9T)	UL94 V-0	1	Gold	Phosphor Bronze	All	Push-Pull	150 °C	-65 ░C	Solder	Male Pin	0.14 in	3.56 mm	Header Breakaway	Tin	Board to Board Cable	Unshrouded	Square	0.318 in	8.08 mm	3 A	Black	Right Angle Surface Mount	0.25 µm	10 µin
