1571998 Series

Catalog

SWITCH PIANO DIP SPST 0.025A 24V

Part	Length [x]	Length [x]	Body Material	Mechanical Life	Electrical Life	Washable	Contact Material	Circuit	Current Rating (Amps)	Actuator Type	Voltage Rating	Contact Finish	Actuator Level	Number of Positions	Mounting Type	Pitch	Pitch	Operating Temperature [Max]	Operating Temperature [Min]	Height Above Board [z]	Height Above Board [z]	Features	Termination Style

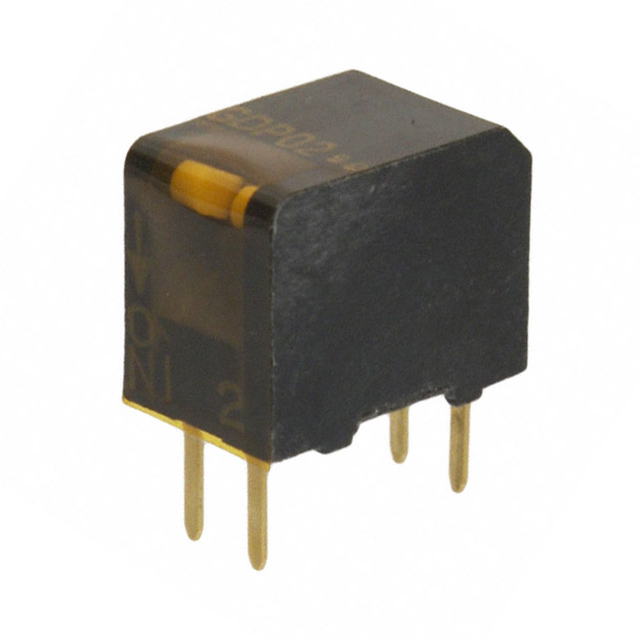

TE Connectivity AMP Connectors 1571998-1	6.04 mm	0.238 in	Polyphenylene Sulfide (PPS)	1000 Cycles	1000 Cycles		Copper Alloy	SPST	25 mA	Piano	24 VDC	Gold	Flush Recessed	2	Right Angle Through Hole	2.54 mm	0.1 "	85 °C	-30 ░C	7.7 mm	0.303 in	Tape Seal	PC Pin
TE Connectivity AMP Connectors 1571998-4	6.04 mm	0.238 in	Polyphenylene Sulfide (PPS)	1000 Cycles	1000 Cycles		Copper Alloy	SPST	25 mA	Piano	24 VDC	Gold	Flush Recessed	2	Right Angle Surface Mount	2.54 mm	0.1 "	85 °C	-30 ░C	8.7 mm	0.343 in	Tape Seal	Gull Wing
