XC6230 Series

Catalog

LDO, ADJ, 1.188-1.212V, 2A, -40TO105DEGC ROHS COMPLIANT: YES

Part	Control Features	Voltage Dropout (Max)	Voltage - Output (Max) [Max]	Voltage - Input (Max) [Max]	Number of Regulators	PSRR	Current - Output	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output (Min/Fixed) [Min]	Mounting Type	Supplier Device Package	Output Configuration	Current - Quiescent (Iq)	Protection Features	Output Type	Package / Case	Voltage - Output (Min/Fixed)	Package / Case [y]	Package / Case [x]
Torex Semiconductor Ltd XC6230H001ER-G	Enable	0.41 V	1.212 V	6 V	1	70 db	2 A	-40 °C	105 °C	1.188 V	Surface Mount	6-USPC (1.8x2)	Positive	83 µA	Over Current Over Temperature Reverse Current	Adjustable	6-UFDFN Exposed Pad
Torex Semiconductor Ltd XC6230A001ER-G	Current Limit Enable	0.41 V	5 V	6 V	1	70 db	2 A	-40 °C	105 °C		Surface Mount	USP-6C	Positive	83 µA	Over Current Over Temperature Reverse Current	Adjustable	6-UFDFN Exposed Pad	1.2 V
Torex Semiconductor Ltd XC6230B001ER-G	Current Limit Enable	0.41 V	5 V	6 V	1	70 db	2 A	-40 °C	105 °C		Surface Mount	USP-6C	Positive	83 µA	Over Current Over Temperature Reverse Current	Adjustable	6-UFDFN Exposed Pad	1.2 V

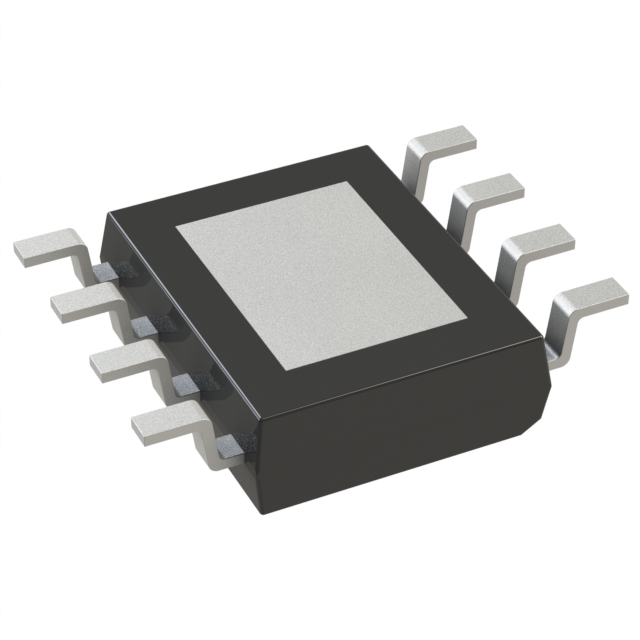

Torex Semiconductor Ltd XC6230A001QR-G	Current Limit Enable	0.52 V	5 V	6 V	1	70 db	2 A	-40 °C	105 °C		Surface Mount	SOP-8FD	Positive	83 µA	Over Current Over Temperature Reverse Current	Adjustable	8-SOIC Exposed Pad	1.2 V	3.9 mm	0.154 in
Torex Semiconductor Ltd XC6230H001QR-G	Enable	0.52 V	1.212 V	6 V	1	70 db	2 A	-40 °C	105 °C	1.188 V	Surface Mount	8-SOPFD	Positive	83 µA	Over Current Over Temperature Reverse Current	Adjustable	8-SOIC Exposed Pad		3.9 mm	0.154 in
Torex Semiconductor Ltd XC6230B001QR-G	Current Limit Enable	0.52 V	5 V	6 V	1	70 db	2 A	-40 °C	105 °C		Surface Mount	SOP-8FD	Positive	83 µA	Over Current Over Temperature Reverse Current	Adjustable	8-SOIC Exposed Pad	1.2 V	3.9 mm	0.154 in
