201606 Series

Manufacturer: Molex

Catalog

UCLP 1PL BLUE 150A/1000V

Part	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Number of Positions	Height (Max) [Max]	Height (Max) [Max]	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Current - UL	Type	Terminal - Width [y]	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Number of Levels	Material - Insulation	Housing Color	Mounting Type	Length	Length	Voltage - UL	Length [x]	Length [x]	For Use With/Related Products	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Height (Max) [Max] [z]	Height (Max)	Wire Gauge or Range - mm² [Min] [custom]	Wire Gauge or Range - mm² [Max] [custom]	Wire Gauge or Range - AWG [Min]	Number of Levels

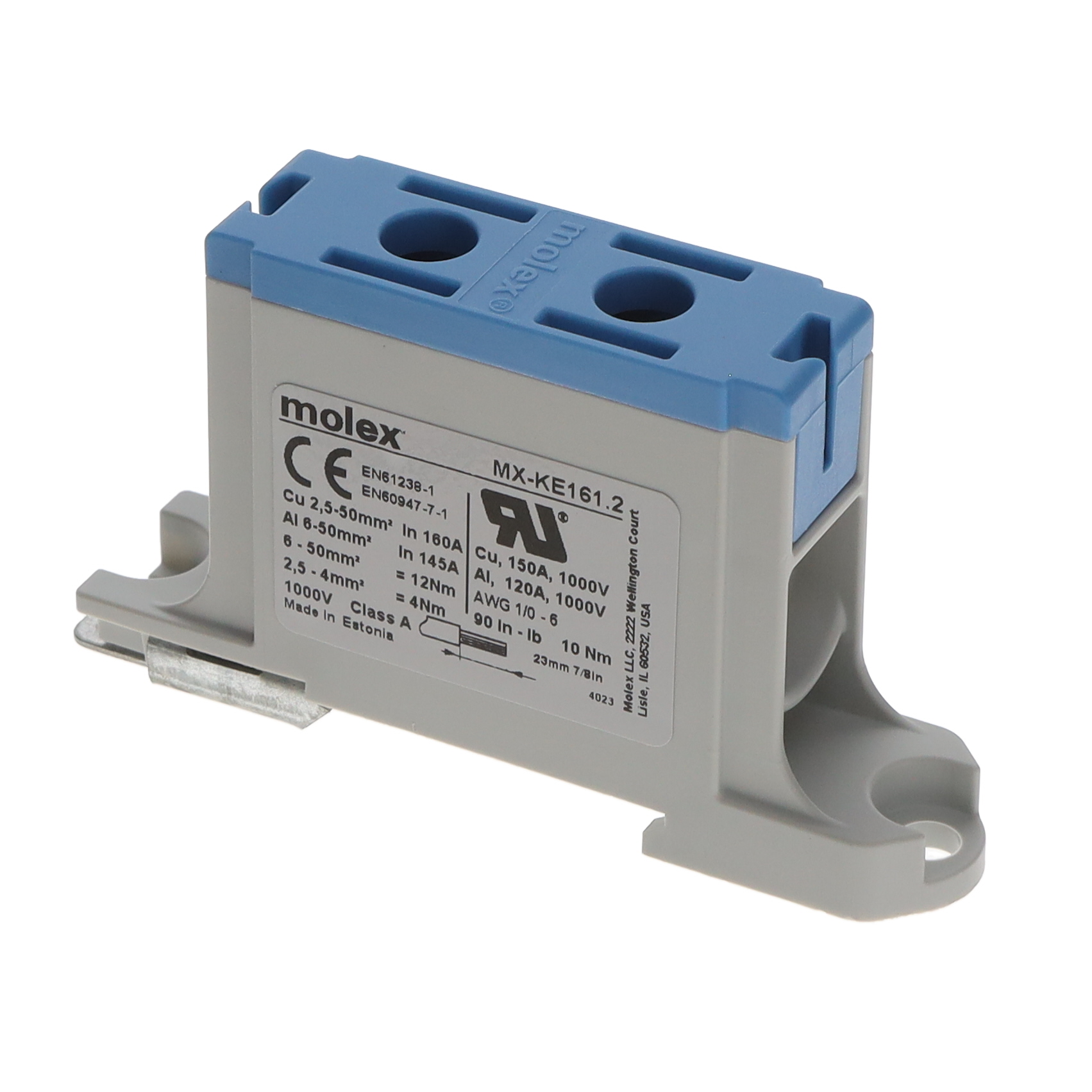

Molex 2016061613	8 AWG	1/0	1	48.3 mm	1.902 in	53 mm˛	13.3 mm˛	150 A	Universal Clamp	19.2 mm	Screw	125 °C	-40 °C	1	Nylon Polyamide (PA)	Gray	DIN Rail or Panel Mount	82.5 mm	3.248 "	1000 V

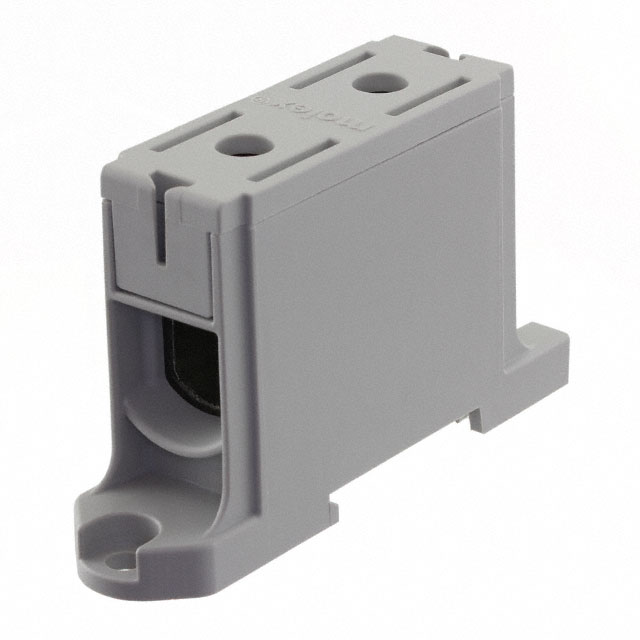

Molex 2016061620	6 AWG	4/0	1	56 mm	2.205 "	107 mm˛	13.3 mm˛		Universal Clamp	25 mm	Screw	125 °C	-40 °C	1	Nylon Polyamide (PA)	Gray	DIN Rail or Panel Mount			1000 V	3.685 "	93.6 mm
Molex 2016066953									End Stop														201606 Series
Molex 2016061617	8 AWG	1/0	1	48.3 mm	1.902 in			150 A	Universal Clamp	19.2 mm	Screw	125 °C	-40 °C	1	Nylon Polyamide (PA)	Gray	DIN Rail or Panel Mount	82.5 mm	3.248 "	1000 V				53 mm²	13.3 mm²
Molex 2016060662	8 AWG	1/0	2	43 mm	1.693 in	53 mm˛	8.3 mm˛		Universal Clamp	29.8 mm	Screw	125 °C	-40 °C	1	Nylon Polyamide (PA)	Gray	DIN Rail	49 mm			1.929 in
Molex 2016066947									Shroud														201606 Series

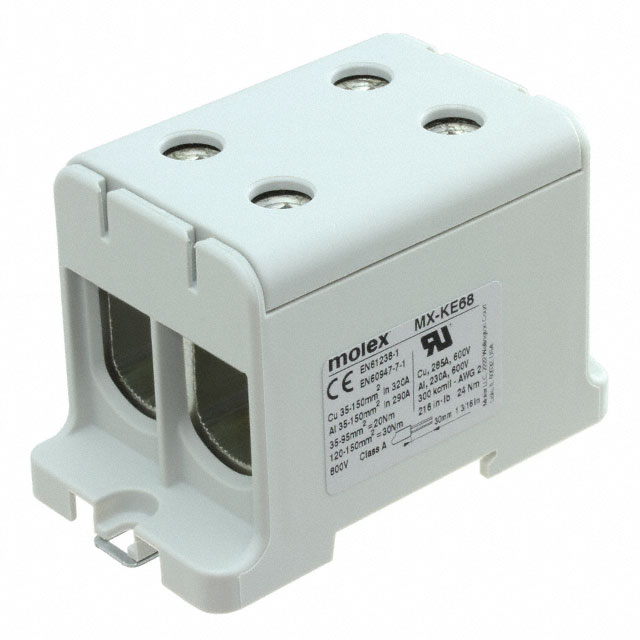

Molex 2016060680	2 AWG		2						Universal Clamp	51.5 mm	Screw	125 °C	-40 °C	1	Nylon Polyamide (PA)	Gray	DIN Rail or Panel Mount	95 mm	3.74 "							2.319 in	58.9 mm	53 mm²	500 mm²	1 aught AWG

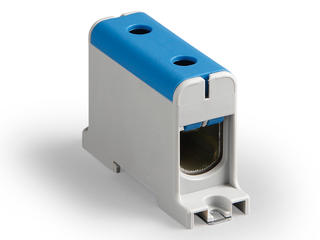

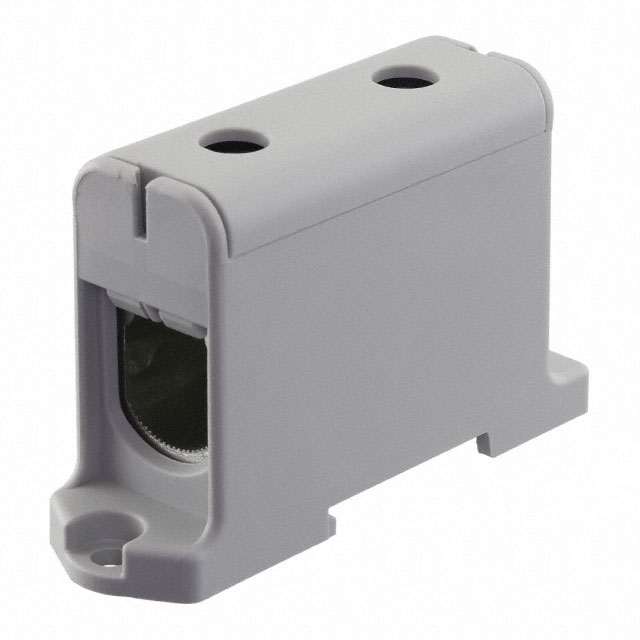

Molex 2016060630	2 AWG		1						Universal Clamp	29.5 mm	Screw	125 °C	-40 °C		Nylon Polyamide (PA)	Gray	DIN Rail or Panel Mount	95 mm	3.74 "							2.319 in	58.9 mm	53 mm²	500 mm²	1 aught AWG	1 (Mate) 2 (Input)
Molex 2016060683	2 AWG		2						Universal Clamp	51.5 mm	Screw	125 °C	-40 °C	1	Nylon Polyamide (PA)	Green	DIN Rail or Panel Mount	95 mm	3.74 "							2.319 in	58.9 mm	53 mm²	500 mm²	1 aught AWG
Molex 2016060632	2 AWG		1						Universal Clamp	29.5 mm	Screw	125 °C	-40 °C	1	Nylon Polyamide (PA)	Gray	DIN Rail or Panel Mount	95 mm	3.74 "							2.319 in	58.9 mm	53 mm²	500 mm²	1 aught AWG
