LCC1250 Series
Manufacturer: Panduit Corp
Beta
⌘K

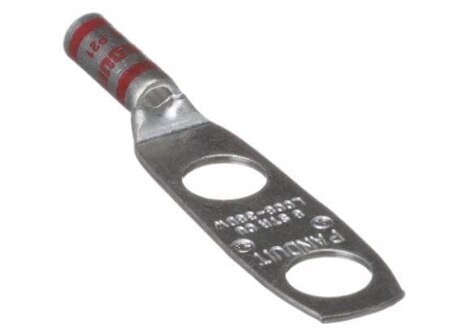

TERMINALS COPPER COMPRESSION LUG, 2 HOLE, 1250 KCM
| Part | Diameter - Ring ID [diameter] | Diameter - Ring ID [diameter] | Contact Finish | Contact Material | Diameter - Barrel ID [diameter] | Diameter - Barrel ID [diameter] | Diameter - Barrel OD [diameter] | Diameter - Barrel OD [diameter] | Terminal Type | Color | Length - Overall | Length - Overall | Mounting Type | Stud/Tab Size | Wire Gauge | Insulation | Termination | Width - Outer Edges [x] | Width - Outer Edges [x] | Terminal Style | Tab Thickness | Tab Thickness | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | 14.22 mm | 0.56 " | Electro-Tin | Copper | 1.36 in | 34.54 mm | 43.94 mm | 1.73 in | Rectangular Tongue | Yellow | 191.77 mm | 7.55 in | Free Hanging (In-Line) | 0.5 Stud | 1250 MCM (kcmil) | Non-Insulated | Barrel Crimp | 62.99 mm | 2.48 in | Two Stud Holes | 9.4 mm | 0.37 in | ||
 Panduit Corp | 14.22 mm | 0.56 " | Electro-Tin | Copper | 1.36 in | 34.54 mm | 43.94 mm | 1.73 in | Rectangular Tongue | Yellow | Free Hanging (In-Line) | 0.5 Stud | 1250 MCM (kcmil) | Non-Insulated | Barrel Crimp | 62.99 mm | 2.48 in | Two Stud Holes | 9.4 mm | 0.37 in | 7.59 in | 192.79 mm |
