53K465 Series
Manufacturer: Rosenberger
Beta
⌘K

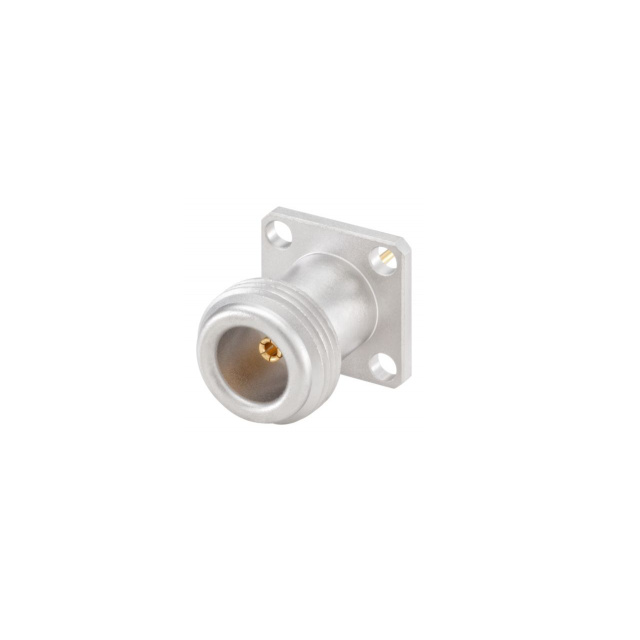

N TYPE PANEL JACK
| Part | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Center Contact Plating | Dielectric Material | Mating Cycles | Body Finish | Number of Ports | Fastening Type | Shield Termination | Connector Style | Connector Type | Frequency - Max [Max] | Impedance | Contact Termination | Center Contact Material | Mounting Type | Mounting Feature | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Brass | 155 C | -55 C | 500 V | Gold | Polytetrafluoroethylene (PTFE) | 500 | White Bronze | 1 | Threaded | Solder | N Type | Female Socket Jack | 11 GHz | 50 Ohms | Solder | Beryllium Copper | Panel Mount | Flange | Silver |
