PX0794 Series
Manufacturer: BULGIN LIMITED
Beta
⌘K

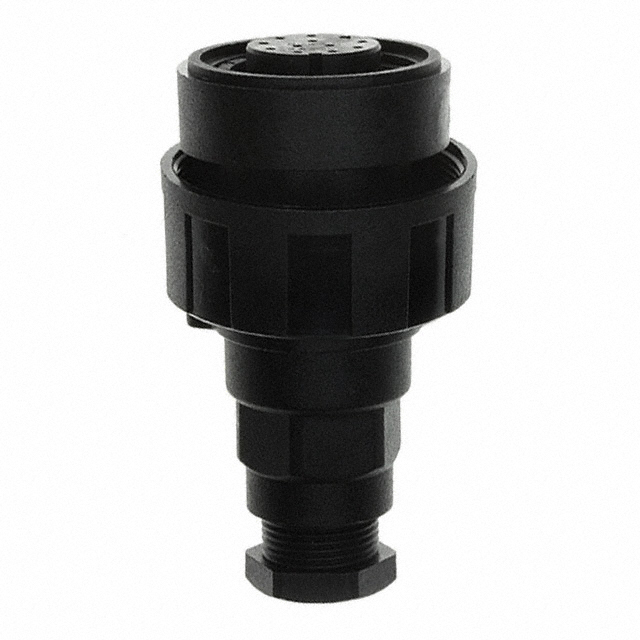

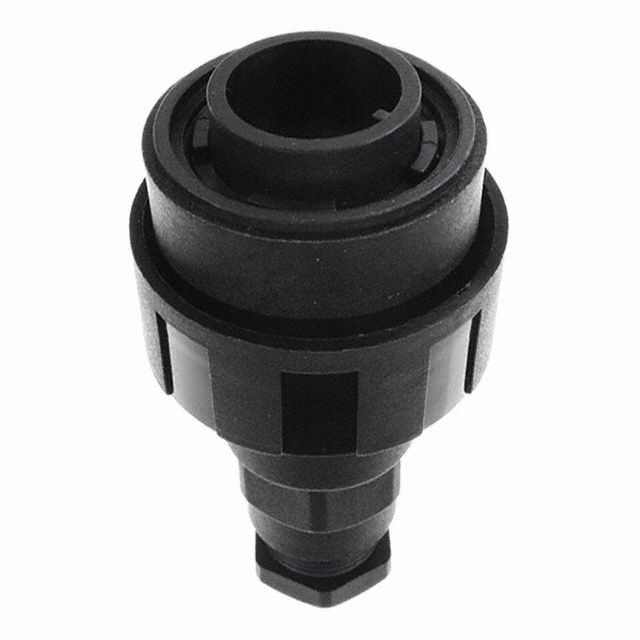

CONN CIRCULAR PIN 12 POS CRIMP/SOLDER ST CABLE MOUNT 12 TERMINAL 1 PORT BUCCANEER BULK
| Part | Ingress Protection | Shell Material | Connector Type | Housing Color | Shielding | Includes | Note | Fastening Type | Orientation | Features | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Shape | Type | Insert Material [custom] | Insert Material [custom] | Material Flammability Rating | Number of Positions | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | IP68 - Dust Tight Waterproof | Glass Filled Nylon Polyamide (PA) | Plug Housing | Black | Unshielded | 1 Backshell 1 Cage Clamp 1 Connector 1 Gland 1 Locking Ring 1 Nut | Contacts Not Included | Threaded | Keyed | Backshell Coupling Nut | Crimp and Solder Cup | -20 ░C | 70 °C | Circular | For Male Pins | Nylon | Polyamide (PA) | UL94 HB | 12 | Free Hanging (In-Line) |
 BULGIN LIMITED | IP68 - Dust Tight Waterproof | Glass Filled Nylon Polyamide (PA) | Plug Housing | Black | Unshielded | 1 Backshell 1 Cage Clamp 1 Connector 1 Gland 1 Locking Ring 1 Nut | Contacts Not Included | Threaded | Keyed | Backshell Coupling Nut | Crimp and Solder Cup | -20 ░C | 70 °C | Circular | For Female Sockets | Nylon | Polyamide (PA) | UL94 HB | 12 | Free Hanging (In-Line) |
