1042A Series
Manufacturer: Belden Inc.
Beta
⌘K

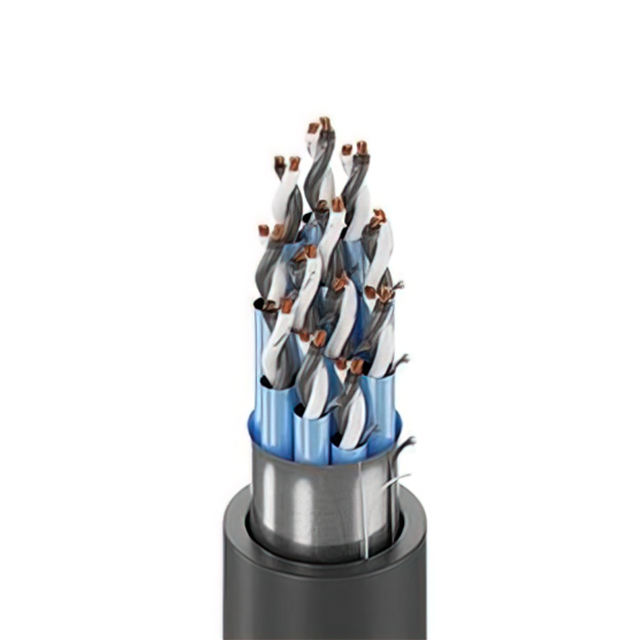

MULTI-PAIR 24COND 16AWG
| Part | Shield Coverage | Shield Material | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness [custom] | Jacket (Insulation) Thickness [custom] | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Conductor Insulation | Conductor Insulation | Conductor Insulation | Jacket (Insulation) Material | Length | Length | Number of Conductors | Features | Jacket Color | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Copper Bare | 7 | 24 AWG | 2.134 mm | 0.084 " | Foil | 0.907 in | 23.04 mm | Multi-Pair | Polyamide (PA) | Nylon | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 2500 ft | 762 m | 24 | Drain Wire Rip Cord | Black | 16 AWG |
