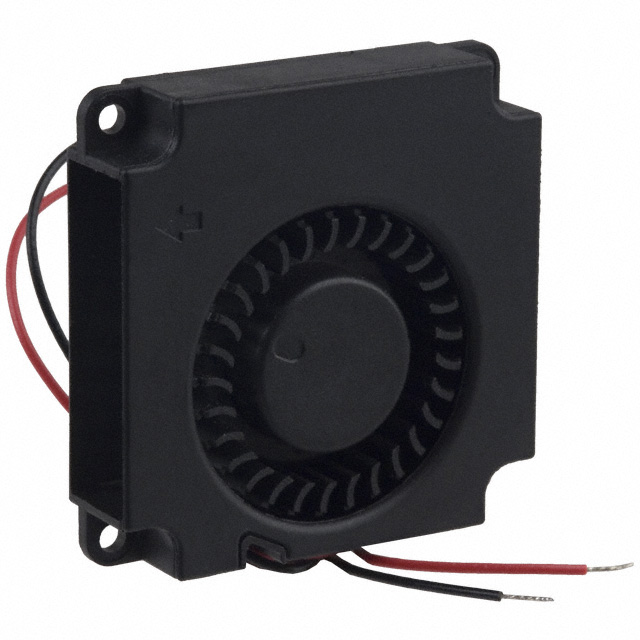

BFB04505 Series

Catalog

FAN BLOWER 45X10.3MM 5VDC WIRE

Part	Material - Blade	Material - Frame	Lifetime @ Temp.	Voltage Range [Max]	Voltage Range [Min]	RPM	Air Flow	Air Flow	Weight [custom]	Weight [custom]	Bearing Type	Noise	Power (Watts)	Approval Agency	Termination	Static Pressure	Static Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Features	Size / Dimension	Size / Dimension [x]	Size / Dimension [z]	Fan Type	Width [x]	Current Rating (Amps)

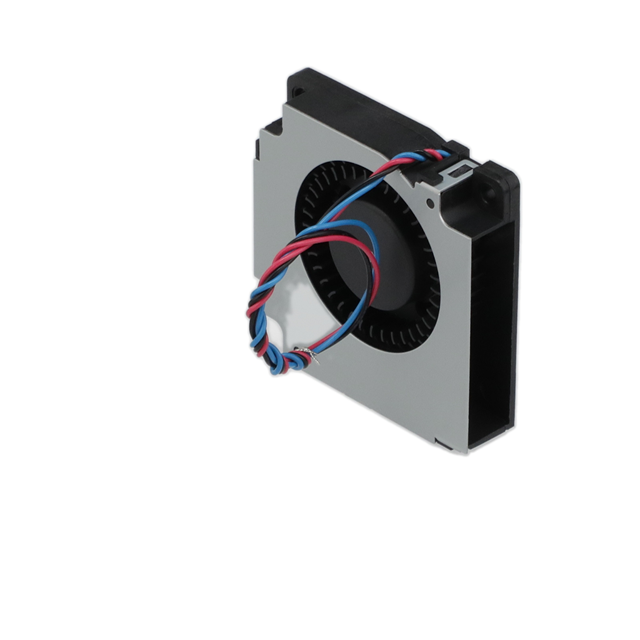

Delta Electronics BFB04505HA-CF00	Plastic	Plastic	30000 Hrs	5.5 V	4 VDC	5150 RPM	3 CFM	0.084 mł/min	18.14 g	0.04 lb	Ball	30.5 dB	0.8 W	CE cURus VDE	3 Wire Leads	97.4 Pa	0.391 in H2O	70 °C	-10 °C	5 V	Locked Rotor Protection Speed Sensor (Tach)	Square	45 mm	45 mm	Blower	10.3 mm

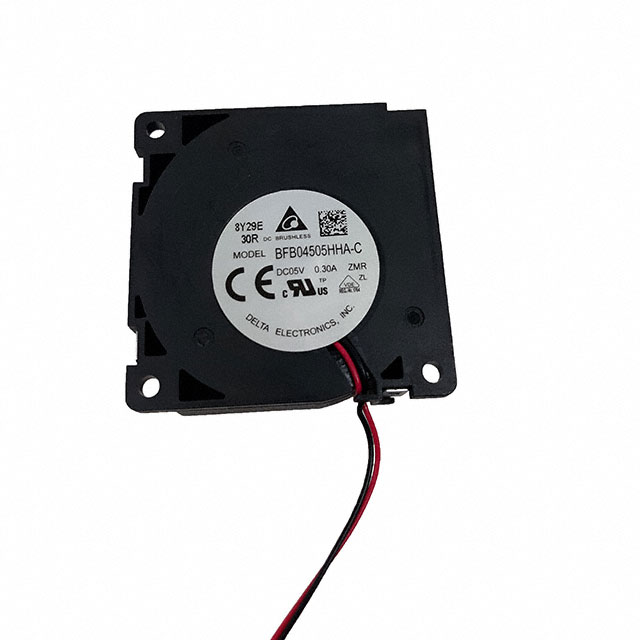

Delta Electronics BFB04505HHA-CZMR	Plastic	Plastic	30000 Hrs	5.5 V	4 VDC	5900 RPM	3.5 CFM	0.098 mł/min	18.14 g	0.04 lb	Ball	35.5 dB	1.25 W	CE cURus VDE	2 Position Rectangular Connector	139.5 Pa	0.56 in H2O	70 °C	-10 °C	5 V		Square	45 mm	45 mm	Blower	10.3 mm	0.25 A
Delta Electronics BFB04505LA-C	Plastic	Plastic	30000 Hrs	5.5 V	4 VDC	3900 RPM	2 CFM	0.056 m³/min	18.14 g	0.04 lb	Ball	21.5 dB(A)	0.4 W	CE CSA UL VDE	2 Wire Leads	52.8 Pa	0.212 in H2O	70 °C	-10 °C	5 V		Square	45 mm	45 mm	Blower	10.3 mm

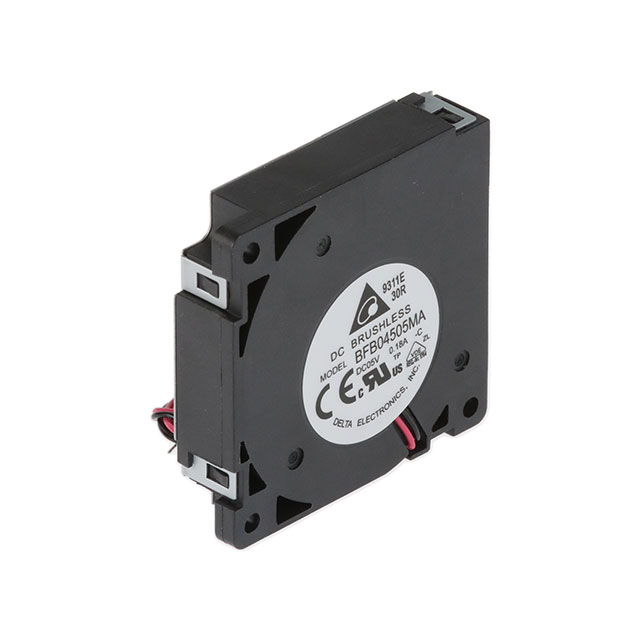

Delta Electronics BFB04505MA-C	Plastic	Plastic	30000 Hrs	5.5 V	4 VDC	4500 RPM	2.6 CFM	0.073 mł/min	18.14 g	0.04 lb	Ball	27 dB(A)	600 mW	CE cURus VDE	2 Wire Leads	69.5 Pa	0.279 in H2O	70 °C	-10 °C	5 V		Square	45 mm	45 mm	Blower	10.3 mm	120 mA

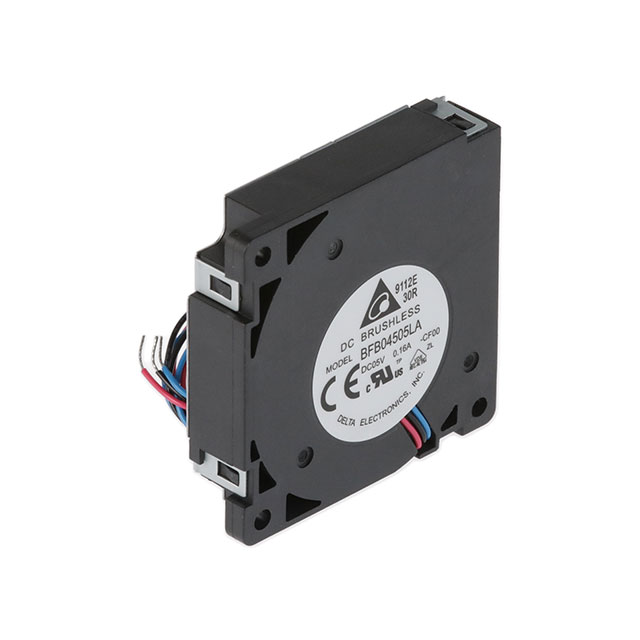

Delta Electronics BFB04505LA-CF00	Plastic	Plastic	30000 Hrs	5.5 V	4 VDC	3900 RPM	2 CFM	0.056 m³/min	18.14 g	0.04 lb	Ball	21.5 dB(A)	0.4 W	CE CSA UL VDE	3 Wire Leads	52.8 Pa	0.212 in H2O	70 °C	-10 °C	5 V	Locked Rotor Protection Speed Sensor (Tach)	Square	45 mm	45 mm	Blower	10.3 mm

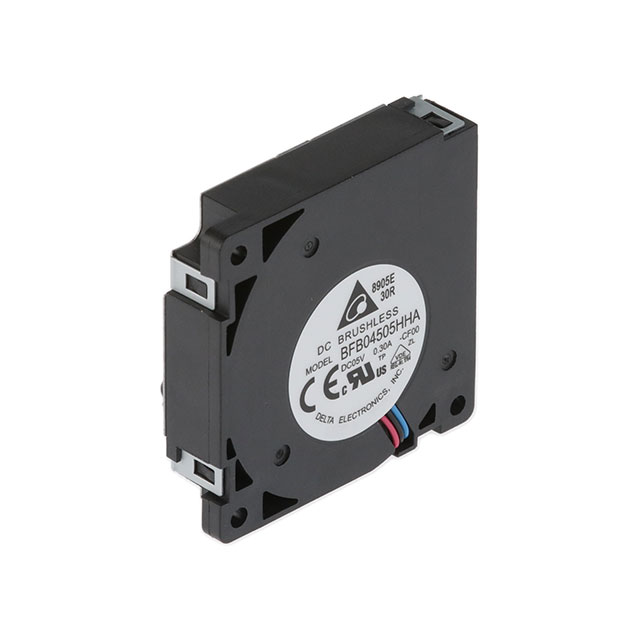

Delta Electronics BFB04505HHA-CF00	Plastic	Plastic	30000 Hrs	5.5 V	4 VDC	5900 RPM	3.5 CFM	0.098 mł/min	18.14 g	0.04 lb	Ball	35.5 dB	1.25 W	CE cURus VDE	3 Wire Leads	139.5 Pa	0.56 in H2O	70 °C	-10 °C	5 V	Locked Rotor Protection Speed Sensor (Tach)	Square	45 mm	45 mm	Blower	10.3 mm	0.25 A
