AGC13 Series

Catalog

CONN RCPT HSG MALE 17P PNL MT RA

Part	Operating Temperature (Min)	Operating Temperature (Max)	Contact Shape	Insert Material	Includes Total Count	Includes	Note	Shielding	Shell Material	Shell Finish	Ingress Protection Description	Ingress Protection IP Rating	Type	Shell Size - Insert	Material Flammability Rating	Housing Color	Fastening Type	Mounting Type	Features	Number of Positions	Connector Type	Orientation	Mounting Feature
TE Intercontec AGC139N00001115000	-20 °C	130 °C	Circular	PBT Polybutylene Terephthalate	3 pcs	Backshell Connector O-Ring	Contacts Not Included	Unshielded	Zinc Die Cast	Chromate	Dust Tight Water Resistant Waterproof	IP66 IP67	For Male Pins	M23-17	UL94 V-0	Silver	Push-Twist	Panel Mount Right Angle	Backshell Rotatable	17	Receptacle Housing	Keyed	Flange
TE Intercontec AGC139N00001100000	-20 °C	130 °C	Circular	PBT Polybutylene Terephthalate	3 pcs	Backshell Connector O-Ring	Contacts Not Included	Unshielded	Zinc Die Cast	Chromate	Dust Tight Water Resistant Waterproof	IP66 IP67	For Male Pins	M23-17	UL94 V-0	Silver	Push-Twist	Panel Mount Right Angle	Backshell Rotatable	17	Receptacle Housing	Keyed	Flange
TE Intercontec AGC139N00001215000	-20 °C	130 °C	Circular	PBT Polybutylene Terephthalate	3 pcs	Backshell Connector O-Ring	Contacts Not Included	Unshielded	Zinc Die Cast	Chromate	Dust Tight Water Resistant Waterproof	IP66 IP67	For Male Pins	M23-17	UL94 V-0	Silver	Push-Twist	Panel Mount Right Angle	Backshell Rotatable	17	Receptacle Housing	Keyed	Flange

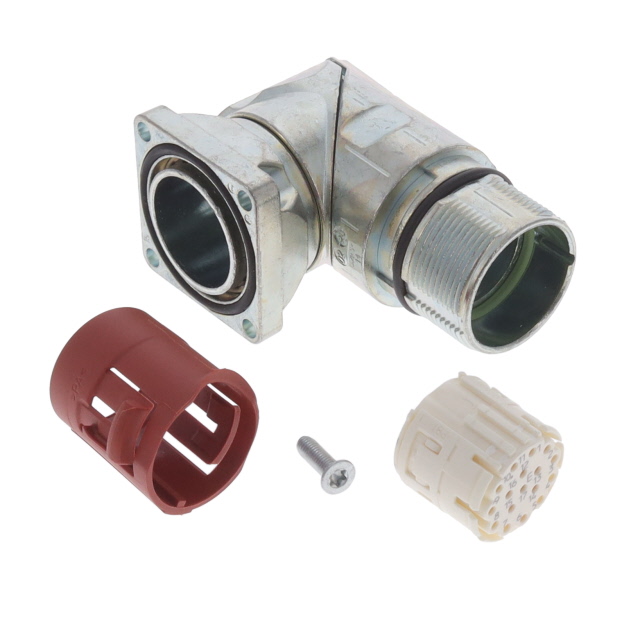

TE Intercontec AGC139N00001200000	-20 °C	130 °C	Circular	PBT Polybutylene Terephthalate	3 pcs	Backshell Connector O-Ring	Contacts Not Included	Unshielded	Zinc Die Cast	Chromate	Dust Tight Water Resistant Waterproof	IP66 IP67	For Male Pins	M23-17	UL94 V-0	Silver	Push-Twist	Panel Mount Right Angle	Backshell Rotatable	17	Receptacle Housing	Keyed	Flange
