56460 Series

Catalog

PELTIER CP10,127,05,L1,EP,W4.5

Part	Voltage - Max [Max]	Operating Temperature	Qmax @ Th	Delta Tmax @ Th	Resistance	Height [z]	Number of Stages	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Features
Laird Thermal Systems, Inc. 56460-500	14.4 V	80 °C	34.3 W	67 °C	3.36 Ohms	3.2 mm	1	3.9 A	29.72 mm	29.72 mm	Lead Wires Sealed - Epoxy
Laird Thermal Systems, Inc. 56460-502	14.4 V	80 °C	34.3 W	67 °C	3.36 Ohms	3.2 mm	1	3.9 A	29.7 mm	29.7 mm	Lead Wires Non-Sealed

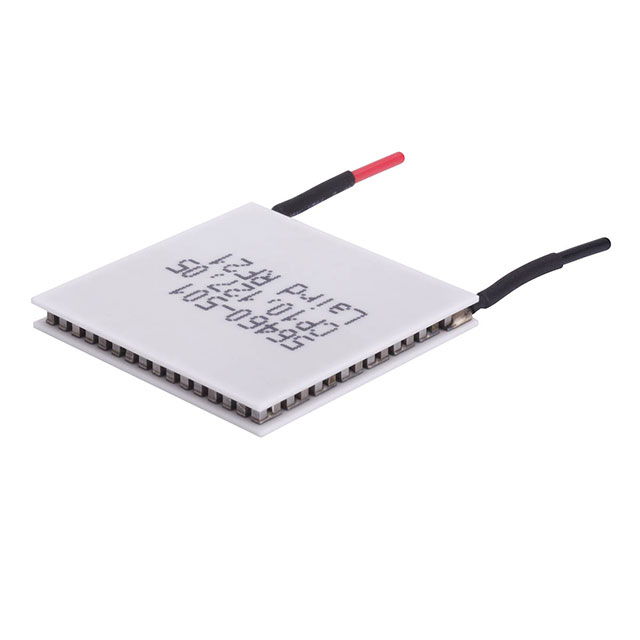

Laird Thermal Systems, Inc. 56460-501	14.4 V	80 °C	34.3 W	67 °C	3.36 Ohms	3.2 mm	1	3.9 A	29.72 mm	29.72 mm	Lead Wires Non-Sealed
