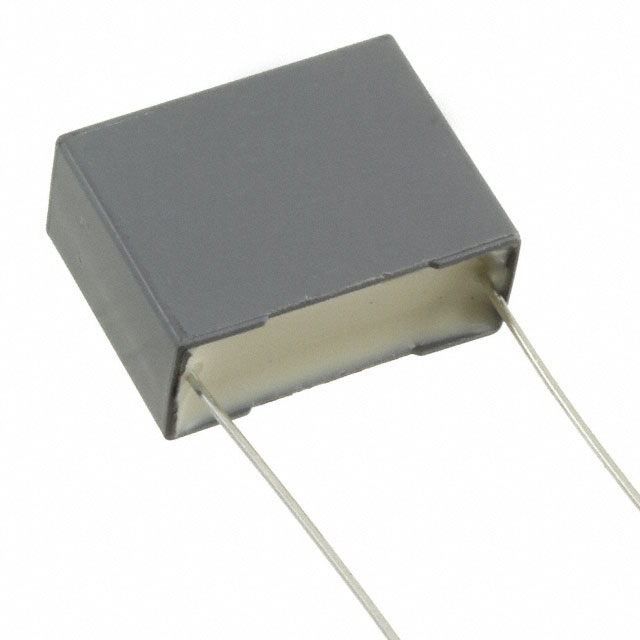

R474N Series

Manufacturer: KEMET

Catalog

CAP FILM 0.15UF 20% 1KVDC RADIAL

Part	Package / Case	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Capacitance	Tolerance	Mounting Type	Ratings	Voltage Rating - DC	Voltage Rating - DC	Voltage Rating - AC	Dielectric Material	Termination	Applications	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max]
KEMET R474N3150JHA1M	Radial	0.886 in	22.5 mm	-40 C	110 °C	18.6 mm	0.732 in	0.15 ÁF	20 %	Through Hole	AEC-Q200 X1	1 kV	1 kVDC	440 V	Polypropylene (PP) Metallized	PC Pins	Automotive EMI RFI Suppression	10 mm	0.394 in	26.5 mm	1.043 in
KEMET R474N333000A1K	Radial	0.886 in	22.5 mm	-40 C	110 °C		22.1 mm	0.33 µF	10 %	Through Hole	AEC-Q200 X1	1 kV	1 kVDC	440 V	Polypropylene (PP) Metallized	PC Pins	Automotive EMI RFI Suppression	13 mm	0.512 "	26.5 mm	1.043 in	0.87 in
KEMET R474N3330CK01K	Radial	0.886 in	22.5 mm	-40 C	110 °C		22.1 mm	0.33 µF	10 %	Through Hole	AEC-Q200 X2	1 kV	1 kVDC	440 V	Polypropylene (PP) Metallized	PC Pins	Automotive EMI RFI Suppression	13 mm	0.512 "	26.5 mm	1.043 in	0.87 in
KEMET R474N3330CK01M	Radial	0.886 in	22.5 mm	-40 C	110 °C		22.1 mm	0.33 µF	20 %	Through Hole	AEC-Q200 X2	1 kV	1 kVDC	440 V	Polypropylene (PP) Metallized	PC Pins	Automotive EMI RFI Suppression	13 mm	0.512 "	26.5 mm	1.043 in	0.87 in
KEMET R474N32205001K	Radial	0.886 in	22.5 mm	-40 C	110 °C			0.22 µF	10 %	Through Hole	AEC-Q200 X2	1 kV	1 kVDC	440 V	Polypropylene (PP) Metallized	PC Pins	Automotive EMI RFI Suppression	11 mm	0.433 in	26.5 mm	1.043 in
KEMET R474N3330CKA1K	Radial	0.886 in	22.5 mm	-40 C	110 °C		22.1 mm	0.33 µF	10 %	Through Hole	AEC-Q200 X1	1 kV	1 kVDC	440 V	Polypropylene (PP) Metallized	PC Pins	Automotive EMI RFI Suppression	13 mm	0.512 "	26.5 mm	1.043 in	0.87 in
KEMET R474N24705001K	Radial	0.886 in	22.5 mm	-40 C	110 °C		15.1 mm		10 %	Through Hole	AEC-Q200 X2	1 kV	1 kVDC	440 V	Polypropylene (PP) Metallized	PC Pins	Automotive EMI RFI Suppression	6 mm	0.236 "	26.5 mm	1.043 in	0.594 in
KEMET R474N3330JB01K	Radial	0.886 in	22.5 mm	-40 C	110 °C		22.1 mm	0.33 µF	10 %	Through Hole	AEC-Q200 X2	1 kV	1 kVDC	440 V	Polypropylene (PP) Metallized	PC Pins	Automotive EMI RFI Suppression	13 mm	0.512 "	26.5 mm	1.043 in	0.87 in
KEMET R474N322000A1M	Radial	0.886 in	22.5 mm	-40 C	110 °C			0.22 µF	20 %	Through Hole	AEC-Q200 X1	1 kV	1 kVDC	440 V	Polypropylene (PP) Metallized	PC Pins	Automotive EMI RFI Suppression	11 mm	0.433 in	26.5 mm	1.043 in
KEMET R474N315000A1M	Radial	0.886 in	22.5 mm	-40 C	110 °C	18.6 mm	0.732 in	0.15 ÁF	20 %	Through Hole	AEC-Q200 X1	1 kV	1 kVDC	440 V	Polypropylene (PP) Metallized	PC Pins	Automotive EMI RFI Suppression	10 mm	0.394 in	26.5 mm	1.043 in
