S12MC7-P Series
Manufacturer: ODU
Beta
⌘K

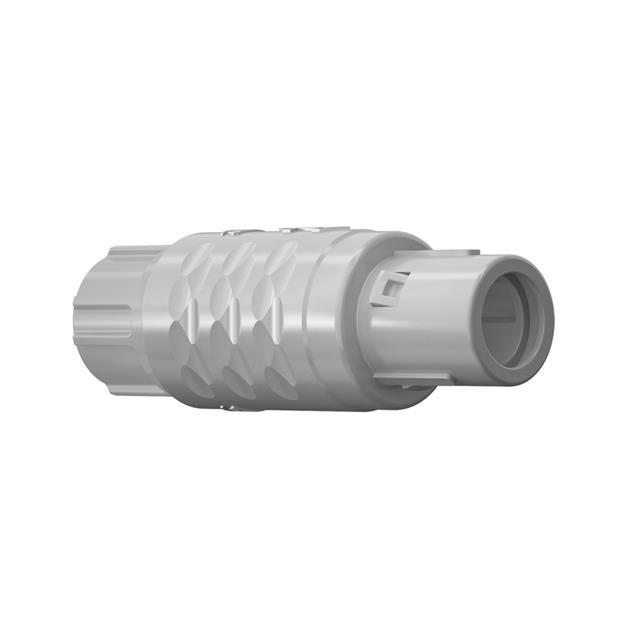

ODU MEDI-SNAP PLUG, STY 1, SZ 2,
| Part | Number of Positions | Mounting Type | Insert Material | Current Rating (Amps) | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Contact Finish - Mating | Applications | Connector Type | Shell Material | Ingress Protection | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Features | Shell Size - Insert [custom] | Material Flammability Rating | Voltage Rating | Orientation | Primary Material | Fastening Type | Backshell Material, Plating | Shielding | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
16 | Free Hanging (In-Line) | Polyetheretherketone (PEEK) | 7.5 A | 0.291 " | 7.4 mm | 9.2 mm | 0.362 in | Gold | Industrial Medical Testing Equipment & Measurement | Plug Male Pins | Polysulfone (PSU) | IP50 - Dust Protected | Brass | 120 °C | -50 °C | Backshell | 2 | UL94 V-0 | 25 V | C | Plastic | Push-Pull | Polysulfone (PSU) | Unshielded | Gray |
