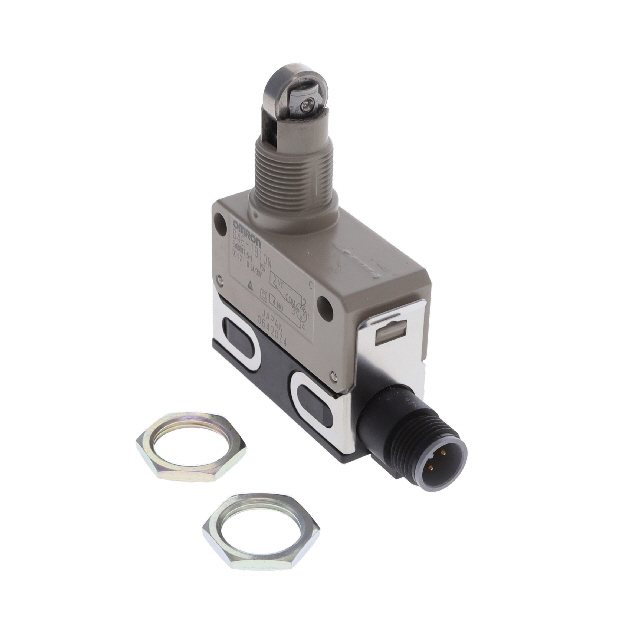

D4E-1B10 Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
SWITCH SNAP ACTION SPDT 1A 125V
| Part | Voltage Rating - AC | Mounting Type | Overtravel | Overtravel | Ingress Protection | Termination Style | Release Force | Mechanical Life | Circuit | Operating Position | Operating Position | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Type | Differential Travel | Differential Travel | Current Rating (Amps) | Pretravel | Pretravel | Switch Function | Voltage Rating - DC | Operating Force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | 125 V | Panel Mount | 0.118 " | 3 mm | IP67 - Dust Tight Waterproof | Connector | 500 gf | 10000000 Cycles | SPDT | 1.235 in | 31.4 mm | -10 °C | 80 °C | Cross Roller Plunger | 0.1 mm | 0.004 in | 1 A | 0.06 in | 1.5 mm | On-Mom | 30 V | 1200 gf |
 Omron Automation and Safety | 125 V | Panel Mount | 0.118 " | 3 mm | IP67 - Dust Tight Waterproof | Connector | 500 gf | 10000000 Cycles | SPDT | 1.235 in | 31.4 mm | -10 °C | 80 °C | Cross Roller Plunger | 0.1 mm | 0.004 in | 1 A | 0.06 in | 1.5 mm | On-Mom | 30 V | 1200 gf |
