073254 Series
Manufacturer: Molex
Beta
⌘K
CONN QMA RCPT STR 50 OHM PCB
| Part | Contact Termination | Mounting Type | Shield Termination | Fastening Type | Connector Type | Body Material | Voltage Rating | Dielectric Material | Number of Ports | Housing Color | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Body Finish | Frequency - Max [Max] | Impedance | Center Contact Material | Includes | Cable Group | Mounting Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Solder | Through Hole | Solder | Snap-On | Female Socket Receptacle | Brass | 480 V | Polytetrafluoroethylene (PTFE) | 1 | Gold | Gold | 125 °C | -65 ░C | Gold | 18 GHz | 50 Ohms | Beryllium Copper | ||||

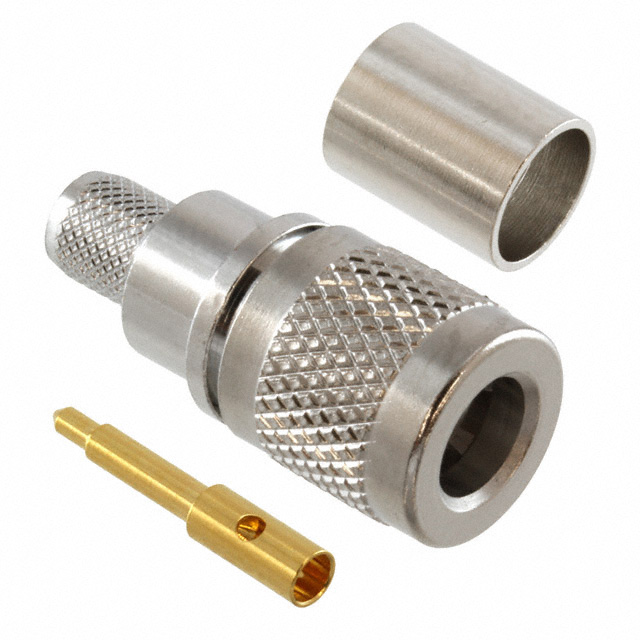

 Molex | Solder | Free Hanging (In-Line) | Crimp | Snap-On | Male Pin Plug | Brass | 480 V | Polytetrafluoroethylene (PTFE) | 1 | Silver | Gold | 125 °C | -65 ░C | Tri-Metal | 18 GHz | 50 Ohms | Brass | 1 Connector 1 Contact 1 Ferrule | LMR-240 | ||
 Molex | Crimp | Crimp | Snap-On | Female Socket Jack | Brass | 480 V | Polytetrafluoroethylene (PTFE) | 1 | Silver | Gold | 125 °C | -65 ░C | Tri-Metal | 18 GHz | 50 Ohms | Beryllium Copper | 1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut | 188 316 RG-174 | Bulkhead - Front Side Nut | ||

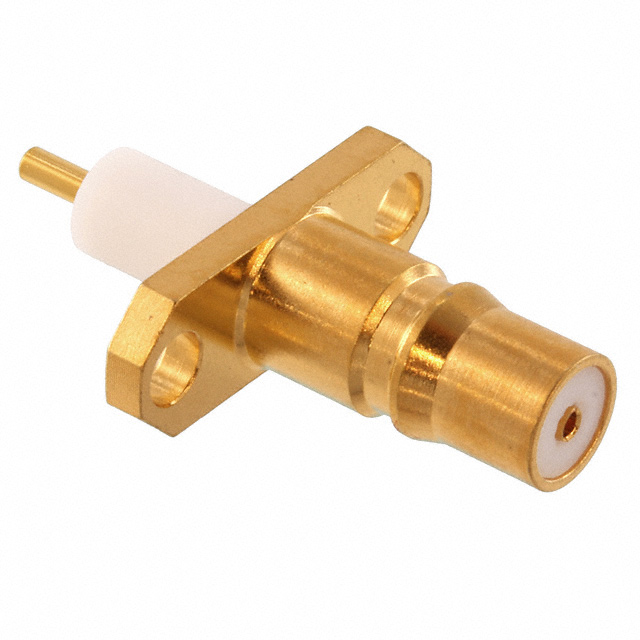

 Molex | Solder | Solder | Snap-On | Female Socket Receptacle | Brass | 480 V | Polytetrafluoroethylene (PTFE) | 1 | Gold | Gold | 125 °C | -65 ░C | Gold | 18 GHz | 50 Ohms | Beryllium Copper | Flange | Extended Insulation | |||

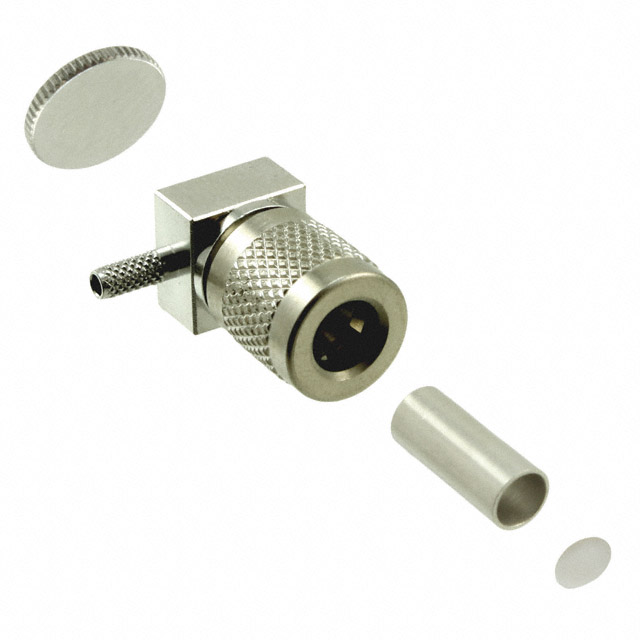

 Molex | Solder | Free Hanging (In-Line) Right Angle | Crimp | Snap-On | Male Pin Plug | Brass | 480 V | Polytetrafluoroethylene (PTFE) | 1 | Silver | Gold | 125 °C | -65 ░C | Tri-Metal | 18 GHz | 50 Ohms | Brass | 1 Connector 1 End Cap 1 Ferrule 1 Spacer | 188 316 RG-174 | ||
Molex | Solder | Free Hanging (In-Line) Right Angle | Crimp | Snap-On | Male Pin Plug | Brass | 480 V | Polytetrafluoroethylene (PTFE) | 1 | Silver | Gold | 125 °C | -65 ░C | Tri-Metal | 18 GHz | 50 Ohms | Brass | 1 Connector 1 End Cap 1 Ferrule 1 Spacer | 188 316 RG-174 | ||

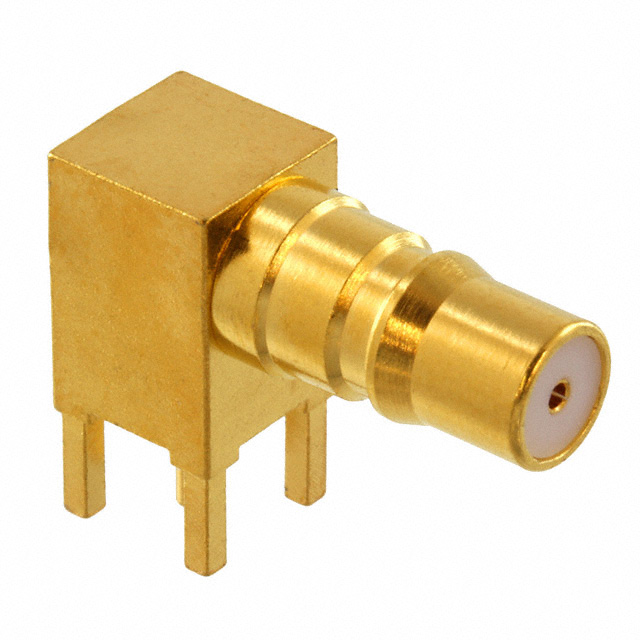

 Molex | Solder | Through Hole Right Angle | Solder | Snap-On | Female Socket Receptacle | Brass | 480 V | Polytetrafluoroethylene (PTFE) | 1 | Gold | Gold | 125 °C | -65 ░C | Gold | 18 GHz | 50 Ohms | Beryllium Copper | ||||
 Molex | Solder | Through Hole | Solder | Snap-On | Female Socket Receptacle | Brass | 480 V | Polytetrafluoroethylene (PTFE) | 1 | Gold | Gold | 125 °C | -65 ░C | Gold | 18 GHz | 50 Ohms | Beryllium Copper | ||||
Molex | Solder | Surface Mount Right Angle | Solder | Snap-On | Female Socket Jack | Brass | 480 V | Polytetrafluoroethylene (PTFE) | 1 | Gold | Gold | 125 °C | -65 ░C | Gold | 18 GHz | 50 Ohms | Beryllium Copper |
