CSD86356Q5D Series

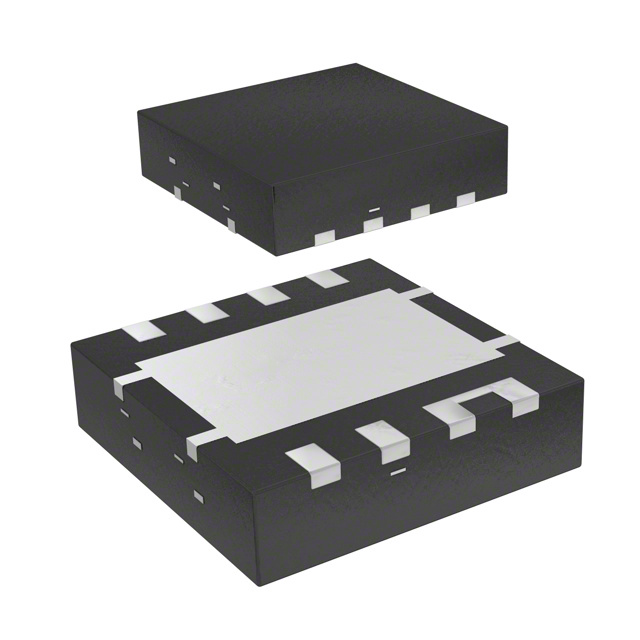

25-V, N channel synchronous buck NexFET™ power MOSFET, SON 5 mm x 6 mm power block, 40 A

Catalog

25-V, N channel synchronous buck NexFET™ power MOSFET, SON 5 mm x 6 mm power block, 40 A

Part	Drain to Source Voltage (Vdss)	Power - Max [Max]	Vgs(th) (Max) @ Id	Current - Continuous Drain (Id) @ 25°C	Mounting Type	Technology	Gate Charge (Qg) (Max) @ Vgs	Gate Charge (Qg) (Max) @ Vgs	Package / Case	Supplier Device Package	Rds On (Max) @ Id, Vgs	Operating Temperature [Min]	Operating Temperature [Max]	Input Capacitance (Ciss) (Max) @ Vds	FET Feature	Configuration
Texas Instruments CSD86356Q5DT	25 V	12 W	1.5 V 1.85 V	40 A	Surface Mount	MOSFET (Metal Oxide)	19.3 nC	7.9 nC	8-PowerTDFN	8-VSON-CLIP (5x6)	0.8 mOhm 4.5 mOhm	-55 °C	150 °C	1040 pF 2510 pF	5V Drive Logic Level Gate	2 N-Channel (Half Bridge)
Texas Instruments CSD86356Q5D	25 V	12 W	1.5 V 1.85 V	40 A	Surface Mount	MOSFET (Metal Oxide)	19.3 nC	7.9 nC	8-PowerTDFN	8-VSON-CLIP (5x6)	0.8 mOhm 4.5 mOhm	-55 °C	150 °C	1040 pF 2510 pF	5V Drive Logic Level Gate	2 N-Channel (Half Bridge)

Catalog

25-V, N channel synchronous buck NexFET™ power MOSFET, SON 5 mm x 6 mm power block, 40 A

Key Features

• Half-Bridge Power Block93.0% System Efficiency at 25 AUp to 40-A OperationHigh-Frequency Operation (Up to 1.5 MHz)High-Density SON 5-mm × 6-mm FootprintOptimized for 5-V Gate DriveLow-Switching LossesUltra-Low Inductance PackageRoHS CompliantHalogen FreeLead-Free Terminal PlatingHalf-Bridge Power Block93.0% System Efficiency at 25 AUp to 40-A OperationHigh-Frequency Operation (Up to 1.5 MHz)High-Density SON 5-mm × 6-mm FootprintOptimized for 5-V Gate DriveLow-Switching LossesUltra-Low Inductance PackageRoHS CompliantHalogen FreeLead-Free Terminal Plating

Description

The CSD86356Q5D NexFET™ power block is an optimized design for synchronous buck applications offering high-current, high-efficiency, and high-frequency capability in a small 5-mm × 6-mm outline. Optimized for 5-V gate drive applications, this product offers a flexible solution capable of offering a high-density power supply when paired with any 5-V gate drive from an external controller/driver. The CSD86356Q5D NexFET™ power block is an optimized design for synchronous buck applications offering high-current, high-efficiency, and high-frequency capability in a small 5-mm × 6-mm outline. Optimized for 5-V gate drive applications, this product offers a flexible solution capable of offering a high-density power supply when paired with any 5-V gate drive from an external controller/driver.
