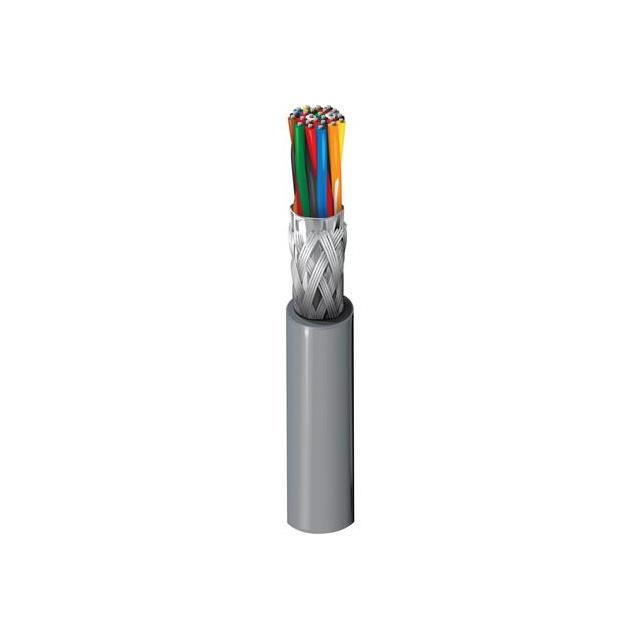

8318 Series
Manufacturer: Belden Inc.
Beta
⌘K
MULTI-PAIR 36COND 22AWG
| Part | Shield Coverage | Shield Material | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness [custom] | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Conductor Material | Shield Type | Voltage | Usage | Ratings | Wire Gauge | Cable Type | Number of Conductors | Length | Length | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 80 °C | -30 ░C | Chrome | 1.143 mm | 0.045 in | 30 AWG | 7 | Poly-Vinyl Chloride (PVC) | Copper Tinned | Braid Foil | 300 VDC | Computer | UL Style 2464 | 22 AWG | Multi-Pair | 36 | 152.4 m | 500 ft | Poly-Vinyl Chloride (PVC) | 0.54 " | 13.72 mm |
