R19121 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SMB MALE - BNC FEMALE SQUARE FLA
| Part | Body Material | Dielectric Material | Center Contact Material | Mating Cycles | Operating Temperature [Max] | Operating Temperature [Min] | Body Finish | Mounting Type | Convert From (Adapter End) | Conversion Type | Style | Impedance | Convert To (Adapter End) | Mounting Feature | Adapter Type | Center Contact Plating | Frequency - Max [Max] | Fastening Type | Center Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

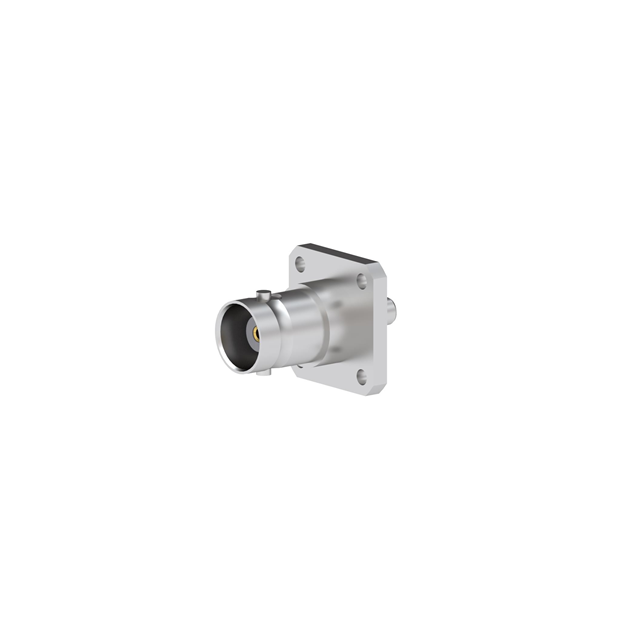

 Radiall USA, Inc. | Brass | Polytetrafluoroethylene (PTFE) | Beryllium Copper | 500 | 155 C | -55 C | Nickel | Panel Mount | BNC Jack Female Socket | Between Series | Straight | 50 Ohms | SMB Jack Male Pin | Flange | Jack to Jack | Gold | 4 GHz | Bayonet Lock Snap-On | |

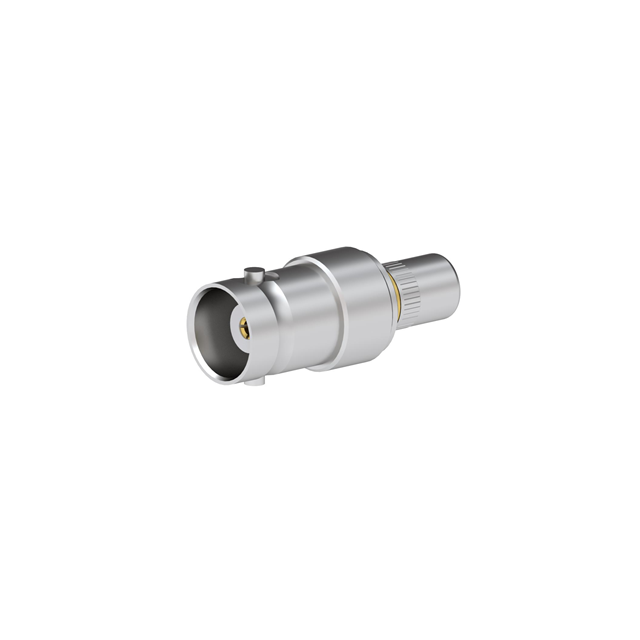

 Radiall USA, Inc. | Brass | Polytetrafluoroethylene (PTFE) | Beryllium Copper | 500 | 155 C | -55 C | Nickel | Free Hanging (In-Line) | BNC Jack Female Socket | Between Series | Straight | 50 Ohms | Female Socket SMB Plug | Plug to Jack | Gold | 4 GHz | Bayonet Lock Snap-On | Female to Female |
