745-017 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 17POS 0.100

Part	Material - Insulation	Termination Rows	Color	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Termination	Mounting Type	Contact Material	Contact Type	Read Out	Number of Rows	Card Type	Number of Positions/Bay/Row [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Gender

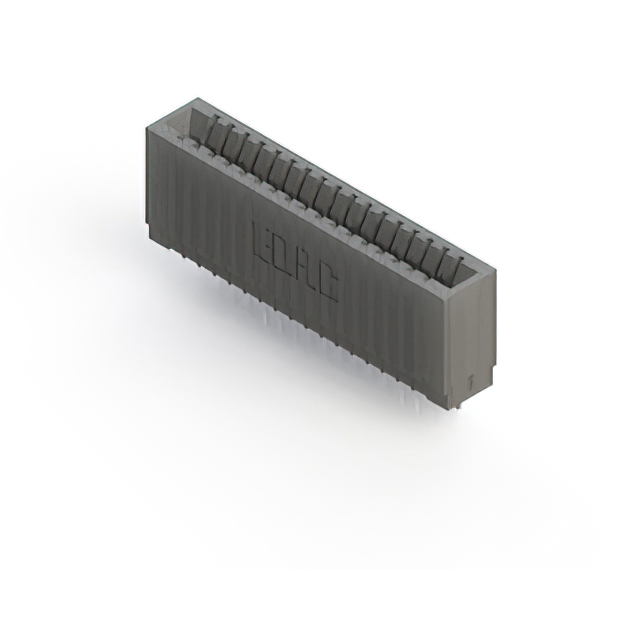

EDAC Inc. 745-017-541-101	Polyester Thermoplastic	1	Black	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Press-Fit Wire Wrap	Through Hole	Copper Alloy	Cantilever	Single	1	Non Specified - Single Edge	17	-40 C	105 ░C	30 Áin	0.76 Ám	Female
EDAC Inc. 745-017-541-106	Polyester Thermoplastic	1	Black	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Press-Fit Wire Wrap	Through Hole	Copper Alloy	Cantilever	Single	1	Non Specified - Single Edge	17	-40 C	105 ░C	30 Áin	0.76 Ám	Female
EDAC Inc. 745-017-540-101	Polyester Thermoplastic	1	Black	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Press-Fit Wire Wrap	Through Hole	Copper Alloy	Cantilever	Single	1	Non Specified - Single Edge	17	-40 C	105 ░C	30 Áin	0.76 Ám	Female
EDAC Inc. 745-017-520-106	Polyester Thermoplastic	1	Black	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Press-Fit	Through Hole	Copper Alloy	Cantilever	Single	1	Non Specified - Single Edge	17	-40 C	105 ░C	30 Áin	0.76 Ám	Female
EDAC Inc. 745-017-540-106	Polyester Thermoplastic	1	Black	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Press-Fit Wire Wrap	Through Hole	Copper Alloy	Cantilever	Single	1	Non Specified - Single Edge	17	-40 C	105 ░C	30 Áin	0.76 Ám	Female

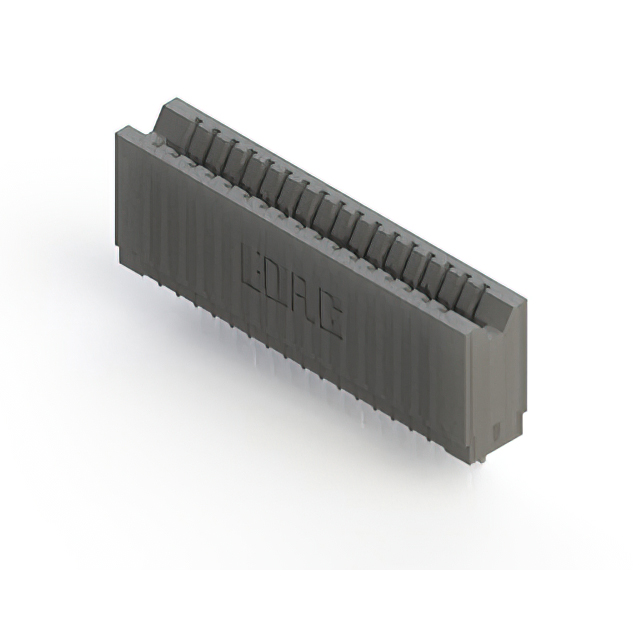

EDAC Inc. 745-017-522-106	Polyester Thermoplastic	1	Black	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Press-Fit	Through Hole	Copper Alloy	Cantilever	Single	1	Non Specified - Single Edge	17	-40 C	105 ░C	30 Áin	0.76 Ám	Female
EDAC Inc. 745-017-520-101	Polyester Thermoplastic	1	Black	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Press-Fit	Through Hole	Copper Alloy	Cantilever	Single	1	Non Specified - Single Edge	17	-40 C	105 ░C	30 Áin	0.76 Ám	Female

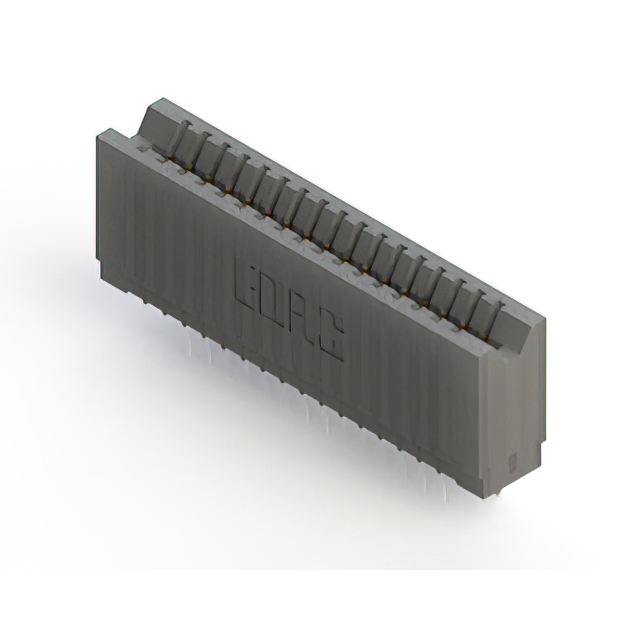

EDAC Inc. 745-017-525-106	Polyester Thermoplastic	1	Black	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Press-Fit	Through Hole	Copper Alloy	Cantilever	Single	1	Non Specified - Single Edge	17	-40 C	105 ░C	30 Áin	0.76 Ám	Female

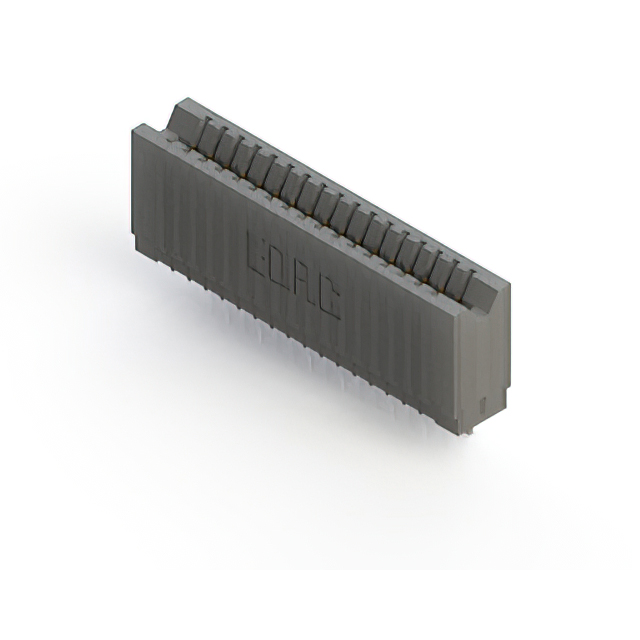

EDAC Inc. 745-017-545-106	Polyester Thermoplastic	1	Black	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Press-Fit	Through Hole	Copper Alloy	Cantilever	Single	1	Non Specified - Single Edge	17	-40 C	105 ░C	30 Áin	0.76 Ám	Female
EDAC Inc. 745-017-522-101	Polyester Thermoplastic	1	Black	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Press-Fit	Through Hole	Copper Alloy	Cantilever	Single	1	Non Specified - Single Edge	17	-40 C	105 ░C	30 Áin	0.76 Ám	Female
