TPS82695 Series

500-mA, High-Efficiency MicroSiP™ Step-Down Converter (Profile <1mm). Vout=2.5V

Catalog

500-mA, High-Efficiency MicroSiP™ Step-Down Converter (Profile <1mm). Vout=2.5V

Part	Frequency - Switching	Utilized IC / Part	Current - Output	Outputs and Type	Outputs and Type	Supplied Contents	Regulator Topology	Voltage - Output	Board Type	Main Purpose	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Number of Outputs	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Topology	Output Configuration	Mounting Type	Supplier Device Package	Output Type	Voltage - Output (Min/Fixed)	Function

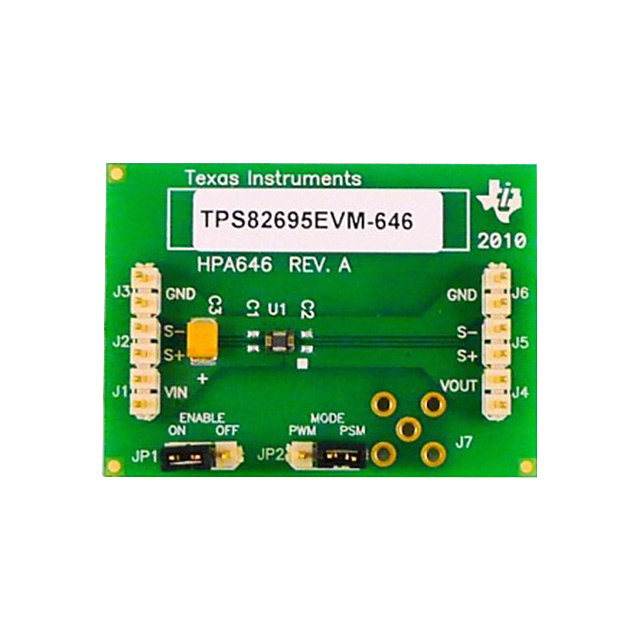

Texas Instruments TPS82695EVM-646	4 MHz	TPS82695	500 mA	Non-Isolated	1	Board(s)	Buck	2.5 V	Fully Populated	DC/DC Step Down	2.3 V	4.8 V
Texas Instruments TPS82695SIPT	4 MHz		500 mA										4.35 V	2.3 V	1	8-SMD Module	85 °C	-40 °C	Buck	Positive	Surface Mount	8-uSIP (2.9x2.3)	1.81 mOhm	2.5 V	Step-Down
Texas Instruments TPS82695SIPR	4 MHz		500 mA										4.35 V	2.3 V	1	8-SMD Module	85 °C	-40 °C	Buck	Positive	Surface Mount	8-uSIP (2.9x2.3)	1.81 mOhm	2.5 V	Step-Down

Catalog

500-mA, High-Efficiency MicroSiP™ Step-Down Converter (Profile <1mm). Vout=2.5V

Key Features

• Total Solution Size <6.7 mm295% Efficiency at 4MHz Operation24µA Quiescent CurrentHigh Duty-Cycle OperationLoad and Line Transient±2% Total DC Voltage AccuracyAutomatic PFM/PWM Mode SwitchingLow Ripple Light-Load PFM ModeExcellent AC Load RegulationInternal Soft Start, 130-µs Start-Up TimeIntegrated Active Power-Down Sequencing (Optional)Current Overload and Thermal Shutdown ProtectionSub 1-mm Profile SolutionTotal Solution Size <6.7 mm295% Efficiency at 4MHz Operation24µA Quiescent CurrentHigh Duty-Cycle OperationLoad and Line Transient±2% Total DC Voltage AccuracyAutomatic PFM/PWM Mode SwitchingLow Ripple Light-Load PFM ModeExcellent AC Load RegulationInternal Soft Start, 130-µs Start-Up TimeIntegrated Active Power-Down Sequencing (Optional)Current Overload and Thermal Shutdown ProtectionSub 1-mm Profile Solution

Description

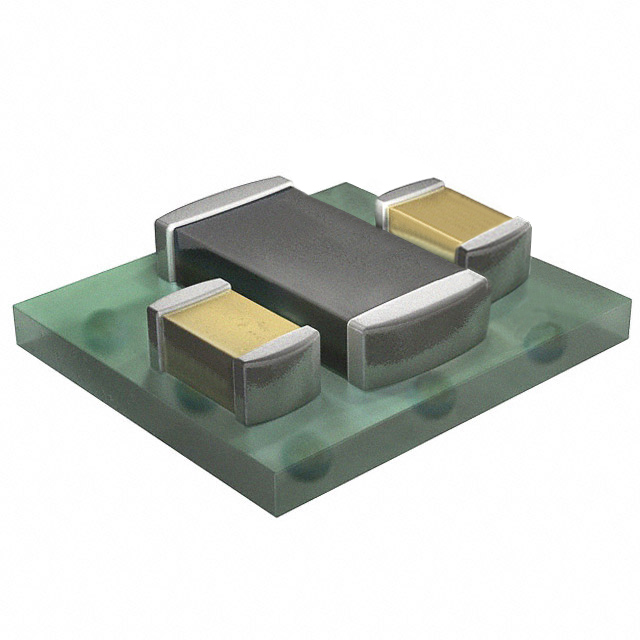

The TPS8269xSIP device is a complete 500mA, DC/DC step-down power supply intended for low-power applications. Included in the package are the switching regulator, inductor and input/output capacitors. No additional components are required to finish the design. The TPS8269xSIP is based on a high-frequency synchronous step-down dc-dc converter optimized for battery-powered portable applications. The MicroSIP DC/DC converter operates at a regulated 4-MHz switching frequency and enters the power-save mode operation at light load currents to maintain high efficiency over the entire load current range. The PFM mode extends the battery life by reducing the quiescent current to 24µA (typ) during light load operation. For noise-sensitive applications, the device has PWM spread spectrum capability providing a lower noise regulated output, as well as low noise at the input. These features, combined with high PSRR and AC load regulation performance, make this device suitable to replace a linear regulator to obtain better power conversion efficiency. The TPS8269xSIP is packaged in a compact (2.3mm x 2.9mm) and low profile (1.0mm) BGA package suitable for automated assembly by standard surface mount equipment. The TPS8269xSIP device is a complete 500mA, DC/DC step-down power supply intended for low-power applications. Included in the package are the switching regulator, inductor and input/output capacitors. No additional components are required to finish the design. The TPS8269xSIP is based on a high-frequency synchronous step-down dc-dc converter optimized for battery-powered portable applications. The MicroSIP DC/DC converter operates at a regulated 4-MHz switching frequency and enters the power-save mode operation at light load currents to maintain high efficiency over the entire load current range. The PFM mode extends the battery life by reducing the quiescent current to 24µA (typ) during light load operation. For noise-sensitive applications, the device has PWM spread spectrum capability providing a lower noise regulated output, as well as low noise at the input. These features, combined with high PSRR and AC load regulation performance, make this device suitable to replace a linear regulator to obtain better power conversion efficiency. The TPS8269xSIP is packaged in a compact (2.3mm x 2.9mm) and low profile (1.0mm) BGA package suitable for automated assembly by standard surface mount equipment.
