BC075 Series
Manufacturer: GCT
Beta
⌘K

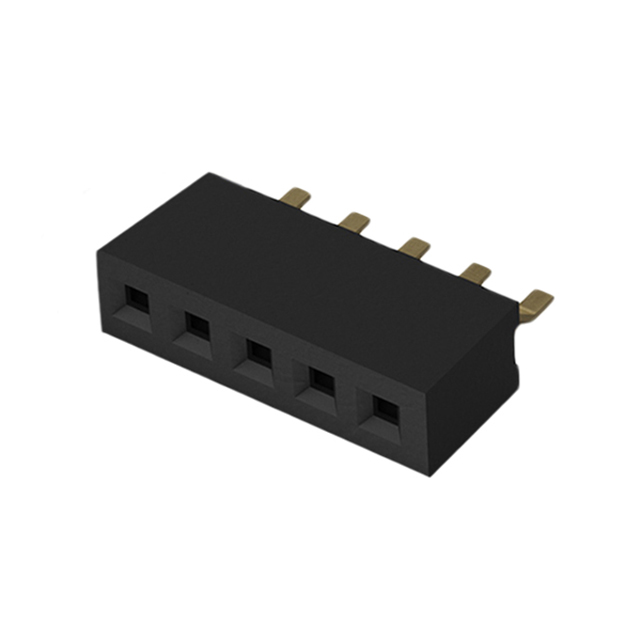

5POS 1.0MM PITCH SOCKET, SIL, SM
| Part | Contact Shape | Insulation Material | Contact Finish Thickness - Post | Contact Material | Insulation Height | Insulation Height | Number of Positions Loaded | Contact Finish - Mating | Connector Type | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Post | Insulation Color | Number of Rows | Material Flammability Rating | Voltage Rating | Current Rating (Amps) | Termination | Pitch - Mating | Pitch - Mating | Fastening Type | Contact Type | Contact Finish Thickness - Mating | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Square | Liquid Crystal Polymer (LCP) | Flash | Phosphor Bronze | 0.059 in | 1.5 mm | All | Gold | Receptacle | 5 | -40 C | 105 ░C | Gold | Black | 1 | UL94 V-0 | 250 V | 1 A | Solder | 1 mm | 0.039 in | Push-Pull | Female Socket | Flash | Right Angle Surface Mount |
