745-036 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 36POS 0.100

Part	Termination Rows	Material - Insulation	Read Out	Card Thickness [Max]	Card Thickness [Min]	Contact Material	Termination	Contact Finish	Number of Rows	Number of Positions/Bay/Row	Contact Type	Pitch	Pitch	Number of Positions	Card Type	Contact Finish Thickness	Contact Finish Thickness	Gender	Mounting Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Termination Rows [custom]	Number of Rows [custom]	Number of Positions/Bay/Row [custom]

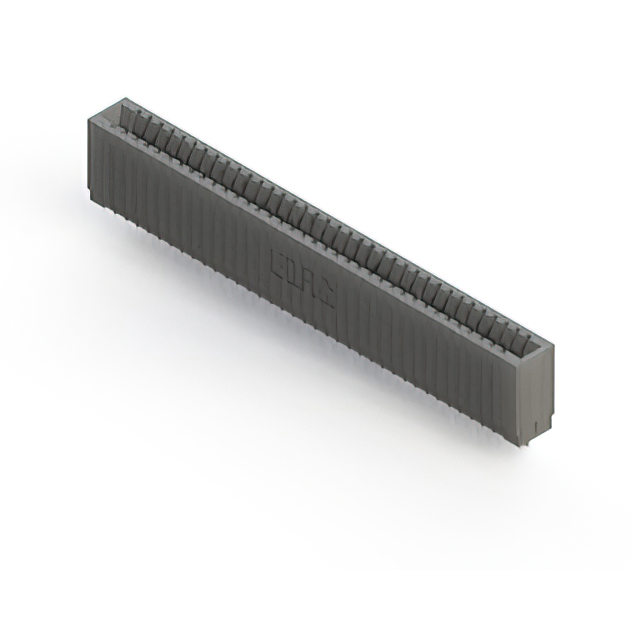

EDAC Inc. 745-036-541-101	1	Polyester Thermoplastic	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Press-Fit Wire Wrap	Gold	1	36	Cantilever	0.1 "	2.54 mm	36	Non Specified - Single Edge	30 Áin	0.76 Ám	Female	Through Hole	Black	-40 C	105 ░C

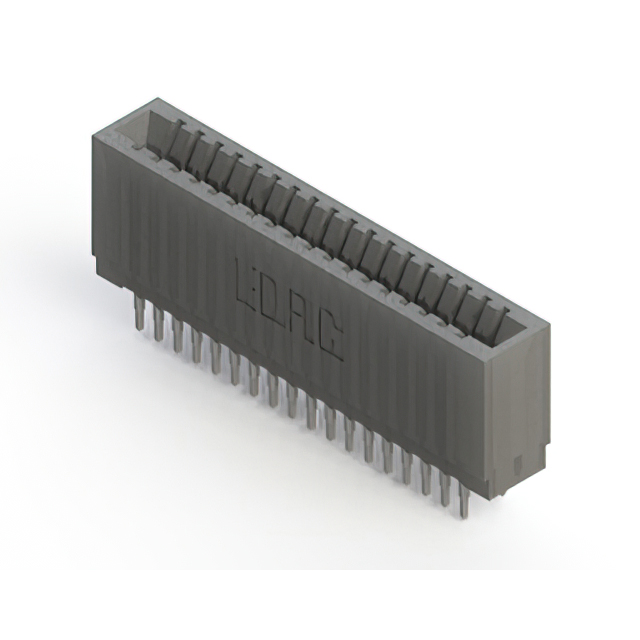

EDAC Inc. 745-036-520-201		Polyester Thermoplastic	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Press-Fit	Gold			Cantilever	0.1 "	2.54 mm	36	Non Specified - Dual Edge	30 Áin	0.76 Ám	Female	Through Hole	Black	-40 C	105 ░C	2	2	18
EDAC Inc. 745-036-541-206		Polyester Thermoplastic	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Press-Fit Wire Wrap	Gold			Cantilever	0.1 "	2.54 mm	36	Non Specified - Dual Edge	30 Áin	0.76 Ám	Female	Through Hole	Black	-40 C	105 ░C	2	2	18

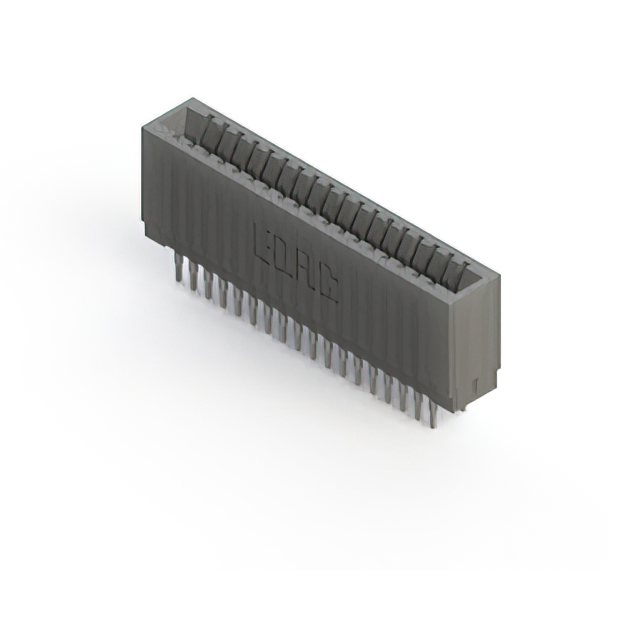

EDAC Inc. 745-036-541-201		Polyester Thermoplastic	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Press-Fit Wire Wrap	Gold			Cantilever	0.1 "	2.54 mm	36	Non Specified - Dual Edge	30 Áin	0.76 Ám	Female	Through Hole	Black	-40 C	105 ░C	2	2	18
EDAC Inc. 745-036-525-206		Polyester Thermoplastic	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Press-Fit	Gold			Cantilever	0.1 "	2.54 mm	36	Non Specified - Dual Edge	30 Áin	0.76 Ám	Female	Through Hole	Black	-40 C	105 ░C	2	2	18
EDAC Inc. 745-036-540-201		Polyester Thermoplastic	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Press-Fit Wire Wrap	Gold			Cantilever	0.1 "	2.54 mm	36	Non Specified - Dual Edge	30 Áin	0.76 Ám	Female	Through Hole	Black	-40 C	105 ░C	2	2	18

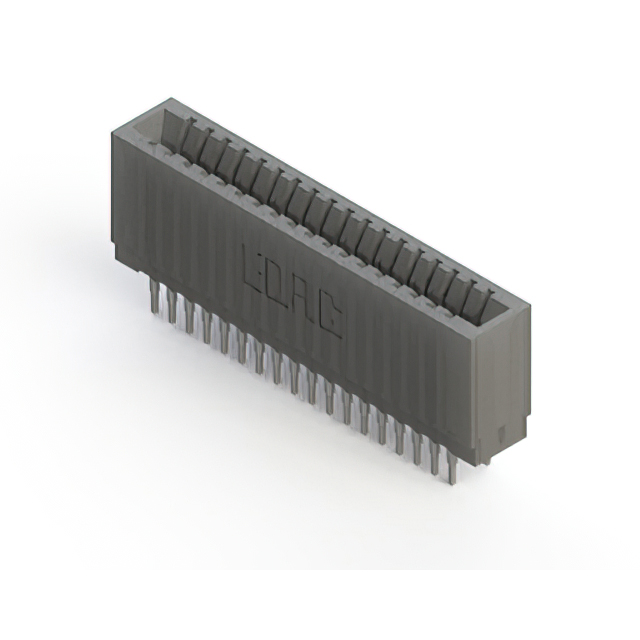

EDAC Inc. 745-036-522-201		Polyester Thermoplastic	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Press-Fit	Gold			Cantilever	0.1 "	2.54 mm	36	Non Specified - Dual Edge	30 Áin	0.76 Ám	Female	Through Hole	Black	-40 C	105 ░C	2	2	18
EDAC Inc. 745-036-520-206		Polyester Thermoplastic	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Press-Fit	Gold			Cantilever	0.1 "	2.54 mm	36	Non Specified - Dual Edge	30 Áin	0.76 Ám	Female	Through Hole	Black	-40 C	105 ░C	2	2	18
