5504FE Series
Manufacturer: Belden Inc.
Beta
⌘K

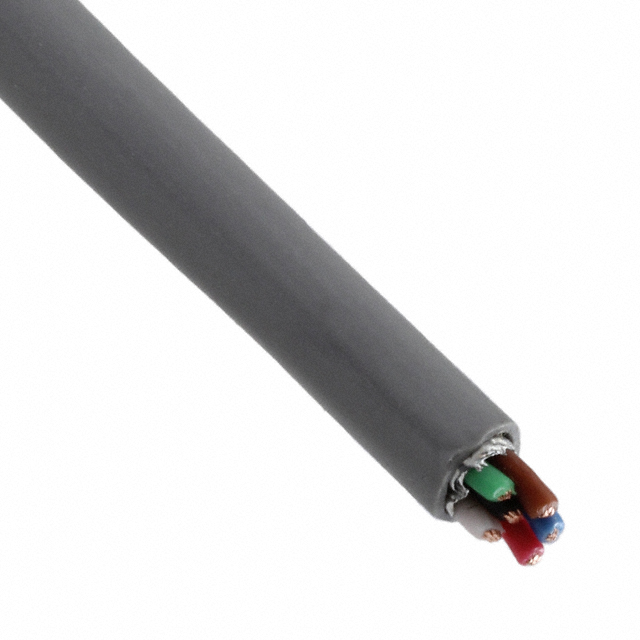

MULTICONDUCTOR CABLE, SECURITY AUDIO, SHIELDED, 6 CONDUCTOR, 22 AWG, 500 FT, 152.4 M
| Part | Shield Material | Shield Coverage | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Conductor Material | Jacket Color | Usage | Ratings | Number of Conductors | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Features | Jacket (Insulation) Material | Length | Length | Conductor Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | 30 AWG | 7 | 22 AWG | Copper Bare | Gray | Alarm Security Sound | UL Style CMR | 6 | Foil | 0.017 " | 0.432 mm | Multi-Conductor | Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) Riser | 152.4 m | 500 ft | Polypropylene (PP) |
