C3DEG-2 Series

Catalog

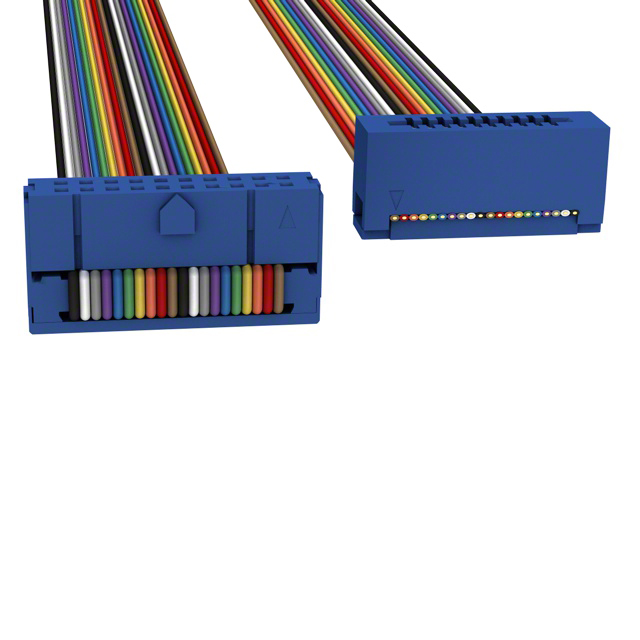

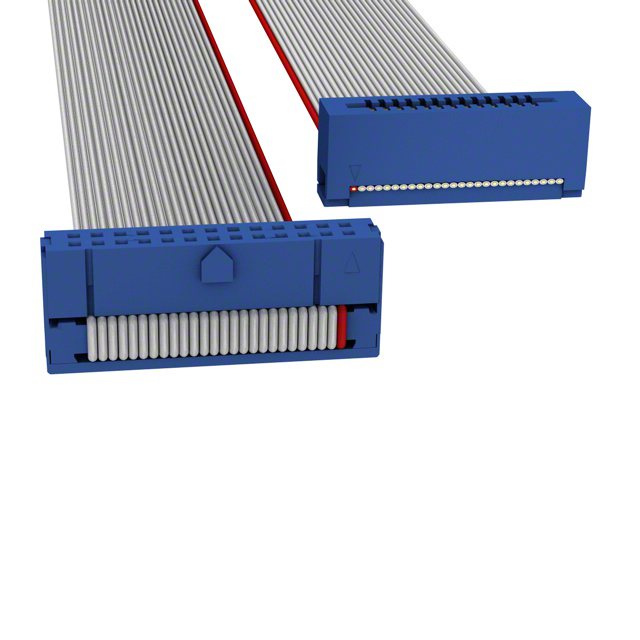

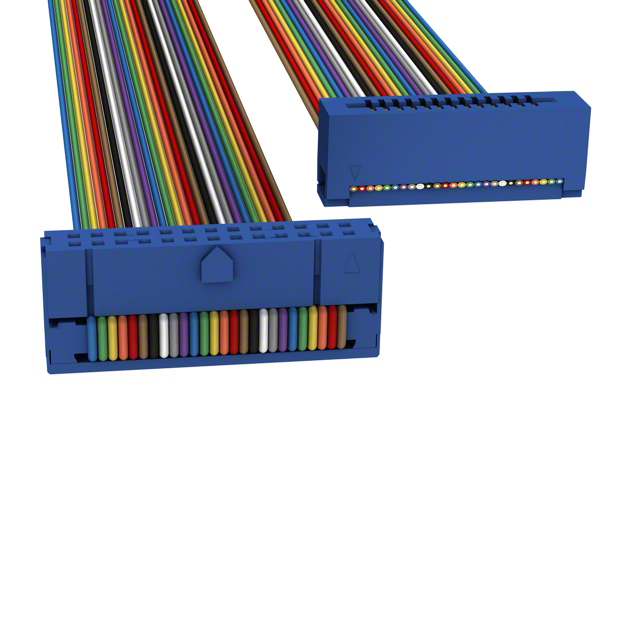

IDC CABLE - CKR20G/AE20G/CCE20G

Part	Number of Positions	Length	Length	Length	Number of Rows [custom]	Pitch - Cable	Pitch - Cable	Cable Termination	Shielding	Connector Type	Pitch - Connector	Pitch - Connector	Contact Finish	Features	Contact Finish Thickness	Contact Finish Thickness	Color	Length [x]	Length [x]
CW Industries C3DEG-2006G	20	152.4 mm	0.5 '	6 "	2	0.05 in	1.27 mm	IDC	Unshielded	Socket to Card Edge	0.1 in	2.54 mm	Gold	Polarizing Key Strain Relief	0.25 Ám	10 Áin
CW Industries C3DEG-2006M	20	152.4 mm	0.5 '	6 "	2	0.05 in	1.27 mm	IDC	Unshielded	Socket to Card Edge	0.1 in	2.54 mm	Gold	Polarizing Key Strain Relief	0.25 Ám	10 Áin	Multiple Ribbon
CW Industries C3DEG-2636M	26	91.44 cm	3 ft		2	0.05 in	1.27 mm	IDC	Unshielded	Socket to Card Edge	0.1 in	2.54 mm	Gold	Polarizing Key Strain Relief	0.25 Ám	10 Áin	Multiple Ribbon
CW Industries C3DEG-2606M	26	152.4 mm	0.5 '	6 "	2	0.05 in	1.27 mm	IDC	Unshielded	Socket to Card Edge	0.1 in	2.54 mm	Gold	Polarizing Key Strain Relief	0.25 Ám	10 Áin	Multiple Ribbon
CW Industries C3DEG-2618M	26				2	0.05 in	1.27 mm	IDC	Unshielded	Socket to Card Edge	0.1 in	2.54 mm	Gold	Polarizing Key Strain Relief	0.25 Ám	10 Áin	Multiple Ribbon	457.2 mm	1.5 ft
CW Industries C3DEG-2618G	26				2	0.05 in	1.27 mm	IDC	Unshielded	Socket to Card Edge	0.1 in	2.54 mm	Gold	Polarizing Key Strain Relief	0.25 Ám	10 Áin		457.2 mm	1.5 ft
CW Industries C3DEG-2018G	20				2	0.05 in	1.27 mm	IDC	Unshielded	Socket to Card Edge	0.1 in	2.54 mm	Gold	Polarizing Key Strain Relief	0.25 Ám	10 Áin		457.2 mm	1.5 ft
CW Industries C3DEG-2636G	26	91.44 cm	3 ft		2	0.05 in	1.27 mm	IDC	Unshielded	Socket to Card Edge	0.1 in	2.54 mm	Gold	Polarizing Key Strain Relief	0.25 Ám	10 Áin
CW Industries C3DEG-2036M	20	91.44 cm	3 ft		2	0.05 in	1.27 mm	IDC	Unshielded	Socket to Card Edge	0.1 in	2.54 mm	Gold	Polarizing Key Strain Relief	0.25 Ám	10 Áin	Multiple Ribbon
CW Industries C3DEG-2018M	20				2	0.05 in	1.27 mm	IDC	Unshielded	Socket to Card Edge	0.1 in	2.54 mm	Gold	Polarizing Key Strain Relief	0.25 Ám	10 Áin	Multiple Ribbon	457.2 mm	1.5 ft
