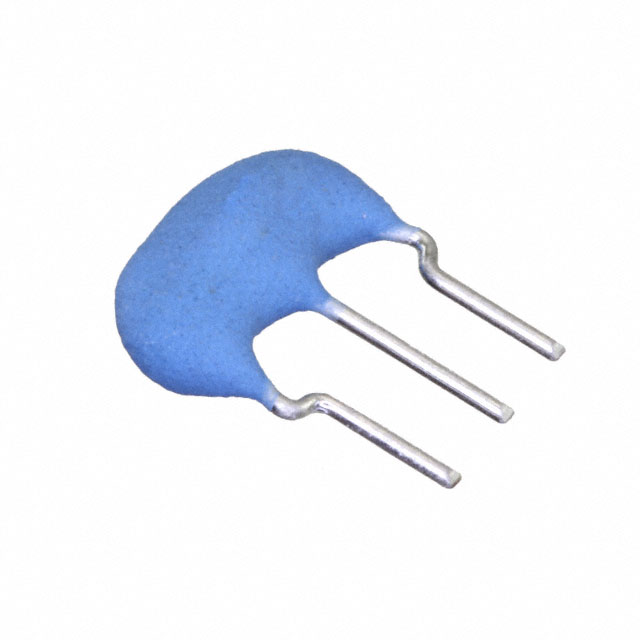

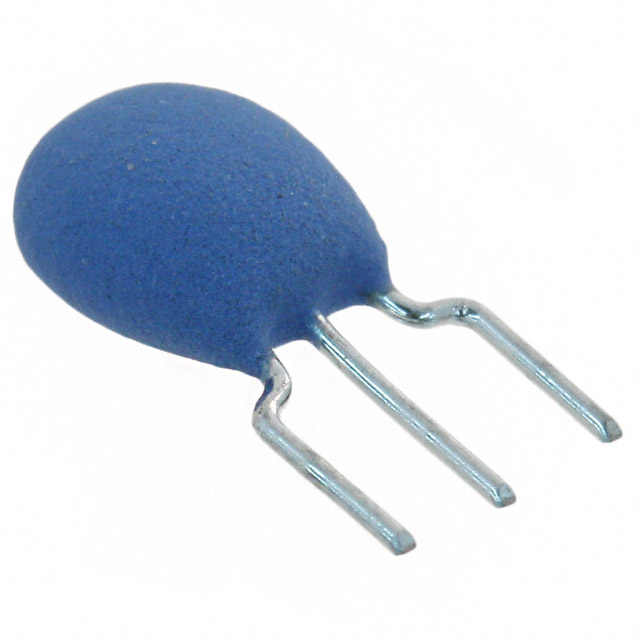

CSTLS Series

Catalog

CERAMIC RES 3.5800MHZ 15PF T/H

Part	Mounting Type	Features	Capacitance	Height [z]	Height [z]	Operating Temperature [Max]	Operating Temperature [Min]	Frequency Tolerance	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Frequency	Type	Impedance	Frequency Stability [Max]	Frequency Stability [Min]
Murata Electronics CSTLS3M58G53-A0	Through Hole	Built in Capacitor	15 pF	0.236 in	6 mm	80 °C	-20 ░C	0.5 %	Radial - 3 Lead 2.50mm Pitch	0.118 in	8 mm	3 mm	0.315 in	3.58 MHz	Ceramic	50 Ohms
Murata Electronics CSTLS6M00G53-A0	Through Hole	Built in Capacitor	15 pF	0.236 in	6 mm	80 °C	-20 ░C	0.5 %	Radial - 3 Lead 2.50mm Pitch	0.118 in	8 mm	3 mm	0.315 in	6 MHz	Ceramic	30 Ohms
Murata Electronics CSTLS4M60G53-A0	Through Hole			0.236 in	6 mm				Radial - 3 Lead 2.50mm Pitch	0.118 in	8 mm	3 mm	0.315 in
Murata Electronics CSTLS16M9X55-A0	Through Hole	Built in Capacitor	30 pF			80 °C	-20 ░C	0.5 %	Radial - 3 Lead 2.50mm Pitch	0.138 in	5.5 mm	3.5 mm	0.217 in	16.934 MHz	Ceramic	50 Ohms
Murata Electronics CSTLS3M54G56-B0	Through Hole			0.236 in	6 mm				Radial - 3 Lead 2.50mm Pitch	0.118 in	8 mm	3 mm	0.315 in
Murata Electronics CSTLS4M00G53-B0	Through Hole	Built in Capacitor	15 pF	0.236 in	6 mm	80 °C	-20 ░C	0.5 %	Radial - 3 Lead 2.50mm Pitch	0.118 in	8 mm	3 mm	0.315 in	4 MHz	Ceramic	30 Ohms
Murata Electronics CSTLS4M00G53Z-B0	Through Hole	Built in Capacitor	15 pF	0.236 in	6 mm	125 °C	-40 C	0.5 %	Radial - 3 Lead 2.50mm Pitch	0.118 in	8 mm	3 mm	0.315 in	4 MHz	Ceramic	30 Ohms
Murata Electronics CSTLS4M09G56-A0	Through Hole	Built in Capacitor	47 pF	0.236 in	6 mm	80 °C	-20 ░C	0.5 %	Radial - 3 Lead 2.50mm Pitch	0.118 in	8 mm	3 mm	0.315 in	4.096 MHz	Ceramic	30 Ohms	20 %	-40 %
Murata Electronics CSTLS20M0X53Z-B0	Through Hole	Built in Capacitor	15 pF			125 °C	-40 C	0.5 %	Radial - 3 Lead 2.50mm Pitch	0.138 in	5.5 mm	3.5 mm	0.217 in	20 MHz	Ceramic
Murata Electronics CSTLS4M00G56-A0	Through Hole	Built in Capacitor	47 pF	0.236 in	6 mm	80 °C	-20 ░C	0.5 %	Radial - 3 Lead 2.50mm Pitch	0.118 in	8 mm	3 mm	0.315 in	4 MHz	Ceramic	30 Ohms
