1825140 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

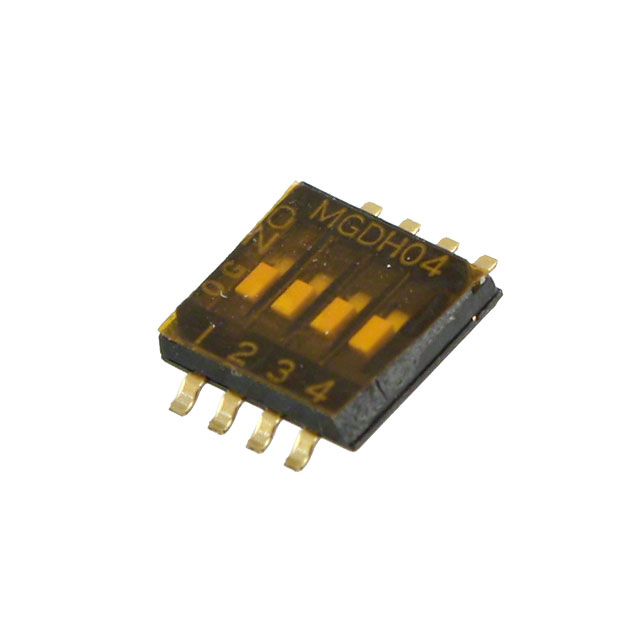

SWITCH SLIDE DIP SPST 0.025A 24V
| Part | Termination Style | Mechanical Life | Features | Body Material | Mounting Type | Actuator Level | Length [custom] | Length [custom] | Number of Positions | Electrical Life | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Circuit | Washable | Actuator Type | Height Above Board | Height Above Board | Contact Material | Pitch [x] | Pitch [x] | Voltage Rating | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Gull Wing | 1000 Cycles | Tape Seal | Polyphenylene Sulfide (PPS) | Surface Mount | Flush Recessed | 0.244 in | 6.2 mm | 4 | 1000 Cycles | -30 ░C | 85 °C | Gold | SPST | Slide (Standard) | 1.7 mm | 0.067 in | Copper Alloy | 0.05 in | 1.27 mm | 24 VDC | 25 mA |
