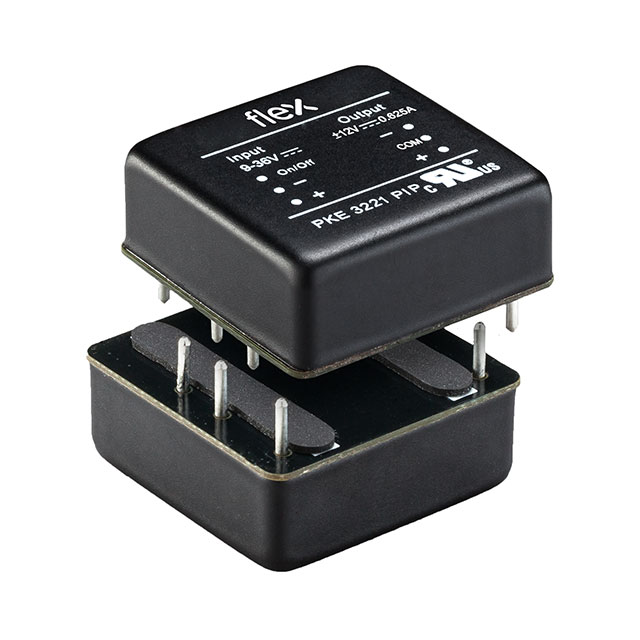

PKE321 Series
Manufacturer: Flex Power Modules
Beta
⌘K
DC DC CONVERTER 15V 15W
| Part | Standard Number | Approval Agency | Current - Output (Max) | Power (Watts) | Type | Efficiency | Operating Temperature (Min) | Operating Temperature (Max) | Package / Case | Voltage - Isolation | Control Features | Voltage - Output 1 | Voltage - Input (Min) | Applications | Mounting Type | Voltage - Input (Max) | Features | Number of Outputs | Size / Dimension Height | Size / Dimension Width | Size / Dimension Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Flex Power Modules | 62368-1 | CB CSA IEC TUV UL | 1 A | 15 W | Isolated Module | 88.8 % | -40 °C | 110 °C | 6-DIP Module | 1500 Vrns | Active Low Enable | 15 V | 9 V | ITE (Commercial) | Through Hole | 36 V | Adjustable Output Remote On/Off | 1 | 0.43 in | 1 in | 1 in |
Flex Power Modules | 62368-1 | CB CSA IEC TUV UL | 3 A | 15 W | Isolated Module | 89.9 % | -40 °C | 110 °C | 6-DIP Module | 1500 Vrns | Active Low Enable | 5 V | 9 V | ITE (Commercial) | Through Hole | 36 V | Adjustable Output Remote On/Off | 1 | 0.43 in | 1 in | 1 in |
Flex Power Modules | 62368-1 | CB CSA IEC TUV UL | 1.25 A | 15 W | Isolated Module | 89 % | -40 °C | 110 °C | 6-DIP Module | 1500 Vrns | Active Low Enable | 12 V | 9 V | ITE (Commercial) | Through Hole | 36 V | Adjustable Output Remote On/Off | 1 | 0.43 in | 1 in | 1 in |
Flex Power Modules | 62368-1 | CB CSA IEC TUV UL | 4.5 A | 15 W | Isolated Module | 88.2 % | -40 °C | 110 °C | 6-DIP Module | 1500 Vrns | Active Low Enable | 3.3 V | 9 V | ITE (Commercial) | Through Hole | 36 V | Adjustable Output Remote On/Off | 1 | 0.43 in | 1 in | 1 in |
