98414 Series

Catalog

CONN HEADER VERT 46POS 2MM

...

Part	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Pitch - Mating [x]	Pitch - Mating [x]	Mounting Type	Contact Shape	Shrouding	Termination	Contact Type	Contact Length - Post	Contact Length - Post	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Contact Finish - Post	Features	Insulation Color	Style	Voltage Rating	Material Flammability Rating	Connector Type	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Number of Rows	Insulation Height	Insulation Height	Number of Positions	Contact Material	Number of Positions Loaded	Contact Finish Thickness - Mating
Amphenol ICC (FCI) 98414-G06-46ULF	4 mm	0.157 in	2 çm	78.7 çin	2 A	0.079 in	2 mm	Through Hole	Square	Shrouded - 4 Wall	Solder	Male Pin	2.5 mm	0.098 in	0.079 in	2 mm	Thermoplastic	Tin	Keying Slot	Cream	Board to Board Cable	200 V	UL94 V-0	Header	Latch Holder	30 Áin	0.76 Ám	Gold GXT™	2	5.9 mm	0.232 in	46	Copper Alloy	All

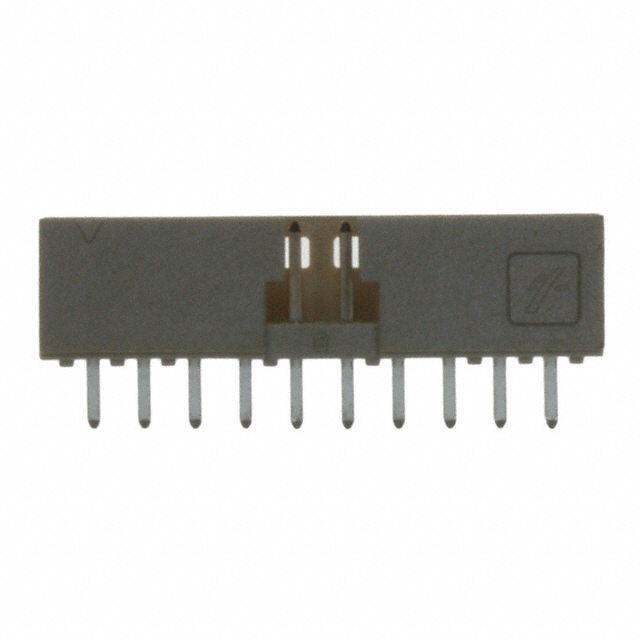

Amphenol ICC (FCI) 98414-G06-20ULF	4 mm	0.157 in	2 çm	78.7 çin	2 A	0.079 in	2 mm	Through Hole	Square	Shrouded - 4 Wall	Solder	Male Pin	2.5 mm	0.098 in	0.079 in	2 mm	Thermoplastic	Tin	Keying Slot	Cream	Board to Board Cable	200 V	UL94 V-0	Header	Latch Holder	30 Áin	0.76 Ám	Gold GXT™	2	5.9 mm	0.232 in	20	Copper Alloy	All
Amphenol ICC (FCI) 98414-F06-26U	4 mm	0.157 in	2 çm	78.7 çin	2 A	0.079 in	2 mm	Through Hole	Square	Shrouded - 4 Wall	Solder	Male Pin	2.5 mm	0.098 in	0.079 in	2 mm	Thermoplastic	Tin	Keying Slot	Cream	Board to Board Cable	200 V	UL94 V-0	Header	Latch Holder			Gold GXT™	2	5.9 mm	0.232 in	26	Copper Alloy	All	Flash

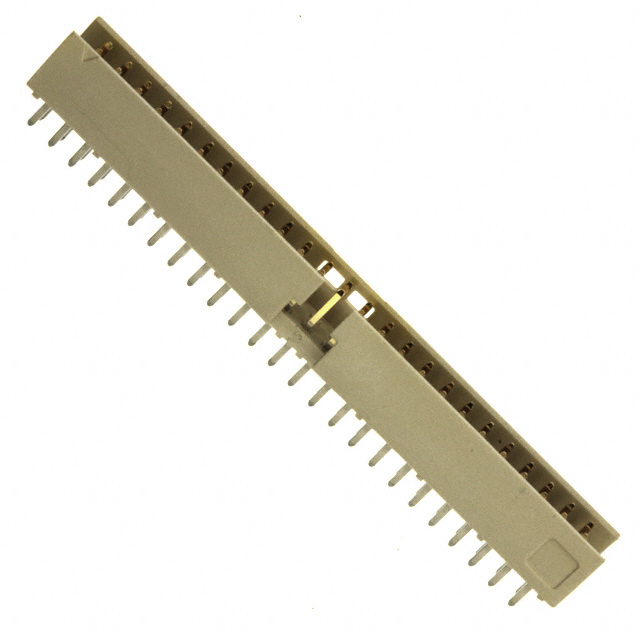

Amphenol ICC (FCI) 98414-G06-50ULF	4 mm	0.157 in	2 çm	78.7 çin	2 A	0.079 in	2 mm	Through Hole	Square	Shrouded - 4 Wall	Solder	Male Pin	2.5 mm	0.098 in	0.079 in	2 mm	Thermoplastic	Tin	Keying Slot	Cream	Board to Board Cable	200 V	UL94 V-0	Header	Latch Holder	30 Áin	0.76 Ám	Gold GXT™	2	5.9 mm	0.232 in	50	Copper Alloy	All
Amphenol ICC (FCI) 98414-F10-30ULF	4 mm	0.157 in	2 çm	78.7 çin	2 A	0.079 in	2 mm	Through Hole	Square	Shrouded - 4 Wall	Solder	Male Pin	3.7 mm	0.146 in	0.079 in	2 mm	Thermoplastic	Tin	Keying Slot	Cream	Board to Board Cable	200 V	UL94 V-0	Header	Latch Holder			Gold GXT™	2	5.9 mm	0.232 in	30	Copper Alloy	All	Flash
Amphenol ICC (FCI) 98414-F06-48LF	4 mm	0.157 in	2 çm	78.7 çin	2 A	0.079 in	2 mm	Through Hole	Square	Shrouded - 4 Wall	Solder	Male Pin	2.5 mm	0.098 in	0.079 in	2 mm	Thermoplastic	Tin	Keying Slot	Cream	Board to Board Cable	200 V	UL94 V-0	Header	Latch Holder			Gold GXT™	2	5.9 mm	0.232 in	48	Copper Alloy	All	Flash

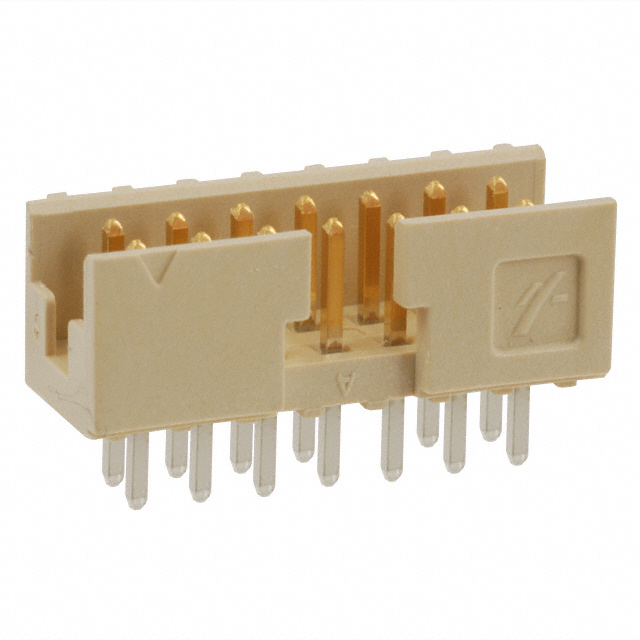

Amphenol ICC (FCI) 98414-G06-14LF	4 mm	0.157 in	2 çm	78.7 çin	2 A	0.079 in	2 mm	Through Hole	Square	Shrouded - 4 Wall	Solder	Male Pin	2.5 mm	0.098 in	0.079 in	2 mm	Thermoplastic	Tin	Keying Slot	Cream	Board to Board Cable	200 V	UL94 V-0	Header	Latch Holder	30 Áin	0.76 Ám	Gold GXT™	2	5.9 mm	0.232 in	14	Copper Alloy	All

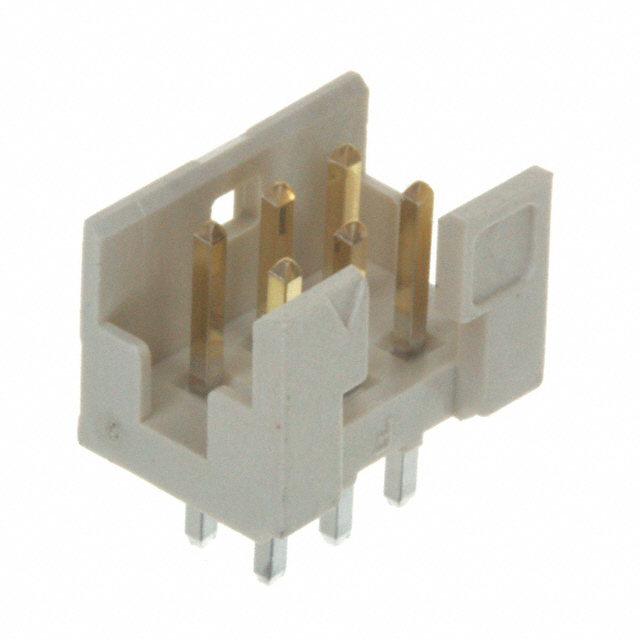

Amphenol ICC (FCI) 98414-G06-06LF	4 mm	0.157 in	2 çm	78.7 çin	2 A	0.079 in	2 mm	Through Hole	Square	Shrouded - 4 Wall	Solder	Male Pin	2.5 mm	0.098 in	0.079 in	2 mm	Thermoplastic	Tin	Keying Slot	Cream	Board to Board Cable	200 V	UL94 V-0	Header	Latch Holder	30 Áin	0.76 Ám	Gold GXT™	2	5.9 mm	0.232 in	6	Copper Alloy	All
Amphenol ICC (FCI) 98414-G08-26ULF	4 mm	0.157 in	2 çm	78.7 çin	2 A	0.079 in	2 mm	Through Hole	Square	Shrouded - 4 Wall	Solder	Male Pin	3.1 mm	0.122 "	0.079 in	2 mm	Thermoplastic	Tin	Keying Slot	Cream	Board to Board Cable	200 V	UL94 V-0	Header	Latch Holder	30 Áin	0.76 Ám	Gold GXT™	2	5.9 mm	0.232 in	26	Copper Alloy	All
Amphenol ICC (FCI) 98414-G06-44ULF	4 mm	0.157 in	2 çm	78.7 çin	2 A	0.079 in	2 mm	Through Hole	Square	Shrouded - 4 Wall	Solder	Male Pin	2.5 mm	0.098 in	0.079 in	2 mm	Thermoplastic	Tin	Keying Slot	Cream	Board to Board Cable	200 V	UL94 V-0	Header	Latch Holder	30 Áin	0.76 Ám	Gold GXT™	2	5.9 mm	0.232 in	44	Copper Alloy	All
