9774 Series
Manufacturer: Belden Inc.
Beta
⌘K

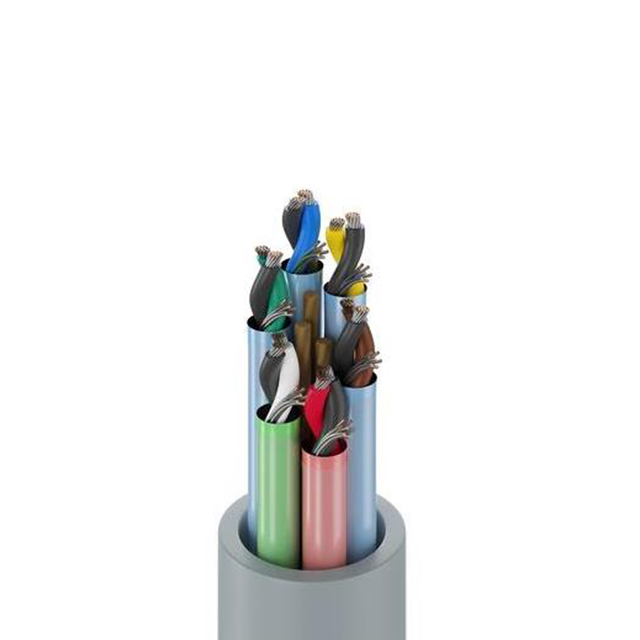

MULTI-PAIR 12COND 18AWG
| Part | Shield Coverage | Shield Material | Usage | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length [x] | Length [x] | Shield Type | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Jacket Color | Cable Type | Features | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Material | Conductor Material | Number of Conductors | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Audio Control Instrumentation | UL Style 2919 | 14.22 mm | 0.56 in | 100 ft | 30.5 m | Foil | Polypropylene (PP) | 0.052 in | 1.321 mm | 18 AWG | Chrome | Multi-Pair | Drain Wire | 30 AWG | 19 | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | Copper Tinned | 12 | ||
 Belden Inc. | 100 % | Aluminum | Audio Control Instrumentation | UL Style 2919 | 14.22 mm | 0.56 in | Foil | Polypropylene (PP) | 0.052 in | 1.321 mm | 18 AWG | Chrome | Multi-Pair | Drain Wire | 30 AWG | 19 | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | Copper Tinned | 12 | 304.8 m | 1000 ft | ||
Belden Inc. | 100 % | Aluminum | Audio Control Instrumentation | UL Style 2919 | 14.22 mm | 0.56 in | Foil | Polypropylene (PP) | 0.052 in | 1.321 mm | 18 AWG | Chrome | Multi-Pair | Drain Wire | 30 AWG | 19 | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | Copper Tinned | 12 |
