4243 Series

Catalog

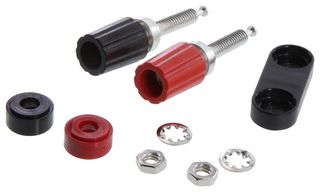

BINDING POST, DOUBLE, 4243 SERIES, 15 A, 60 VDC, TIN PLATED CONTACTS, PANEL MOUNT, RED

Part	Material - Insulation	Head Size [diameter]	Head Size [diameter]	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Voltage Rating	Nut Material	Cross Hole Diameter	Cross Hole Diameter	Termination Thread	Termination	Current Rating (Amps)	Material - Body	Color	Type	Plating - Body
Pomona Electronics 4243-2#	Polycarbonate (PC)	0.44 "	11.18 mm	0.25 "	6.35 mm	1.57 mm	0.062 in	30 VAC 60 VDC	Brass	0.1 in	2.54 mm	8-32	Threaded and Turret	15 A	Brass	Black Red	Dual Standard	Tin
Pomona Electronics 4243-0#	Polycarbonate (PC)	0.44 "	11.18 mm	0.25 "	6.35 mm	1.57 mm	0.062 in	30 VAC 60 VDC	Brass	0.1 in	2.54 mm	8-32	Threaded and Turret	15 A	Brass	Black Red	Dual Standard	Tin
Pomona Electronics 4243-2	Polycarbonate (PC)	0.44 "	11.18 mm	0.25 "	6.35 mm	1.57 mm	0.062 in	30 VAC 60 VDC	Brass	0.1 in	2.54 mm	8-32	Threaded and Turret	15 A	Brass	Black Red	Dual Standard	Tin
Pomona Electronics 4243-0	Polycarbonate (PC)	0.44 "	11.18 mm	0.25 "	6.35 mm	1.57 mm	0.062 in	30 VAC 60 VDC	Brass	0.1 in	2.54 mm	8-32	Threaded and Turret	15 A	Brass	Black Red	Dual Standard	Tin
