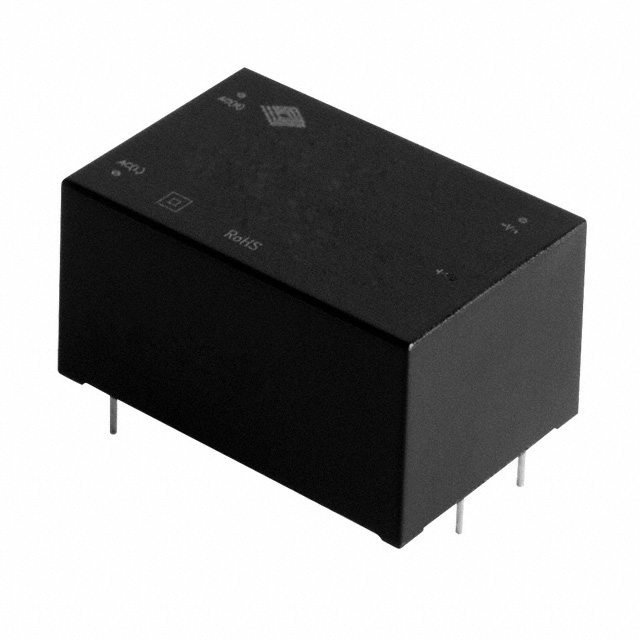

VSK-S1 Series

Manufacturer: CUI Inc.

Catalog

AC/DC CONVERTER 12V 1W

Part	Applications	Efficiency	Features	Voltage - Output 1	Standard Number	Weight [custom]	Weight [custom]	Current - Output (Max) [Max]	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Load Regulation	Mounting Type	Type	Line Regulation	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Line Regulation
CUI Inc. VSK-S1-12U	ITE (Commercial)	73 %	Universal Input	12 V	55024 55032 Class A 60950-1 61000-3-2 61000-3-3	0.044 lb	19.96 g	83 mA	CE cURus EN UL	305 VAC	85 VAC	1	70 °C	-25 °C	4-DIP Module	±5%	Through Hole	Enclosed	2 %	0.71 in	18 mm	0.87 in	22.2 mm	1.33 in	33.7 mm
CUI Inc. VSK-S1-9U	ITE (Commercial)	72 %	Universal Input	9 V	55024 55032 Class A 60950-1 61000-3-2 61000-3-3	0.044 lb	19.96 g	111 mA	CE cURus EN UL	305 VAC	85 VAC	1	70 °C	-25 °C	4-DIP Module	±5%	Through Hole	Enclosed	2 %	0.71 in	18 mm	0.87 in	22.2 mm	1.33 in	33.7 mm
CUI Inc. VSK-S1-15U	ITE (Commercial)	74 %	Universal Input	15 V	55024 55032 Class A 60950-1 61000-3-2 61000-3-3	0.044 lb	19.96 g	67 mA	CE cURus EN UL	305 VAC	85 VAC	1	70 °C	-25 °C	4-DIP Module	±5% Ý5%	Through Hole	Enclosed	2 %	0.71 in	18 mm	0.87 in	22.2 mm	1.33 in	33.7 mm	Ý2%
CUI Inc. VSK-S1-24U	ITE (Commercial)	75 %	Universal Input	24 V	55024 55032 Class A 60950-1 61000-3-2 61000-3-3	0.044 lb	19.96 g	42 mA	CE cURus EN UL	305 VAC	85 VAC	1	70 °C	-25 °C	4-DIP Module	±5%	Through Hole	Enclosed	2 %	0.71 in	18 mm	0.87 in	22.2 mm	1.33 in	33.7 mm
CUI Inc. VSK-S1-3R3U	ITE (Commercial)	63 %	Universal Input	3.3 V	55024 55032 Class A 60950-1 61000-3-2 61000-3-3	0.044 lb	19.96 g	0.3 A	CE cURus EN UL	305 VAC	85 VAC	1	70 °C	-25 °C	4-DIP Module	±5%	Through Hole	Enclosed	2 %	0.71 in	18 mm	0.87 in	22.2 mm	1.33 in	33.7 mm
CUI Inc. VSK-S1-5U	ITE (Commercial)	68 %	Universal Input	5 V	55024 55032 Class A 60950-1 61000-3-2 61000-3-3	0.044 lb	19.96 g	200 mA	CE cURus EN UL	305 VAC	85 VAC	1	70 °C	-25 °C	4-DIP Module	±5%	Through Hole	Enclosed	2 %	0.71 in	18 mm	0.87 in	22.2 mm	1.33 in	33.7 mm
