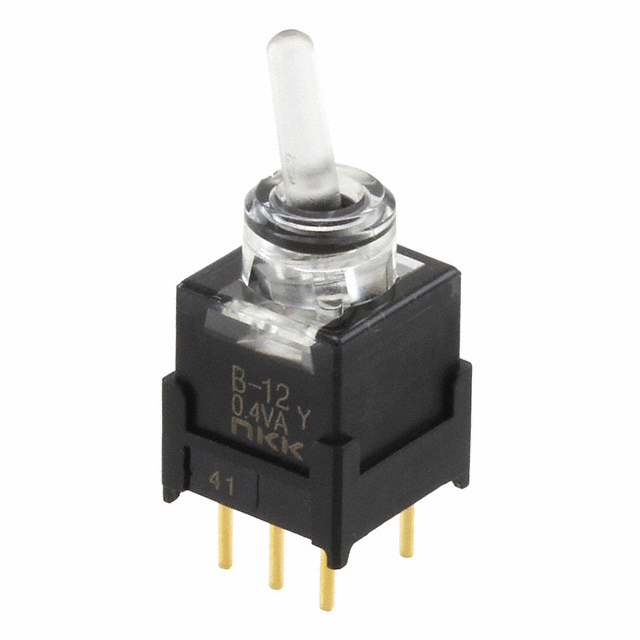

B12JJ Series

Catalog

SUBMINIATURE FULLY ILLUMINATED TOGGLE

Part	Electrical Life	Actuator Material	Actuator Length [x]	Features	Illumination	Termination Style	Bushing Thread	Switch Function	Voltage Rating - DC	Current Rating (Amps)	Actuator Type	Circuit	Voltage Rating - AC	Illumination Type, Color	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Illumination Voltage (Nominal)

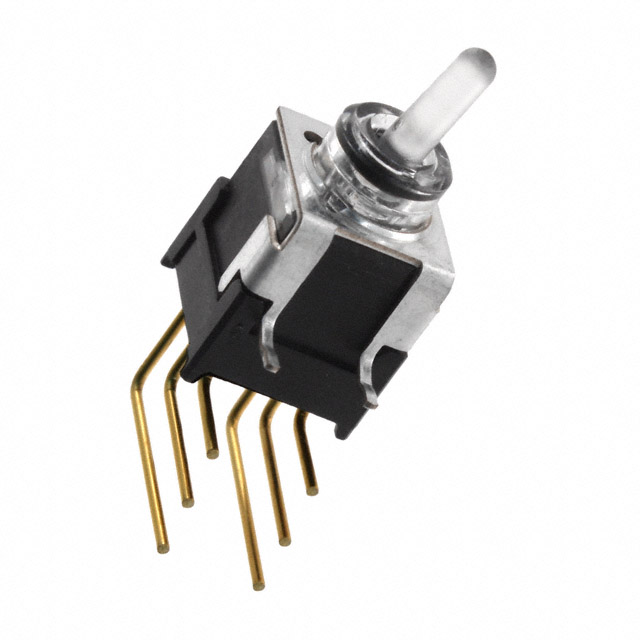

NKK Switches B12JJVC	50000 Cycles	Polyamide (PA) Nylon	6.3 mm	Epoxy Sealed Terminals	Illuminated	PC Pin	Unthreaded	On-On	28 V	0.4 VA	Standard Round	SPDT	28 V	LED Red	55 °C	-25 °C	Right Angle Through Hole Vertical	1.95 VDC
NKK Switches B12JJPD	50000 Cycles	Polyamide (PA) Nylon	6.3 mm	Epoxy Sealed Terminals	Illuminated	PC Pin	Unthreaded	On-On	28 V	0.4 VA	Standard Round	SPDT	28 V	Amber LED	55 °C	-25 °C	Through Hole	2 VDC
NKK Switches B12JJHC	50000 Cycles	Polyamide (PA) Nylon	6.3 mm	Epoxy Sealed Terminals	Illuminated	PC Pin	Unthreaded	On-On	28 V	0.4 VA	Standard Round	SPDT	28 V	LED Red	55 °C	-25 °C	Right Angle Through Hole	1.95 VDC

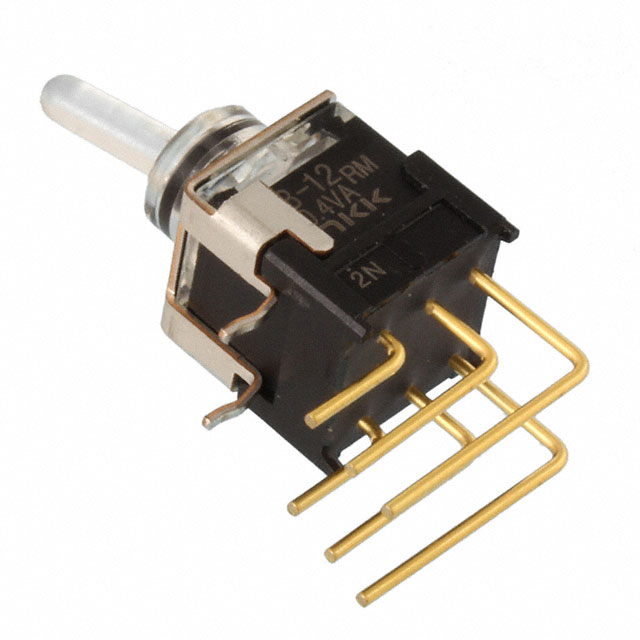

NKK Switches B12JJVCF	50000 Cycles	Polyamide (PA) Nylon	6.3 mm	Epoxy Sealed Terminals	Illuminated	PC Pin	Unthreaded	On-On	28 V	0.4 VA	Standard Round	SPDT	28 V	Green/Red LED	55 °C	-25 °C	Right Angle Through Hole Vertical	1.95 VDC 3.3 VDC
NKK Switches B12JJPCF	50000 Cycles	Polyamide (PA) Nylon	6.3 mm	Epoxy Sealed Terminals	Illuminated	PC Pin	Unthreaded	On-On	28 V	0.4 VA	Standard Round	SPDT	28 V	Green/Red LED	55 °C	-25 °C	Through Hole	1.95 VDC 3.3 VDC

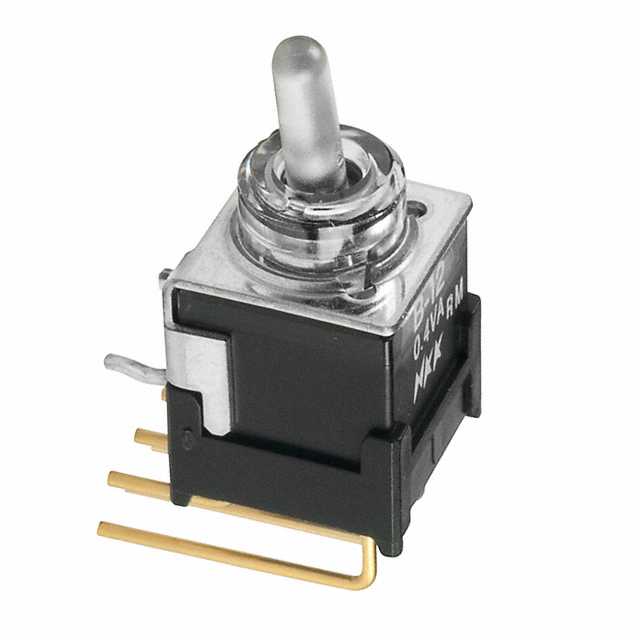

NKK Switches B12JJHCF	50000 Cycles	Polyamide (PA) Nylon	6.3 mm	Epoxy Sealed Terminals	Illuminated	PC Pin	Unthreaded	On-On	28 V	0.4 VA	Standard Round	SPDT	28 V	Green/Red LED	55 °C	-25 °C	Right Angle Through Hole	1.95 VDC 3.3 VDC
NKK Switches B12JJPF	50000 Cycles	Polyamide (PA) Nylon	6.3 mm	Epoxy Sealed Terminals	Illuminated	PC Pin	Unthreaded	On-On	28 V	0.4 VA	Standard Round	SPDT	28 V	Green LED	55 °C	-25 °C	Through Hole	3.3 VDC

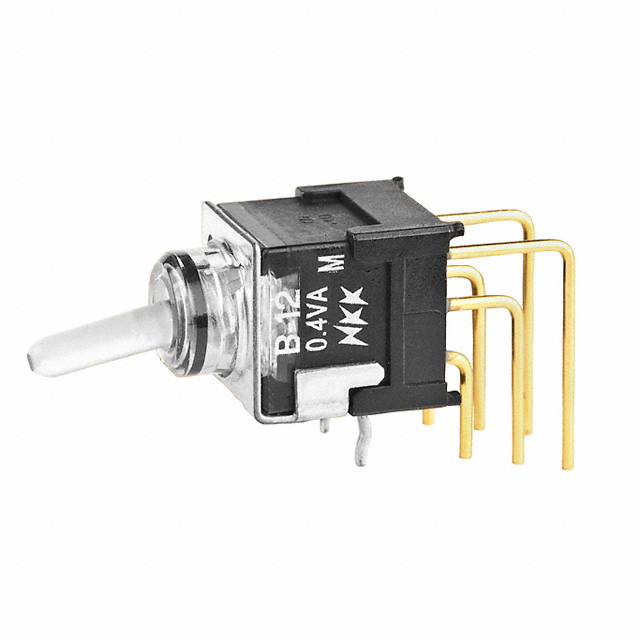

NKK Switches B12JJVF	50000 Cycles	Polyamide (PA) Nylon	6.3 mm	Epoxy Sealed Terminals	Illuminated	PC Pin	Unthreaded	On-On	28 V	0.4 VA	Standard Round	SPDT	28 V	Green LED	55 °C	-25 °C	Right Angle Through Hole Vertical	3.3 VDC
NKK Switches B12JJVD	50000 Cycles	Polyamide (PA) Nylon	6.3 mm	Epoxy Sealed Terminals	Illuminated	PC Pin	Unthreaded	On-On	28 V	0.4 VA	Standard Round	SPDT	28 V	Amber LED	55 °C	-25 °C	Right Angle Through Hole Vertical	2 VDC
NKK Switches B12JJHD	50000 Cycles	Polyamide (PA) Nylon	6.3 mm	Epoxy Sealed Terminals	Illuminated	PC Pin	Unthreaded	On-On	28 V	0.4 VA	Standard Round	SPDT	28 V	Amber LED	55 °C	-25 °C	Right Angle Through Hole	2 VDC
