NPPN222 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HDR 44P 0.079 GOLD PCB R/A

Part	Insulation Material	Contact Finish Thickness - Post	Contact Shape	Contact Material	Number of Positions	Insulation Color	Contact Finish - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Connector Type	Number of Rows [custom]	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Fastening Type	Contact Type	Termination	Insulation Height	Insulation Height [z]	Material Flammability Rating	Number of Positions Loaded	Insulation Height	Contact Length - Post [custom]	Features	Current Rating (Amps)	Insulation Height
Sullins Connector Solutions NPPN222FJFN-RC	Nylon 6T Polyamide (PA6T)	Flash	Square	Phosphor Bronze	44	Black	Gold	Flash	-40 C	105 ░C	0.079 "	2 mm	Gold	0.118 in	3 mm	Header	2	2 mm	0.079 in	Right Angle Through Hole	Push-Pull	Female Socket	Solder	4.85 mm	0.191 in	UL94 V-0	All
Sullins Connector Solutions NPPN222AFEN-RC	Nylon 6T Polyamide (PA6T)	Flash	Square	Phosphor Bronze	44	Black	Gold	Flash	-40 C	105 ░C	0.079 "	2 mm	Gold		2.79 mm	Header	2	2 mm	0.079 in	Through Hole	Push-Pull	Female Socket	Solder	4.3 mm		UL94 V-0	All	0.169 "	0.11 in
Sullins Connector Solutions NPPN222GFNP-RC	Nylon 6T Polyamide (PA6T)	Flash	Square	Phosphor Bronze	44	Black	Gold	Flash	-40 C	105 ░C	0.079 "	2 mm	Gold			Header Top or Bottom Entry	2	2 mm	0.079 in	Surface Mount	Push-Pull	Female Socket	Solder			UL94 V-0	All			Board Guide	2 A
Sullins Connector Solutions NPPN222FFKS-RC	Nylon 6T Polyamide (PA6T)	Flash	Square	Phosphor Bronze	44	Black	Gold	Flash	-40 C	105 ░C	0.079 "	2 mm	Gold			Header	2	2 mm	0.079 in	Surface Mount	Push-Pull	Female Socket	Solder	0.173 in		UL94 V-0	All				2 A	4.4 mm

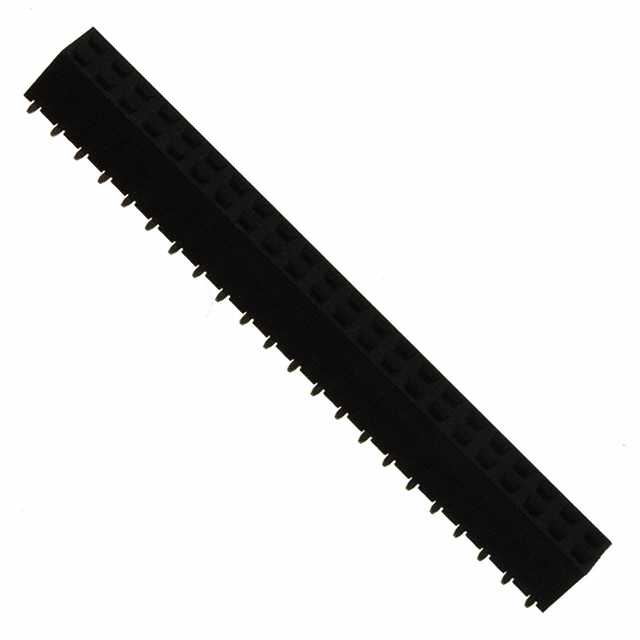

Sullins Connector Solutions NPPN222FFKP-RC	Nylon 6T Polyamide (PA6T)	Flash	Square	Phosphor Bronze	44	Black	Gold	Flash	-40 C	105 ░C	0.079 "	2 mm	Gold			Header	2	2 mm	0.079 in	Surface Mount	Push-Pull	Female Socket	Solder	0.173 in		UL94 V-0	All			Board Guide	2 A	4.4 mm

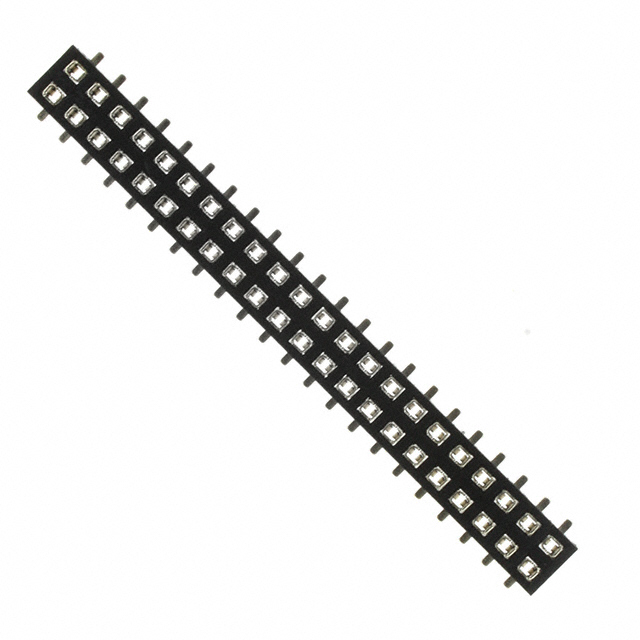

Sullins Connector Solutions NPPN222GHNP-RC	Nylon 6T Polyamide (PA6T)	Flash	Square	Phosphor Bronze	44	Black	Gold	Flash	-40 C	105 ░C	0.079 "	2 mm	Gold			Header Bottom Entry	2	2 mm	0.079 in	Surface Mount	Push-Pull	Female Socket	Solder			UL94 V-0	All			Board Guide
Sullins Connector Solutions NPPN222AFCN-RC	Nylon 6T Polyamide (PA6T)	Flash	Square	Phosphor Bronze	44	Black	Gold	Flash	-40 C	105 ░C	0.079 "	2 mm	Gold	0.094 in	2.4 mm	Header	2	2 mm	0.079 in	Through Hole	Push-Pull	Female Socket	Solder	4.3 mm		UL94 V-0	All	0.169 "
