18R Series

Catalog

INDUCTOR, RADIAL LEADED, 1800R SERIES, 1 MH, 440 MA, 440 MA, 1 OHM, ± 10%

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Inductance Frequency - Test	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)	Operating Temperature [Max]	Q @ Freq	Type	Shielding	Mounting Type	Frequency - Self Resonant	Tolerance	Package / Case	Inductance	Current Rating (Amps)	Q @ Freq [custom]	Q @ Freq [custom]	Supplier Device Package	DC Resistance (DCR)
Murata Electronics 18R105C	13.7 mm	0.539 in	1 kHz	1 Ohm	0.626 in	15.9 mm	70 °C	50 kHz 92	Wirewound	Unshielded	Through Hole	1.82 MHz	10 %	Radial Vertical Cylinder	1 mH	0.44 A
Murata Electronics 18R473C	13.7 mm	0.539 in	1 kHz	55 mOhm	0.626 in	15.9 mm	70 °C	46 500 kHz	Wirewound	Unshielded	Through Hole		10 %	Radial Vertical Cylinder	47 µH	1.65 A

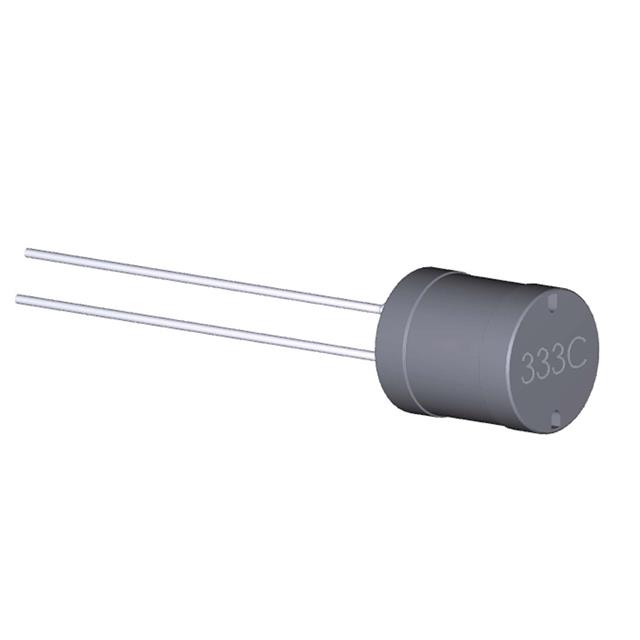

Murata Electronics 18R103C	13.7 mm	0.539 in	1 kHz	15 mOhm	0.626 in	15.9 mm	70 °C		Wirewound	Unshielded	Through Hole	23.8 MHz	10 %	Radial Vertical Cylinder	10 µH	3.45 A	59	500 kHz
Murata Electronics 18R154C	13.7 mm	0.539 in	1 kHz	165 mOhm	0.626 in	15.9 mm	70 °C	40 100 kHz	Wirewound	Unshielded	Through Hole	5.58 MHz	10 %	Radial Vertical Cylinder	150 µH	1.1 A
Murata Electronics 18R254C	13.7 mm	0.539 in	1 kHz	255 mOhm	0.626 in	15.9 mm	70 °C	40 100 kHz	Wirewound	Unshielded	Through Hole	3.85 MHz	10 %	Radial Vertical Cylinder	250 µH	800 mA			Radial Lead
Murata Electronics 18R106C	13.7 mm	0.539 in	1 kHz	12 Ohm	0.626 in	15.9 mm	70 °C		Wirewound	Unshielded	Through Hole		10 %	Radial Vertical Cylinder	10 mH	130 mA	142	40 kHz	Radial Lead
Murata Electronics 18R153C	13.7 mm	0.539 in	1 kHz	18 mOhm	0.626 in	15.9 mm	70 °C	55 500 kHz	Wirewound	Unshielded	Through Hole	17 MHz	10 %	Radial Vertical Cylinder	15 µH	3 A			Radial Lead
Murata Electronics 18R104C	13.7 mm	0.539 in	1 kHz		0.626 in	15.9 mm	70 °C	40 100 kHz	Wirewound	Unshielded	Through Hole	7.4 MHz	10 %	Radial Vertical Cylinder	100 µH	1.2 A				100 mOhm
Murata Electronics 18R475C	13.7 mm	0.539 in	1 kHz	4.6 Ohm	0.626 in	15.9 mm	70 °C	40 kHz 126	Wirewound	Unshielded	Through Hole	870 kHz	10 %	Radial Vertical Cylinder	4.7 mH	0.2 A			Radial Lead
Murata Electronics 18R682C	13.7 mm	0.539 in	1 kHz	12 mOhm	0.626 in	15.9 mm	70 °C	73 500 kHz	Wirewound	Unshielded	Through Hole	26.3 MHz	10 %	Radial Vertical Cylinder	6.8 µH	4.15 A			Radial Lead
