9158S Series
Manufacturer: ALPHA WIRE
Beta
⌘K

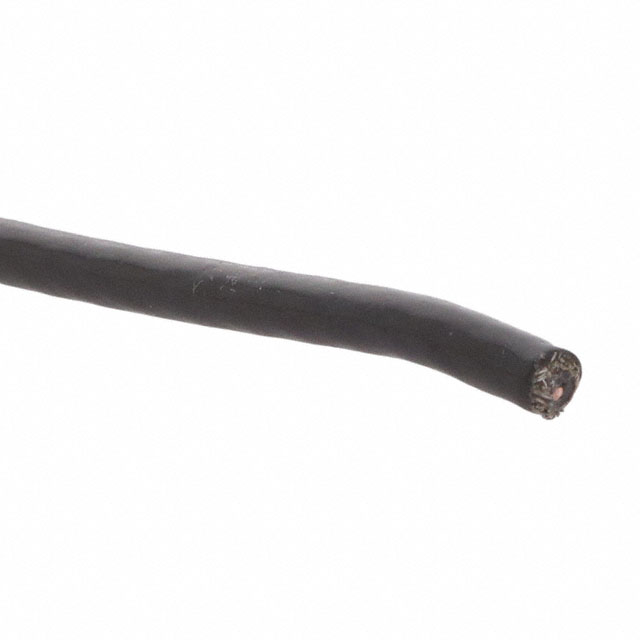

CABLE COAXIAL RG58 20AWG 50'
| Part | Impedance | Length | Length | Cable Group | Conductor Material | Dielectric Material | Conductor Strand | Jacket Color | Wire Gauge | Shield Material | Shield Type | Shield Coverage | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | VoP, Velocity of Propagation | Length [x] | Length [x] | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Material | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 50 Ohms | 15.24 m 152.4 m 304.8 m | 50 ft 1000 ft 6000 in | RG-58 | Copper Bare | Fluorinated Ethylene-Propylene (FEP®) | Solid | Black | 20 AWG | Copper Tinned | Braid | 95 % | 2.72 mm | 0.107 in | 4.04 mm | 0.159 in | 70 | 100 ft | 30.48 m | 200 °C | -70 °C | Fluorinated Ethylene-Propylene (FEP) | Coaxial |
