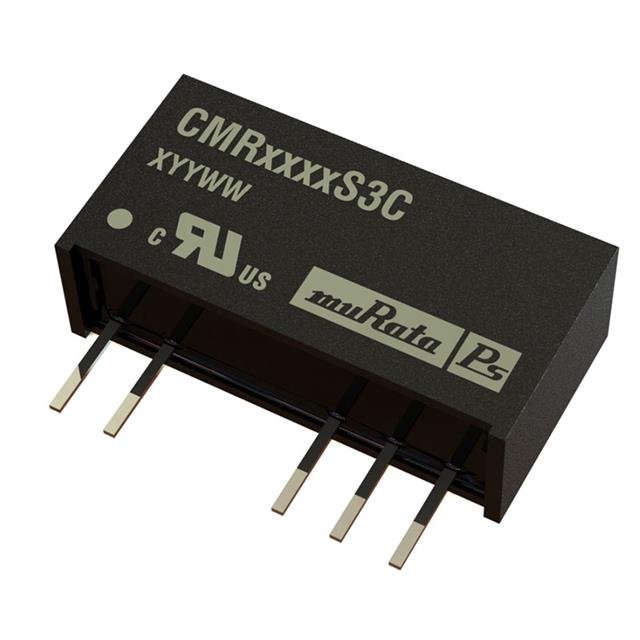

CMR Series
Manufacturer: Murata Electronics
Beta
⌘K
ISOLATED BOARD MOUNT DC/DC CONVERTER, SIP, FIXED, THROUGH HOLE, 750 MW, 5 V, 150 MA ROHS COMPLIANT: YES
| Part | Voltage - Output 1 | Current - Output (Max) [Max] | Type | Power (Watts) | Voltage - Isolation | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Number of Outputs | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Package / Case | Efficiency | Mounting Type | Current - Output (Max) | Voltage - Output 2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Murata Electronics | 5 V | 150 mA | Isolated Module | 0.75 W | 3000 V | 4.5 V | 5.5 V | 85 °C | -40 C | ITE (Commercial) | 1 | 6 mm | 19.5 mm | 0.24 " | 0.39 " | 10 mm | 0.77 in | 7-SIP Module 4 Leads | 68 % | Through Hole | ||
 Murata Electronics | 15 V | Isolated Module | 0.75 W | 3000 V | 4.5 V | 5.5 V | 85 °C | -40 C | ITE (Commercial) | 2 | 6 mm | 19.5 mm | 0.24 " | 0.39 " | 10 mm | 0.77 in | 7-SIP Module 5 Leads | 79 % | Through Hole | 25 mA | -15 V |
