19390160 Series
Manufacturer: HARTING
Beta
⌘K
16B HP SCREW DOWN HOOD, TOP ENTRY, M32
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Lock Location | Connector Type | Ingress Protection | Housing Material | Size | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Housing Finish | Housing Color | Thread Size | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

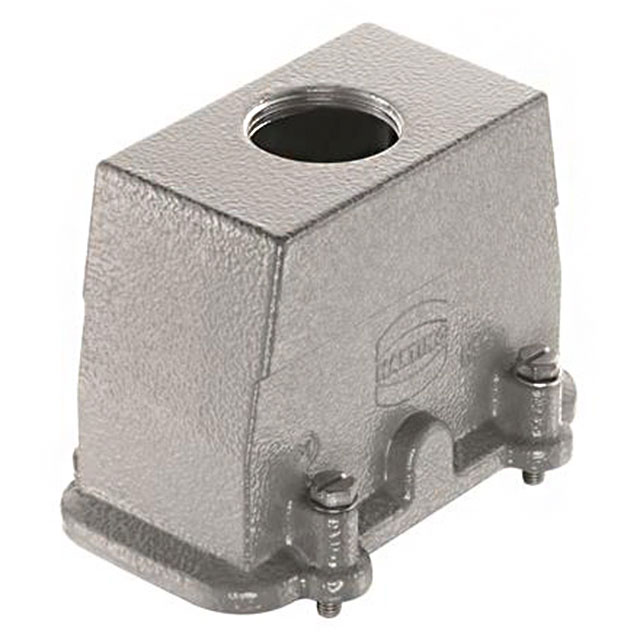

 HARTING | 125 °C | -40 C | Screw Locks on Hood | Hood | IP66 IP68 IP69K | Aluminum Die Cast | 16 B | 2.795 " | 106.5 mm | 2.929 " | 74.4 mm | 4.193 in | 71 mm | Powder Coated | Gray | M32 | Top Entry |

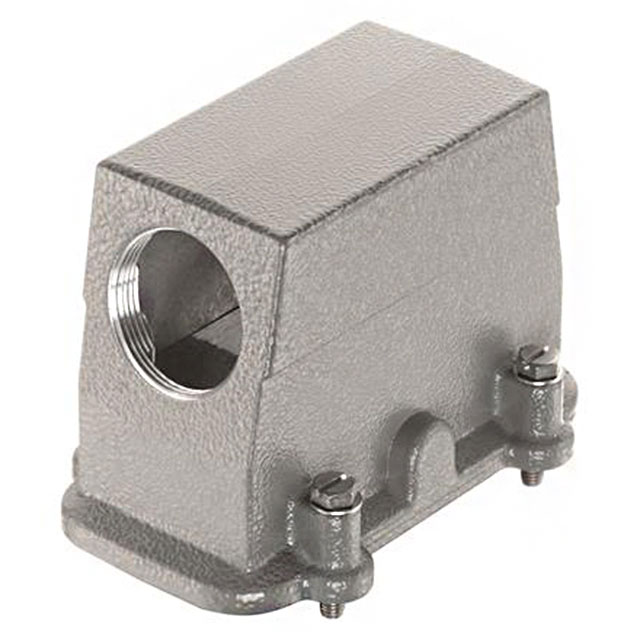

 HARTING | 125 °C | -40 C | Screw Locks on Hood | Hood | IP66 IP68 IP69K | Aluminum Die Cast | 16 B | 2.795 " | 106.5 mm | 2.953 " | 75 mm | 4.193 in | 71 mm | Powder Coated | Gray | M32 | Side Entry |

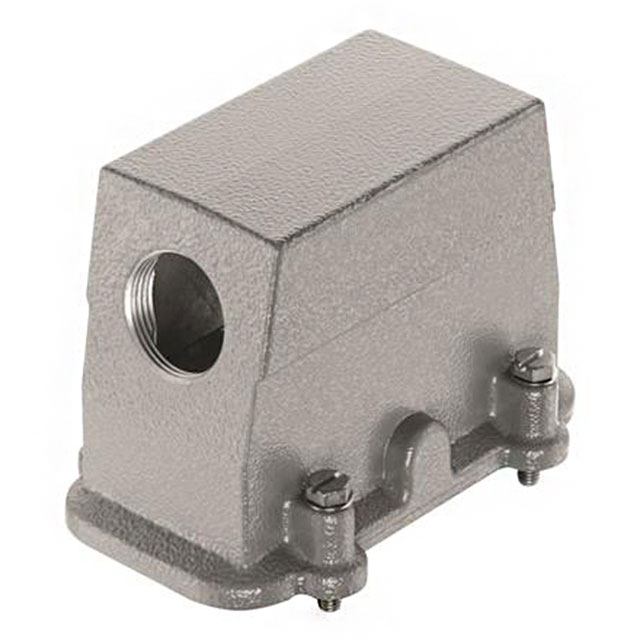

 HARTING | 125 °C | -40 C | Screw Locks on Hood | Hood | IP66 IP68 IP69K | Aluminum Die Cast | 16 B | 2.795 " | 106.5 mm | 2.953 " | 75 mm | 4.193 in | 71 mm | Powder Coated | Gray | M25 | Side Entry |
